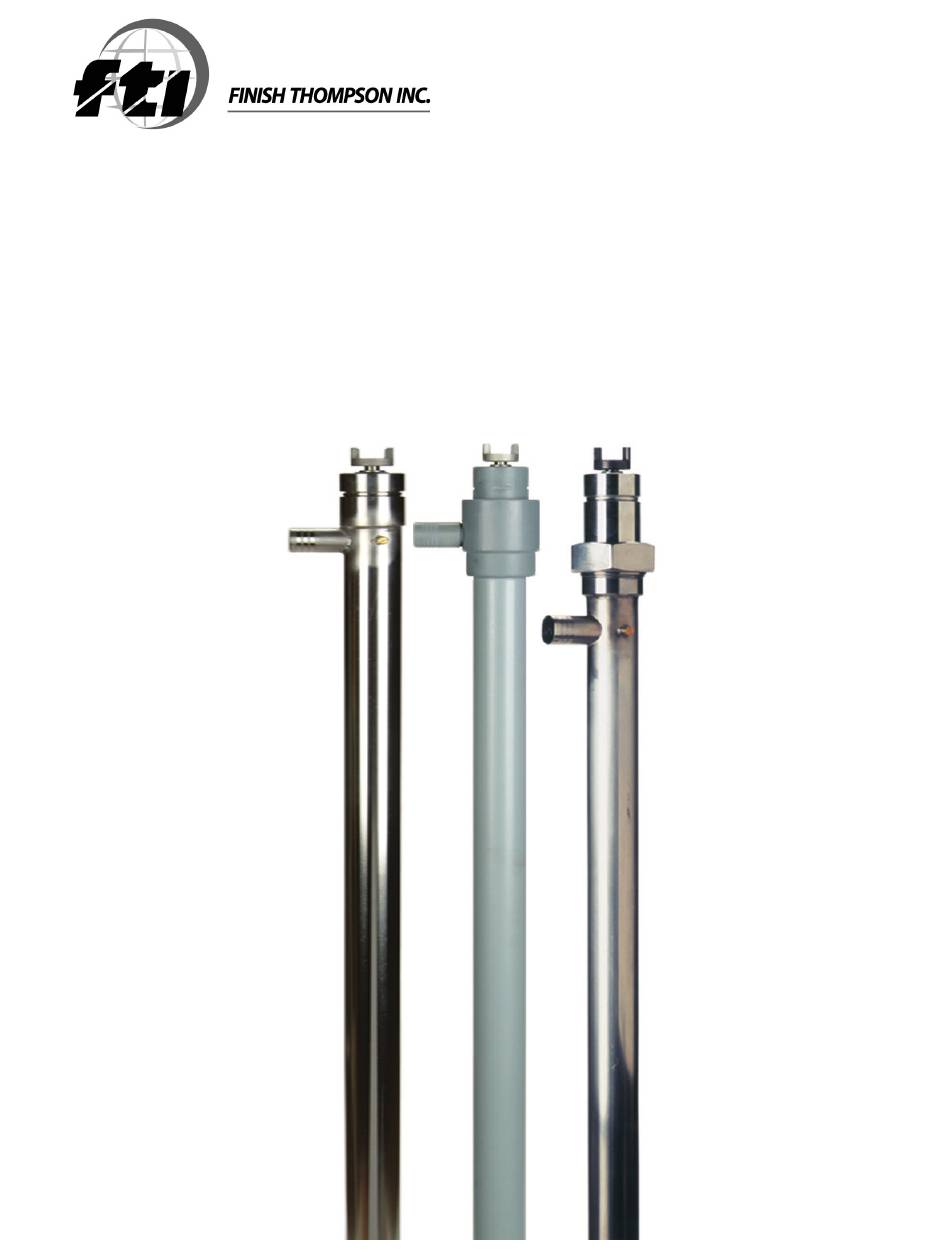

- Page 1 TT SERIES PUMPS TTS, TTC, & STTS OPERATION & PARTS MANUAL 108102 R7...
- Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the drive motor for the centrifugal pump complies with the provisions of all relevant EU Directives.
- Page 3 Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified be the UKCA Directives listed. The product may not be taken into service until it has been established that the drive motor for the Drum and Container Pump complies with the provisions of all relevant UKCA Directives.
-
Page 4: Table Of Contents
Introduction This manual pertains to the TT Series drum pumps and accessories. Finish Thompson Inc. thanks you for choosing our products. We believe the use of our products will be fully satisfactory. When properly installed and operated, your Finish Thompson motor and pump will provide long, trouble- free service;... -
Page 5: Warranty, General Terms & Conditions
Warranty, General Terms & Conditions Finish Thompson, Inc (manufacturer) warrants this pump product to be free of defects in materials and workmanship for a period of one year from date of purchase by original purchaser. If a warranted defect, which is determined by manufacturer’s inspection, occurs within this period, it will be repaired or replaced at the manufacturer’s option, provided (1) the product is submitted with proof of purchase date and (2) transportation charges are prepaid to the manufacturer. -
Page 6: Safety
Safety 1. Introduction This manual contains all the information needed for the correct installation, use and maintenance of your new Finish Thompson pump and accessories. It should be read and understood by all the personnel involved in installation, operating and servicing of the pump before it is started. -
Page 7: Important Safety Information For Pumping Flammable Or Hazardous Substances
IMPORTANT SAFETY INFORMATION FOR PUMPING FLAMMABLE OR HAZARDOUS SUBSTANCES Read these instructions before operating the pump and motor equipment. The manufacturer will not be responsible for any damage to property or to persons caused by improper use of the equipment. WARNING: It is the responsibility of the user to operate the pump in conformance with OSHA rules for dispensing liquids. -
Page 8: Pump Specifications
PUMP SPECIFICATIONS MODEL TTS MODEL TTC MODEL STTS Outer Tube Diameter 1-1/2” (3.8 cm) 1-5/8” (4.1 cm) 1-1/2” (3.8 cm) Discharge Thread 1” hose barb 1” hose barb 1” hose barb Max. Specific Gravity Max. Viscosity* 2000 cP 2000 cP 2000 cP -20°F Min. -
Page 9: Installation
Installation, Operation, & Maintenance Instructions Installation 1. Remove the drum pump and motor from the packaging and inspect for shipping damage. Turn the pump coupling the mating motor coupling to verify there is no binding. 2. Adjust the drum pump coupling so that the empty slots in the insert are at 3 and 9 o’clock with the drum pump discharge at 12 o’clock. -
Page 10: Inspection
4. Then use a 1/8” punch to drive out the roll pin that holds the bearing onto the top of the pump shaft. Remove the bearing from the pump shaft, and remove shaft assemble down through the bottom of the intake tube. On STTS models, pull the shaft assembly down out of the bearing housing. -
Page 11: Exploded View Tts/Ttc
TTC/TTS SPARE PARTS EXPLODED VIEW... - Page 12 TTS/TTC SPARE PARTS LIST ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF J100013 BEARING ASSEMBLY W/ ROLL PIN A101672 SEAL ASSEMBLY PTFE A100284 LOCK WASHER #8 BRASS (TTS ONLY) J100823 SCREW #8-32 X 1/4 BRASS PAN HEAD M/S (TTS ONLY) J100822 INTAKE TUBE ASSEMBLY 27”...
-
Page 13: Stts
STTS SPARE PARTS EXPLODED VIEW... -
Page 14: Stts
STTS SPARE PARTS LIST ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF J100013 BEARING ASSEMBLY WITH ROLL PIN A101672 SEAL ASSEMBLY PTFE - FDA COMPLIANT 108401 UNION NUT 316 STAINLESS STEEL J100083 BEARING HOUSING 316 STAINLESS STEEL M100078 UNION NUT GASKET NEOPRENE - FDA COMPLIANT J100084 LOCK WASHER... -
Page 15: Troubleshooting
DRUM PUMP TROUBLESHOOTING General Notes: • Do not pump liquids containing metallic particles or other foreign material. • Always store the pump upright as used. • Contact our Technical Service Department at 1-800-888-3743 or by email at techservice@finishthompson.com if you have any questions regarding product operation or repair.
