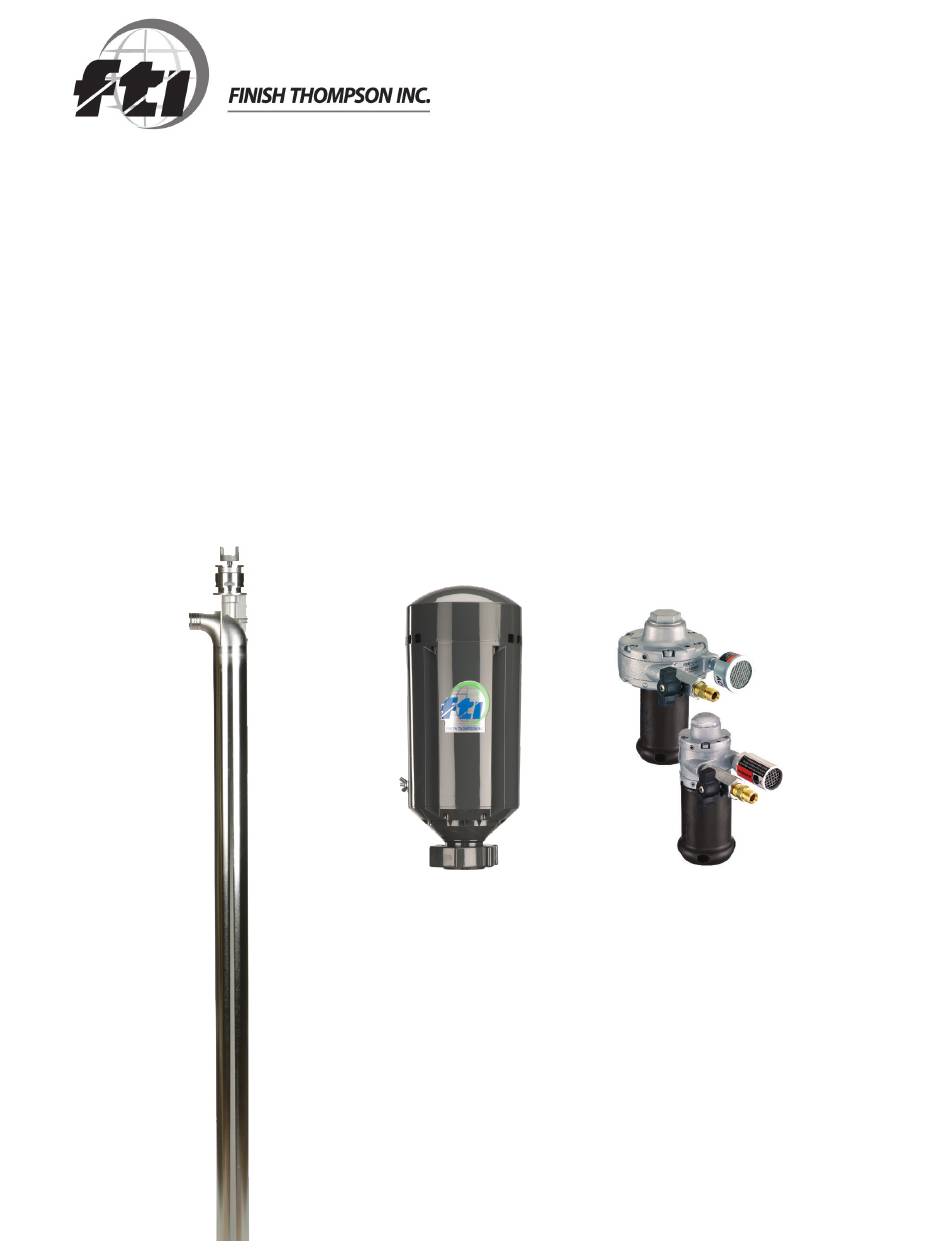

- Page 1 PF SERIES PUMPS PFS ATEX VERSION (for use with M5XV, M5XV-HT, M6A, & M6XA MOTORS) OPERATION & PARTS MANUAL P/N: 105619 R21...
-
Page 2: Table Of Contents
Disassembly ........................8 Inspection ........................... 9 Reassembly ........................9 Exploded View ......................... 10 PFS ATEX Pump Spare Parts List ....................11 M6A Spare Parts List & View ....................12 M6XA Spare Parts List & View ....................13 ATEX Certificates ........................14 EC Certificates of Conformity .................... -
Page 3: Warranty, General Terms & Conditions
Warranty, General Terms & Conditions The following terms and conditions apply to the sale of machinery, components and related services and products, of Finish Thompson Inc. (hereinafter “the products”) Finish Thompson Inc. (the manufacturer) warrants only that: a) its products are free of defects in material, design and workmanship at the time of original purchase; b) its products will function in accordance with Finish Thompson Inc. -
Page 4: Safety
GENERAL DANGER ALWAYS use a model PFS ATEX pump tube with an appropriate Finish Thompson ATEX certified motor. ALWAYS use a conductive grounded discharge hose and grounding wire according to these instructions under the section below titled “Static Protection Kit Assembly.”... - Page 5 Safety Continued ALWAYS check bearings and coupling insert for signs of overheating, abnormal noise or other signs of premature failure on a daily basis. Bearings and coupling insert should be replaced at the first sign of failure. ALWAYS when using an air motor, use an automatic airline lubricator, moisture trap, and filter in the airline before the motor (use SAE#10 oil in the lubricator).
-
Page 6: Pump Specifications
PUMP SPECIFICATIONS MODEL PFS ATEX MODEL PFS ATEX FKM Outer Tube Diameter 2” (51 mm) Discharge Type 1” hose barb Max. Specific Gravity 1.83 Max. Viscosity 500 cP 5°F Min. to 220°F Max. Min./ Max. Fluid Temperature 21°C Min. to 105°C Max. -
Page 7: Atex Specifications
ATEX COMPLIANCE The FTI PFS drum pump has been designed for use in hazardous environments. It meets the requirements set forth by EU directive 2014/34/EU. This pump is designed to operate in zone 0 where explosive atmospheres are present. All three components (drum pump tube, motor and Static Protection Kit) must be properly installed. -
Page 8: Pfs Installation
Installation, Assembly & Maintenance Instructions PFS Installation Installation 1. Remove the drum pump and motor from its packaging and inspect for shipping damage. 2. Spin the pump coupling to verify there is no binding. Verify that the black rubber coupling insert is firmly seated in the metal pump coupling. -
Page 9: Disassembly
Ground wire attachment to motors: Electric Explosion Proof: 1. Screw #10-32 plated nut onto exposed machine screw in motor housing. 2. Attach #10 ring terminal from the end of the ground wire assembly to exposed machine screw in motor housing using #10-32 plated nut and #10 lock washer. Air Motor: 1. -
Page 10: Inspection
Inspection 1. Check the housing cover (item 16), the impeller (item 15), and the impeller housing (item 13) for wear, rub- bing, or damage from foreign objects. Replace if damaged. Note: The double impeller design of this pump is dependant on the impeller working correctly. Any damage to the impeller can cause pump failure. -
Page 11: Exploded View
PFS ATEX SPARE PARTS EXPLODED VIEW... -
Page 12: Pfs Atex Pump Spare Parts List
PUMP SPARE PARTS LIST ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF CAST ALUMINUM 1/4”-20 THREAD FOR S/N 211770 & UP J100012-2 BEARING ASSEMBLY (INCLUDES COUPLING HALF) A101110 LIP SEAL 1/4” PTFE 110982 1/4” FKM 110983 LOCK WASHER #8 BRASS J100823 SCREW #8-32 X 1/4 BRASS PAN HEAD... -
Page 13: M6A Spare Parts List & View
M6A AIR MOTOR SPARE PARTS LIST & VIEW ITEM DESCRIPTION PART NUMBER AIR MOTOR M101717 PIPE NIPPLE J100107 HEX REDUCER BUSHING J100057 BALL VALVE J100073 HOSE FITTING J100036 MUFFLER J100033 SET SCREW J100040 AIR MOTOR MOUNT M100013-3 CAP SCREW SOCKET HEAD 108392 J100024 HALF COUPLING... -
Page 14: M6Xa Spare Parts List & View
M6XA AIR MOTOR SPARE PARTS LIST & VIEW ITEM DESCRIPTION PART NUMBER AIR MOTOR M101720 PIPE NIPPLE J102463 BALL VALVE J100073 HOSE FITTING J100036 MUFFLER J100074 SET SCREW J100040 AIR MOTOR MOUNT M100013-4 CAP SCREW SOCKET HEAD 108392 J100024 HALF COUPLING J101500 LUBRICATOR J100035... -
Page 16: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Finish Thompson Inc. hereby declares that the following machines fully comply with the applicable health and safety requirements as specified by the EU Directives listed. This declaration is valid provided that the devices are fully assembled and no modifications are made to these machines. Type of Device: Drum or Container Pump Pump Models:... - Page 17 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following electrical equipment fully complies with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the driven Drum and Container Pump complies with the provisions of all relevant EU Directives.
- Page 18 EU DECLARATION OF CONFORMITY Finish Thompson Inc. hereby declares that the following machines fully comply with the applicable health and safety requirements as specified by the EU Directives listed: Type of Device: Pump Motor Pump Motor Models: M6A, M6XA EU Directives: Equipment and Protective Systems Intended For Use In Potentially Explosive Atmospheres (2014/34/EU) Applicable Harmonized Standards:...
