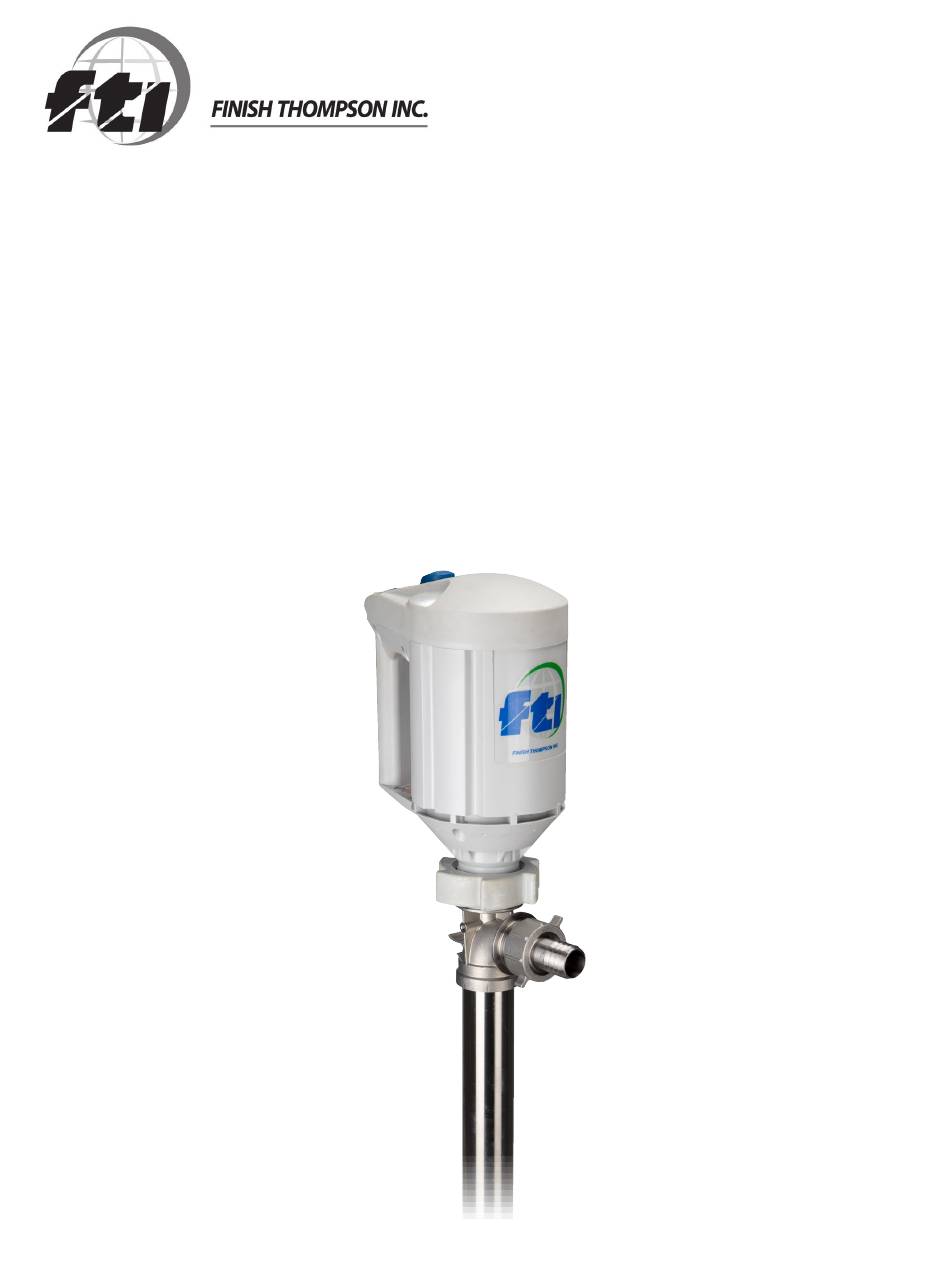

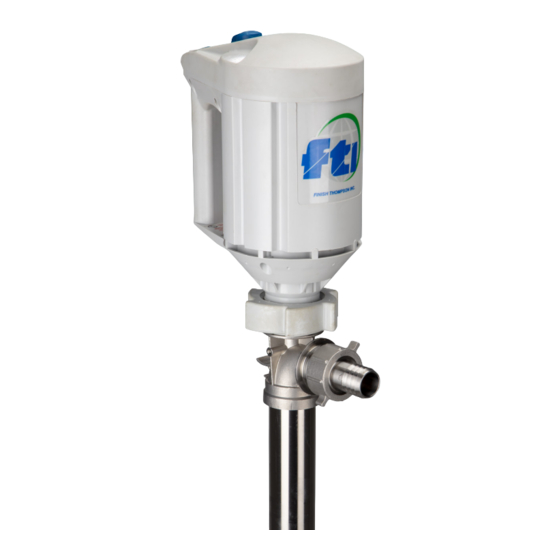

- Page 1 SFS SERIES PUMPS SFS & SFS-H MODELS OPERATION & PARTS MANUAL P/N 111522...
- Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the drive motor for the Drum and Container Pump complies with the provisions of all relevant EU Directives.
-
Page 3: Table Of Contents
Introduction This manual pertains to the SFS Series drum pumps and accessories. Finish Thompson Inc. thanks you for choosing our products. We believe the use of our products will be fully satisfactory. When properly installed and operated, your Finish Thompson motor and pump will provide long, trouble-free service;... -
Page 4: Warranty, General Terms & Conditions
Warranty, General Terms & Conditions Finish Thompson, Inc (manufacturer) warrants this pump product to be free of defects in materials and workmanship for a period of one year from date of purchase by original purchaser. If a warranted defect, which is determined by manufacturer’s inspection, occurs within this period, it will be repaired or replaced at the manufacturer’s option, provided (1) the product is submitted with proof of purchase date and (2) transportation charges are prepaid to the manufacturer. -
Page 5: Safety
Safety 1. Introduction This manual contains all the information needed for the correct installation, use and maintenance of your new Finish Thompson pump and accessories. It should be read and understood by all the personnel involved in installation, operating and servicing of the pump before it is started. 2. -
Page 6: Important Safety Information For Pumping Flammable Or Hazardous Substances
IMPORTANT SAFETY INFORMATION FOR PUMPING FLAMMABLE OR HAZARDOUS SUBSTANCES Read these instructions before operating the pump and motor equipment. The manufacturer will not be responsible for any damage to property or to persons caused by improper use of the equipment. WARNING: It is the responsibility of the user to operate the pump in conformance with OSHA rules for dispensing liquids. -
Page 7: Specifications & Dimensions
PUMP SPECIFICATIONS Impeller Type High Flow (standard offering) or High Head "-H" 1" (DN 25 (25MM)) Barb Discharge Spout 1" BSPP Thread (Model -BSP) 1" NPT Thread (Model -MT) 1" Tri-Clamp Fitting (Model -TC) (standard) Discharge Attachment 1-1/4" BSPP Thread Outer Tube Diameter 1-5/8"... -
Page 8: Operation
OPERATION 1. Make sure the motor (electric or air) is properly installed on the pump tube and is in the off position. See motor instruction manual for installation instructions. 2. Insert the pump tube into the fluid to be dispensed and the hose into the container to be filled prior to starting the pump. Bung adapters are available to provide a tighter fit between the pump tube and bung opening of a standard drum. -
Page 9: Disassembly
DISASSEMBLY & REASSEMBLY INSTRUCTIONS Disassembly 1. Cover, Impeller, & Diffuser Removal - Unthread the diffuser cover (item 22 or 23). Turn it clockwise (left-hand thread). See Figure 1 A & B. Unthread the impeller (item 20 or 21) turning it counter clockwise (right hand thread) using your hand while holding the coupling insert and coupling (items 1 &... - Page 10 Disassembly Continued 3. Intake Tube Removal - Unthread the diffuser (item 18) turning it clockwise (left-hand thread). The shaft sleeve (item 15) will drop out of the inner tube by holding it in a vertical position. Remove the intake tube (item 16). Hold the head (item 6) in one hand and with the other hand, turn the intake tube clockwise (left-hand thread).
-
Page 11: Reassembly
Reassembly 1. Seal Installation - Take the head (item 6), and install a new seal (item 5). It is recommended to lubricate the seal with a compatible lubricant or water prior to pressing it in. Insert the open part of the seal into the lower bore of the head. Use a 7/16” (12 mm) dowel to press and seat the seal into place. - Page 12 Reassembly Continued 5. Shaft Installation - Slide the shaft down through the seal until the bearing engages the bearing bore in the head. Set the half coupling on the floor and push the pump down using the intake tube (item 16) for leveridge.
-
Page 13: Exploded View - Sfs Pump Tube
SFS SERIES PUMP EXPLODED VIEW REVISIONS REV DESCRIPTION PRODUCT RELEASE CHG ITEMS TO 8A, 8B, 8C, 8D UNLESS OTHERWISE SPECIFIED DISTRIBUTION BLOCK DIMENSIONS ARE IN INCHES DEPT DEPT 921 GREENG REC'D REC'D TOLERANCES ARE: ERIE, PENNS... -
Page 14: Pump Tube Spare Parts List
PUMP SPARE PARTS LIST PART NUMBER ITEM DESCRIPTION MODEL SFS MODEL SFS-H COUPLING INSERT RUBBER J100014 COUPLING HALF ALUMINUM 111530 BEARING STEEL 111057 SHAFT (316 STAINLESS STEEL) 27” 111202-1 40” 111202-3 48” 111202-5 54” 111202-7 60” 111202-9 72” 111202-11 SEAL FKM (STANDARD) 107592 PTFE (OPTIONAL) - Page 15 PUMP SPARE PARTS LIST PART NUMBER ITEM DESCRIPTION MODEL SFS MODEL SFS-H O-RING, INNER TUBE FKM (STANDARD) J100018 FFKM (-FF MODELS) 111511 FDA FFKM (-P MODELS) 105620 FDA BUNA (-B MODELS) 108197 INNER TUBE (316 STAINLESS STEEL) 27” 107616-1 40” 107616-2 48”...
- Page 16 PUMP SPARE PARTS LIST PART NUMBER ITEM DESCRIPTION MODEL SFM IMPELLER - HIGH HEAD (FOR USE WITH "DIFFFUSER COVER - HIGH HEAD") CFF ETFE (STANDARD) 111211-3 PURE ETFE (FOR MODELS ENDING IN -P OR -B) 111211-2 DIFFUSER COVER - HIGH FLOW 316 STAINLESS STEEL 111519 DIFFUSER COVER - HIGH HEAD...
