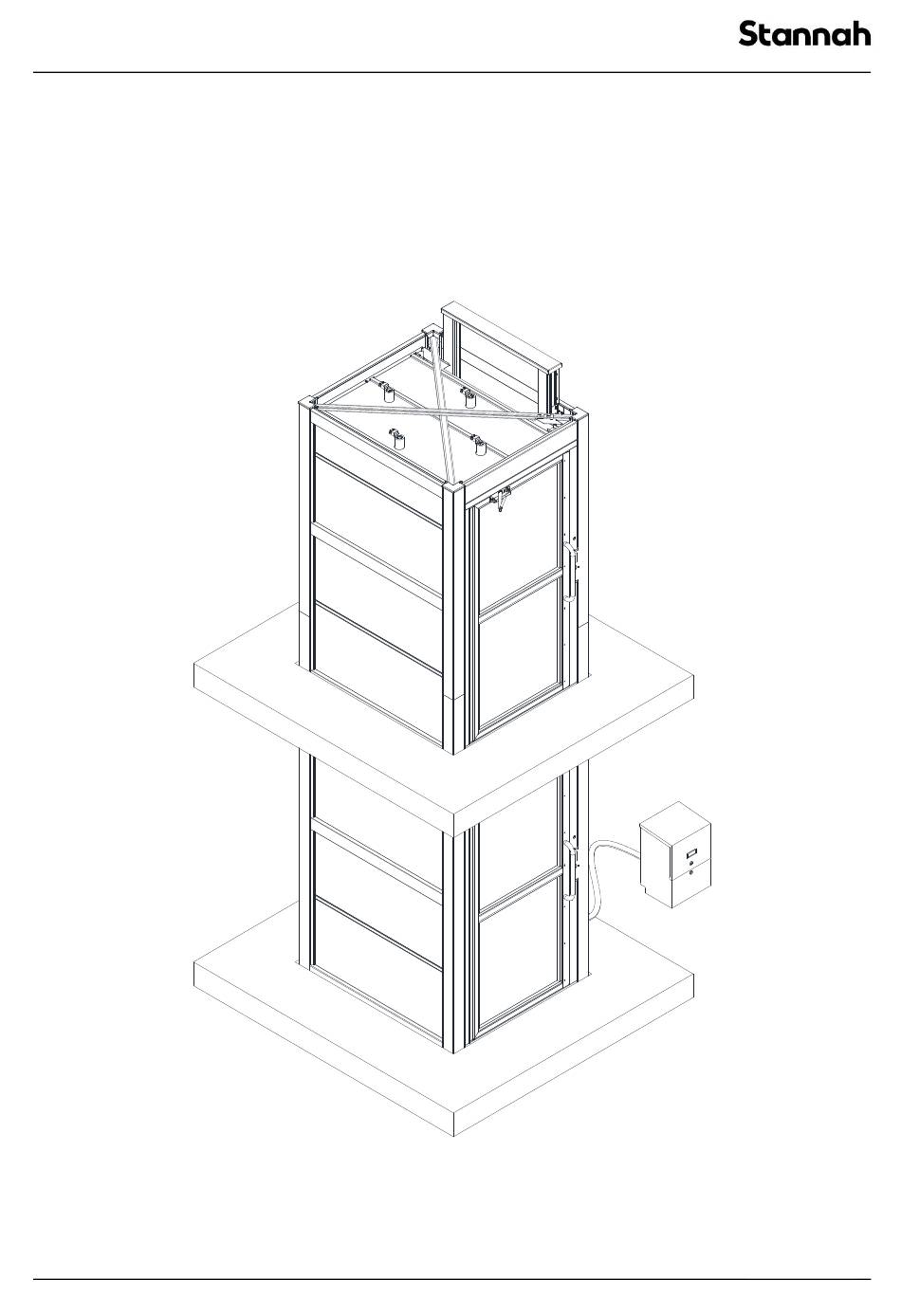

Midilift SL
Installation Guide
Midilift SL Installation Guide
1
January 2023
Version 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Midilift SL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stannah Midilift SL

Summary of Contents for Stannah Midilift SL

  • Page 1 Midilift SL Installation Guide Midilift SL Installation Guide January 2023 Version 16...

  • Page 2: Table Of Contents

    Midilift SL Installation Guide Contents ............................. 1 Introduction .......................... 4 SITE REQUIREMENTS & TOOLS ..................5 Site Arrival ........................5 Installation tools ......................6 MAIN FRAME ASSEMBLY....................8 Lift base ........................8 Corner upright preparation ..................9 Door frame ........................ 10 Shaft panels ......................
  • Page 3 Midilift SL Installation Guide Multi-stop Encoder and OPS switch (up to 5m travel)..........37 HALF HEIGHT GATE ....................38 10.1 Half height gate assembly ..................38 10.2 Fitting of gate to frame ................... 39 DOOR & GATE CLOSERS ..................40 11.1...

  • Page 4: Introduction

    Introduction The intention of this document is to provide information for the correct installation of the Stannah Midilift SL, highlighting key points and safety procedures and to ensure that the final product runs safely, smoothly and efficiently. This manual should be read in conjunction with the electrical wiring manual, the specific General Arrangement Drawing and the Builder's Work Drawing.

  • Page 5: Site Requirements & Tools

    Midilift SL Installation Guide SITE REQUIREMENTS & TOOLS Site Arrival On arrival at the site, the installer should make his presence known to the customer. The installer must comply with any site safety procedures and regulations that are in force.

  • Page 6: Installation Tools

    Midilift SL Installation Guide Installation tools Before using any of the installation tools, it is important to check for damage / corrosion to ensure that each tool is safe to use. Description Fig. Plumb lines Temporary work platform Electric hoist (500Kg)
  • Page 7 Midilift SL Installation Guide Installers DDU & speaker box Ram bleeding kit (bleed stud + hose) Quick release coupling (to bleed ½” BSP hose) Upper bracket for Work Platform (3 stage ram install) Lower bracket for Work Platform (3 stage ram install)

  • Page 8: Main Frame Assembly

    Midilift SL Installation Guide MAIN FRAME ASSEMBLY Lift base Lay out the lower horizontal members close to the final position See door frame for specific fixing locations Fix using 3 M8 fixings 3 positions (equa spaced) Secure corner uprights to...

  • Page 9: Corner Upright Preparation

    Midilift SL Installation Guide Corner upright preparation Before fitting door frame take approx measurement from top of door threshold to centre of slot, apply this measurement to the corner upright (call station side) and pick next nearest hole. Enlarge hole with step drill and de-burr. This is to allow cables to pass from the corner upright into the door frame freely (see below).

  • Page 10: Door Frame

    Midilift SL Installation Guide Door frame Door threshold to be set at 70mm from base View A View B M8 fixings (2 pos.) Frame spacer (both sides) Note: repeat this process Fixing plate for upper door threshold View C M8 fixing View D 5.5 x 19 self...

  • Page 11: Shaft Panels

    Midilift SL Installation Guide Shaft panels Slide the shaft panels and ‘H’ sections between the corner uprights. Fit horizontal members and secure with M8 fixings. Note: ram support horizontal member is identifiable by 2 fixing holes which must be positioned off to the left by 50mm.

  • Page 12: Cable Route Panel

    Midilift SL Installation Guide 2.5 Cable Route Panel Fit the cable route panel as shown with the opening to the right of the guides This panel position changes per lift travel. Check Builders Work drawings for correct position January 2023...

  • Page 13: Ramp (If Required)

    Midilift SL Installation Guide Ramp (if required) Loosely fit 3 M8x16 fixings to underside of door threshold, slide ramp in and tighten. 3 off M8 fixings January 2023 Version 16...

  • Page 14: Cut Panels For Upper Door

    Midilift SL Installation Guide Cut panels for upper door Following the diagram cut two lengths of extrusion and fit to corner uprights. Cut panel and slide into extrusion. Fit door as shown in 2.1 & 2.2. View A Fit door infill plate...

  • Page 15: Door Infill Angle/Plate (If Required)

    Midilift SL Installation Guide Door infill angle/plate (if required) Before fitting upper doors check to see if a door infill angle/plate is required. The angle on its own will span a gap of up to 20mm, whilst the extended plate can do up to 100mm.

  • Page 16: Guide & Carriage

    Midilift SL Installation Guide GUIDE & CARRIAGE Guides Fit both guides to guide support bracket using M8 Halfen fixings. View A Use M8 halfen fixings January 2023 Version 16...

  • Page 17: Pit Prop

    Midilift SL Installation Guide Pit prop Place pit prop on the double prongs situated next to the left hand guide, push pit prop back against guides and fit latch. Ensure that once the latch is released the prop ‘falls’ into the engaged poison.

  • Page 18: Carriage & Ram

    Midilift SL Installation Guide Carriage & ram Fit the left hand guide only and remove the right hand guide fixing angle from the Horizontal member. Fit the ram and support bracket. Stand the carriage next to the guide. Slide the rollers on the left hand side of the carriage into the left guide and lift carriage over the ram.

  • Page 19: Kicker Roller Shims

    Midilift SL Installation Guide Kicker Roller Shims The kicker rollers should be adjusted using shims so the carriage runs centrally within the guides. This adjustment should initially be carried out as soon as the weight of the carriage is taken by the ram. However final adjustment of the shims must also be carried out following completion of the installation, when the platform is fitted and the guides have been installed in their entirety.

  • Page 20: Cable Connection Bracket (With Pcb)

    Midilift SL Installation Guide Cable Connection Bracket (with PCB) Mount the cable connection bracket (with PCB attached) to the back of right hand guide, approximately 1m from the ground as shown. Feed cables through holes in the structure to the landing calls and door locks.

  • Page 21: Base Fixings

    Midilift SL Installation Guide Base fixings After ensuring that the lift enclosure is correctly positioned, square and plumb, secure the base of each corner upright to floor of the building with the supplied fixings. Tighten each fixing to a torque of 25Nm.

  • Page 22: Hydraulics

    Midilift SL Installation Guide Position the pump unit as per the builders work drawing. Connect the hose to the pump unit and route hose to the base of the ram, DO NOT CONNECT TO RAM AT THIS STAGE! NOTE: Ensure hose is routed clear...

  • Page 23: M/S Control Valve - Blain

    Midilift SL Installation Guide 0.15m/s pump units 0.15m/s Control Valve - Blain Solenoid Down Stop (D) Relief Valve (S) Pressure Switch Manual Lowering (H) Slack Rope Valve (KS) January 2023 Version 16...
  • Page 24 Midilift SL Installation Guide Adjustments UP Valves are already tested and adjusted. Up Bypass: When the pump is started, the unloaded platform should remain stationary at the floor for a period of about 1 second before starting upwards. The length of this delay is according to the setting of adjustment 1 'In' (clockwise) shortens the delay, 'out' (c-clockwise) lengthens the delay.

  • Page 25: M/S Control Valve - Igv

    Midilift SL Installation Guide 0.15m/s Control Valve - IGV • To remove the lid, use the triangular key to unlock and pull the lid handle forward towards you, not up, for about 50mm. The lid can then be removed. • The oil tank holds about 30 Litres of oil and is to be filled with HVI 32 Hydraulic oil. A dipstick is provided on the filler cap.
  • Page 26 Midilift SL Installation Guide Plan View of Valve Block Hand Pump Bleed Screw A - Pressure Relief Valve. To adjust, release the lock nut (13mm AF) and with a 4mm Hex socket key turn clockwise to increase the pressure and anti-clockwise to decrease the pressure setting.

  • Page 27: Rupture Valve Adjustment

    Rupture valve adjustment Checking and adjustment of the Rupture Valve Remove the ram from the lift and lay it on the floor. (See Midilift SL maintenance manual for removal of ram procedure). Remove the rupture valve from inside the ram. This can be done by inserting pins in the holes and turning.

  • Page 28: Platform

    Midilift SL Installation Guide Using the pump, raise the carriage approximately 500mm from the lower floor. Remove the carriage installation legs. Lift the platform frame into the lift structure and rest on floor. Lower the carriage to meet the platform frame. Remove the carriage transit strap (angle bolted to the front of the carriage).
  • Page 29 Midilift SL Installation Guide 5.1 Platform Safety Edge Adjustment Switch Nylon Adjustment Pin Safety Edge Bar Switch Lever Arm M4 Locking Nut Setup checks (for each of 4 switches): • Verify Gap (‘Section B-B’) is between 2 & 5mm • Verify gap between platform & Safety Edge is 10mm (3 positions –...

  • Page 30: Guide Endstop

    Midilift SL Installation Guide Safety Edge Installation Issues Safety Edge Bar Bouncing If the Safety Edge Bar ‘Bounces’ and activates the Mircoswitches on start in the up direction, increase the tension in the springs by turning the Nylon Adjustment Pin anti-clockwise, and secure in place with the M4 Locking Nut beneath.
  • Page 31 Midilift SL Installation Guide IMPORTANT!! HEALTH & SAFETY THIS PROCEDURE MUST BE ADHERED TO Once lift has been built up as far is possible from the ground floor and using the working platform, the lift is almost in a position to be run.

  • Page 32: Glazing

    Midilift SL Installation Guide 7.1 Glass Assembly Firstly, place three 30mm tabs of insulating foam into the lower HM channel or ‘H’ section channel for the glass panel to sit on. Using suction cups slide one side of the glass panel as far into the vertical panel extrusion as possible (1).

  • Page 33: Glass Panels (Excluding Guide Side)

    Midilift SL Installation Guide 7.3 Glass panels (excluding guide side). The following details relate to the installation of glass on all sides excluding the guide side. Using the panels as a fall arrest barrier. NOTE: to fit upper panels / glass, use the lower panels as a barrier to safeguard against falling out of the shaft.

  • Page 34: Top Beam Assembly

    Midilift SL Installation Guide TOP BEAM ASSEMBLY Top beam 'F' section Infill panel 4.2 X 13 self drill screw 5.5 x 19 self drill screw January 2023 Version 16...

  • Page 35: Limit Switches & Ramps

    Midilift SL Installation Guide Two stop Fit limit ramps to the left hand guide using Halfen nuts and cap head screws. Position to the approximate location to activate the switches. Ensure Halfen nuts are correctly fitted. Operate the lift up until it reaches top floor level. Position the ramp so that the up stopping switch is activated Set the anti-creep switch so that it operates should the lift drop 20mm.

  • Page 36: Two Stop Upper Limit Switches

    Midilift SL Installation Guide 9.2 Two stop upper limit switches It is important that the Anti-creep switch is positioned so that it is on the upper ramp when the lift is at the top floor position. The upper limit ramp is the longer ramp.

  • Page 37: Multi-Stop Encoder And Ops Switch (Up To 5M Travel)

    Midilift SL Installation Guide Multi-stop Encoder and OPS switch (up to 5m travel). OPS Vane fixed to panel OPS Switch (bottom reset) Draw Wire Encoder Encoder draw wire fixing angle. Note: Care must be taken when fitting this angle. Pulling...

  • Page 38: Half Height Gate

    Midilift SL Installation Guide HALF HEIGHT GATE 10.1 Half height gate assembly Before fitting gate frame please refer to 2.1 for corner upright preparation. Once in position secure horizontal door member in the same manner as 2.2. Fix hinge side using 2 x M8 button head screws through slots, glue ‘P’ section over slots, ensuring front edge of ‘P’...

  • Page 39: Fitting Of Gate To Frame

    Midilift SL Installation Guide 10.2 Fitting of gate to frame View A 2 off M8 Pivot plate c/sunk screws Teflon bush View B Fit handle Spacer January 2023 Version 16...

  • Page 40: Door & Gate Closers

    • The closer requires a separate programmer (Stannah ref: 9449093) to facilitate setting 1) Ensure the plastic filler piece for the cover is fitted then fit the spigot to the closer using the M8 x 60 cap screw.

  • Page 41: Manual Gate

    Midilift SL Installation Guide View A Spigot M8 x 60 Cap Screw M6 x 12 Countersunk Screw Closer Arm Slider 11.3 Manual Gate For gates on a reduced platform lift, it is necessary to drill the corner uprights in order to fit the closer assembly.

  • Page 42: Powered Gate

    Midilift SL Installation Guide The gas strut is assembled and set up to operate at a pre-determined force value and should not be adjusted. If the force is too strong, then a small amount of gas may be released from the spring.
  • Page 43 Midilift SL Installation Guide threaded hole, next to hole from which it was removed. For further clarity, see the closer manufacturer’s instructions. 7) The closer can now be powered up. 8) With reference to the quick start guide (see separate document), initial set-up and further adjustments can now be carried out using the separate programmer.

  • Page 44: Fire Door Assembly

    Midilift SL Installation Guide Before fitting the fire door, the intumescent strips, handle, contacts and the door lock plate need to be fitted. A slam plate will also need to be screwed to the slam side edge of the door, but it is best to fit this once the door has been fitted to the frame.

  • Page 45: Landing Stations

    Midilift SL Installation Guide To fit the door, use packers to raise the door to the correct height, then line up the hinges with the holes in the door frame upright. Fix the door to the frame using M5 x 16 CSK screws. A 2mm thick shim should be placed between each hinge and the door frame.

  • Page 46: Standard Call Stations

    Midilift SL Installation Guide 13.1 Standard call stations Lower call station is fitted with lift isolation, this isolates the lift but provides power to the battery charger. If fitted, call isolation isolates the call & prevents unauthorised use. If fitting a remote call station, it may be necessary to strip back the outer sheathing in order to fit cables through the conduit.

  • Page 47: Landing Stations (Fire Clad)

    Midilift SL Installation Guide 13.2 Landing stations (fire clad) Position call stations so that the centre of the call button is between 900 and 1100mm from the finished floor. Fit back box using 2 large self drilling screws Fit call station & emergency...

  • Page 48: Upper Door Stiffeners

    Midilift SL Installation Guide UPPER DOOR STIFFENERS If gusset isn’t present at top of corner upright, fit stiffeners (all four corners) using M8 fixings, bolting through into cross member. View A Stiffener Cross member January 2023 Version 16...

  • Page 49: Carriage Cover

    Midilift SL Installation Guide top safety edge with the tamper Fit the Carriage Top Panel, connect the Earth cable and fit the resistant screws . Check the safety edge operation. The Carriage Front Panel (COP) attaches to the carriage by hooks behind the buttons. Lift the panel slightly and align with the 2 Hook Fixing Angles on the carriage and push down to engage the hooks.

  • Page 50: Structure Fixings And Supports

    Midilift SL Installation Guide STRUCTURE FIXINGS AND SUPPORTS The following methods of fixing are in addition to the base fixings details under Section 3.5. Before making the following fixings, it should be ensured that the lift structure is square. The guide &...

  • Page 51: Threshold Fixings

    Midilift SL Installation Guide 16.2 Threshold Fixings The structure is to be tied back to the landing at all intermediate and upper entrance positions by fixing through the lower support member as shown. All other details are as per the guide fixings.

  • Page 52: Hoop

    Midilift SL Installation Guide 16.3 Hoop Threshold fixing points to be used in addition to lift structure threshold fixing points. View B Corner upright M10 binx nut Spreader plate Packers M10 fixing M12 fixing through hoop arm Use packers as required...

  • Page 53: Cantilever Bracket

    Midilift SL Installation Guide 16.4 Cantilever Bracket View B Corner upright Spreader plate Use packers as required M10 binx nut Packers M10 fixing Use spreader plate inside corner upright January 2023 Version 16...

  • Page 54: Structural Ceiling

    Midilift SL Installation Guide STRUCTURAL CEILING Fit the corner upright stiffeners in the top of the upright using the same fixings for securing the horizontal members, noting the positions of the 2 different stiffeners. Note: In the case of lifts with reduced headroom, the stiffener should be inserted into the upright prior to fitting the top section.
  • Page 55 Midilift SL Installation Guide Retract Pin Lighting Cable View A Ceiling Panel View B Hinge the ceiling panel up and secure using the fixings shown. Access is gained from below via the gap next to the guides. M8 x 20 Hex Hd Screw (2 off)

  • Page 56: Covers & Infill Panels

    Midilift SL Installation Guide COVERS & INFILL PANELS 18.1 Upper Level Gate Working from the bottom of the structure, fit the corner upright infill panels. Working from the top of the structure, fit the guide infill panels. The top panel should be flush with the top of the horizontal member.

  • Page 57: Upper Level Door

    Midilift SL Installation Guide 18.2 Upper Level Door Fitting is the same as for lifts with an upper level gate (see 18.1) with the following exceptions: 1) Upright infill angles will stop 105mm below the top of the corner upright.

  • Page 58: Commissioning

    On completion of the installation the lift is ready to be tested. The test must be carried out according to the 'Midilift SL Certificate of Test and Installation' procedure. The lift can only be commissioned once this has been correctly completed.

  • Page 59: 20 3 Stage Ram Install

    Midilift SL Installation Guide 3 STAGE RAM INSTALL 20.1 Ram support guides • Fit guides Note – Fit bolts to spare holes to finish off. Guides Ram Guides Ram Support Bracket January 2023 Version 16...

  • Page 60: Fit Ram

    Midilift SL Installation Guide 20.2 Fit Ram • Fit ram in conjunction with 3 Stage Ram Installation Guide, Appendix B Ram Guide Brackets Ensure M8 x 16 fixings are used Ram Clamp Plate January 2023 Version 16...

  • Page 61: Lift Positioning Encoder

    Midilift SL Installation Guide 20.3 Lift Positioning Encoder • Attach belt to top beam • Position belt around encoder • Pull tight and clamp belt to base plate Run belt around rollers and encoder Clamp belt top and bottom January 2023...

  • Page 62: Ram Oil Collection Bottle

    Midilift SL Installation Guide 20.4 Ram Oil Collection Bottle Cable Tie the hose to the ram Cable Tie the bottle to the ram January 2023 Version 16...

  • Page 63: Name Plate (Ce & Ukca Mark)

    Midilift SL Installation Guide After final commissioning of the lift, write the Lift Number and Year of Installation legibly on the name plate, using an indelible pen. Check that the model name corresponds to the Midilift GL/SL. The name plate is to be adhered in position, using the self-adhesive strip, on the inside of the lower door frame as shown below.

  • Page 64: Appendix A - Trouble Shooting

    Midilift SL Installation Guide Appendix A – Trouble Shooting Problem Possible fault Possible solution • Circuit breaker tripped • Reset. Turn on (3 switches) • Isolation keyswitch turned off • Ensure door is closed and locks fully • Door not locked engaged.

  • Page 65: Appendix B - Heavy Ram Installation Guide

    Midilift SL Installation Guide The following PPE should be worn at all times during installation: Safety gloves Safety goggles Safety helmet Safety shoes Components Required: Lifting Lower Ram Lifting Working Electric Beam Brackets Bracket Platform Hoist (6103101) (6103105) (6103013) (6103113) Lifting Beam Assembly –...
  • Page 66 Midilift SL Installation Guide 1. The lift is to be installed to first horizontal 2. Attach Lower Bkt to Working Platform member height, with 3.5m guides in place Back Frame with all fixings. If the door frame is not fitted, a horizontal member is to be temporally fitted to secure structure.
  • Page 67 Midilift SL Installation Guide 5. Complete Working Platform Assembly to 6. Fit the Lifting beam on top of the Guides, recommended procedure (c/w ladder). ensuring the spigots are fully engaged 8. Remove Working Platform Fit Electric Hoist January 2023 Version 16...
  • Page 68 Midilift SL Installation Guide 9. Fit Ram Lifting Eye to Ram M8 x 16lg 10. Safely manoeuvre the ram so the Lifting Eye on the ram is directly below the chain hoist. Gently winch the ram up, ensuring to occasionally lift the base of the ram and move it closer to the baseplate to make sure the lifting chain remains vertical.
  • Page 69 Midilift SL Installation Guide 11. Fix Ram Clamp Bkt in place 13. Remove Lifting Beam, Ram Lifting Eye 12. Refit Working Platform, as previously and Electric Hoist detailed January 2023 Version 16...
  • Page 70 Midilift SL Installation Guide 14. Remove Working Platform January 2023 Version 16...

  • Page 71: Appendix C - Document History

    Midilift SL Installation Guide Appendix C – Document history Issue Name Changes Section Date Max packer height and base fixing 2.4, 3.5, G. Howard torque now specified. Revision history Appendix C 18/03/2019 added to document. Cable connection bracket mounting R. Lark...
