- Page 1 Harmony FE Homelift Stratum FE Homelift User Manual User Manual ENG Original instructions ENG Original instructions...
-
Page 3: Table Of Contents
CONTENTS Description General Do’s and Don’ts Controls and Operation Smoke Alarms Emergency Procedures Fault Finding Changing Call Station Batteries Lift Disassembly / Safe Disposal of Hazardous Materials Service History Record Declaration of Conformity Lift Specification Sheet... -
Page 4: Description

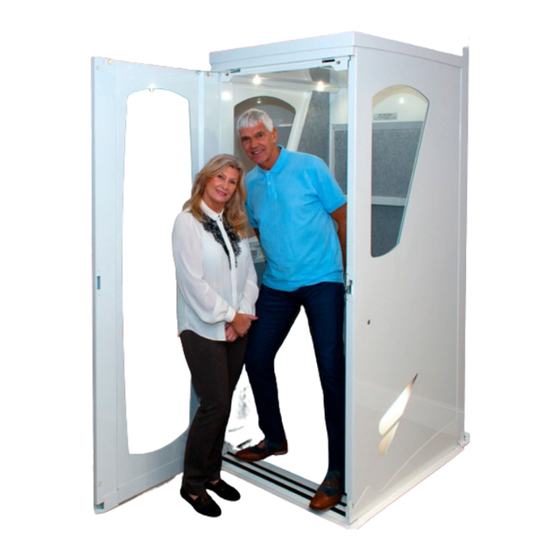

The lift is capable of transporting two people, one of whom could be a wheelchair user (excludes Stratum FE C). This lift is not intended for the transporting goods. The lift is designed to operate without a lift shaft and is provided with an automatic infill panel which makes the ceiling aperture safe when the lift is at the lower level. -
Page 5: General Do's And Don'ts
GENERAL DO’S AND DON’TS • Never switch off the power supply to the lift, even when you go away. The lift control circuits are fed by a battery, which must be kept on constant charge. • The lift should always be returned to the lower level when not in use. - Page 6 Lift safety sensors The diagram below (Figure 1) shows the safety edges and surfaces on your lift. Trapdoor Top cap Lower door safe edge Underpan safe edge (sensor on lower and upper surface) Figure 1. lift shown part-way through aperture...
-
Page 7: Controls And Operation
CONTROLS AND OPERATION To operate the lift you can use the two wall mounted call stations (Figure 2), one at each level and similar control station fitted in the lift car. To isolate the lift you can use the optional remote control fob (Figure 3) to prevent travel. - Page 8 General operation • Call the lift by pressing the up arrow if you are at the upper level or down arrow if you are at the lower level • Press the door button to open the door. • Enter the lift. Users with wheelchairs should apply the brakes. •...
-
Page 9: Smoke Alarms
SMOKE ALARMS When installed on a Stratum FE Homelift, the smoke alarm system will cause the lift to deactivate safely once the alarm is triggered. When deactivated, the door will continue to operate as normal. When the Lift is stationary at either level If smoke is detected, the alarm will sound. -
Page 10: Emergency Procedures
EMERGENCY PROCEDURES In the event of a mains failure during travel, the battery backed control system of the Stratum FE Homelift will allow normal operation in the down direction without loss of any safety features. This allows the user to exit the car at the lower level in the normal way. - Page 11 Emergency Manual Lowering IMPORTANT: During emergency manual lowering, the normal safety features will not function, so the lift will not stop if a person, pet or object is under the lift. The exact lowering procedure must be observed, because the normal safety features will not function during manual lowering.
- Page 12 • The red cord revealed in the access hole now needs to be pulled continuously to lower the lift car slowly. • After 5 seconds release cord and check with person B that the trapdoor is following the carriage. If so continue to lower. •...
- Page 13 When the lift is at a landing level: • Find the red emergency unlocking key which came with this user manual (Figure 6). Figure 6. • Insert the key just below the lock bar and move it upwards. Figure 7. •...
-
Page 14: Fault Finding
FAULT FINDING The most likely causes of your lift failing to operate are: • The door not being fully closed. • An obstruction causing one or more of the safe edges (page 6) to operate, preventing travel. To assist in identifying the cause, the car is fitted with a simple system of coloured indicator lights on the rear panel, one red, two yellow and two green (Figure 8). - Page 15 Lift Malfunction FAULT INDICATION CAUSE ACTION Lift will not travel in No lights on car Door not shut Press door button either direction. panel. Remote fob off Press a button on fob. Lift will not go up. One green off on car Car safe edge Remove obstruction panel.
- Page 16 Smoke Alarm Malfunction INDICATION CAUSE ACTION Smoke alarm, red light flashes System functioning No action necessary. one every minute. correctly. (Quiescent mode) Smoke alarm sounds 3 beeps Smoke alarm has been Your homelift is interlinked every 4 seconds with flashing activated.
-
Page 17: Changing Call Station Batteries
CHANGING CALL STATION BATTERIES 1. The call station can be removed from the wall by sliding the case upwards. 2. Remove the four screws in the back with a posi-drive screwdriver. 3. Using a screw driver, gently Figure 9. push the battery out a short way and then pull using fingers. -
Page 18: Lift Disassembly / Safe Disposal Of Hazardous
Batteries and PCB’s that are no longer required for this lift, at the end of their working life, can be returned either to an approved waste disposal facility or to Stannah for safe disposal. Oil from this lift should be disposed of via an authorised waste... -
Page 19: Service History Record
SERVICE HISTORY RECORD An entry should be added to the following table every time the lift is serviced. DATE ENGINEER COMPANY COMMENTS... -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY Lift Type: Stratum FE Homelift This lift was manufactured by TERRY GROUP Ltd., who declare that this lift fulfils all the relevant provisions of the following Directives: 2014/30/EU Electromagnetic Compatibility Directive 2006/42/EC Machinery Directive This lift also fulfils all the relevant provisions of the following Standards: BSEN 12015:2014 Electromagnetic compatibility. -
Page 21: Lift Specification Sheet
LIFT SPECIFICATION Address of manufacturer:- Terry Group Ltd., Unit 1 Longridge Trading Estate, Knutsford, Cheshire, England, WA16 8PR. Lift serial No: Year of manufacture: Safe working load: 325kg Maximum travel: 3.6 metres Duty cycle: 10 cycles per hr with max load Average noise level: 65 dB Power supply:... - Page 24 For technical help, sales or service enquiry telephone: Stannah Homelifts Watt Close, East Portway, Andover, Hampshire, SP10 3SD t: 0800 715 482 e: webenquires@stannah.co.uk www.stannahhomelifts.co.uk Ref: ED35101a...
