Summary of Contents for Stannah MIDILIFT CL
- Page 1 MIDILIFT CL/CLS USER HANDBOOK IMPORTANT Before using your Stannah Midilift CL/CLS platform lift, please ensure that you read and familiarise yourself with these instructions.
-
Page 2: Table Of Contents
C O N T E N T S Introduction Safety Instructions Midilift CL/CLS Platform lift Lift Operation Lift Features Emergency Procedure Lift Care... -
Page 3: Introduction
Service Log Card supplied with the lift will be completed after each service visit. Failure to ensure servicing is carried out could lead to unreliable or unsafe operation. For all enquiries regarding servicing, please contact your local Stannah Service Branch. For your records:... - Page 4 Stannah Lift Services Ltd. Maintenance is carried out to ensure the lift runs efficiently and safely.
- Page 5 I N T R O D U C T I O N PRODUCT LIFE EXPECTANCY Product life expectancy depends largely on the environment, usage and the undertaking of proper scheduled maintenance. Our platform lift products are designed and life tested for a full life cycle of 10 years without major intervention.
-
Page 6: Safety Instructions
• Like all vertical platform lifts, the Midilift is not designed to move large numbers of people quickly and frequently. The maximum recommended usage, or duty rating, for the Midilift is: Midilift CL 385kg 30 starts per hour 315kg 35 starts per hour... - Page 7 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
-
Page 8: Midilift Cl/Cls Platform Lift

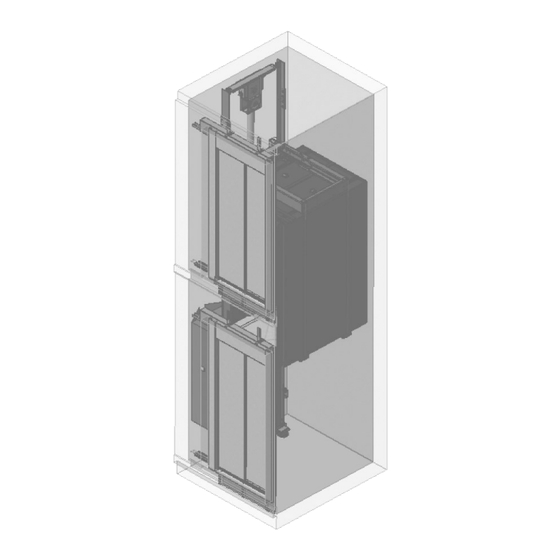

M I D I L I F T C L P L AT F O R M L I F T The Midilift CL is a platform lift with a full height cabin and hinged door. It can be in a structure or wall-mounted. - Page 9 M I D I L I F T C L S P L AT F O R M L I F T The Midilift CLS is a platform lift with a fully en- closed cabin and sliding car & landing door. It can be in a structure or wall-mounted.
-
Page 10: Lift Operation
L I F T O P E R AT I O N LIFT OPERATION USE AT-A-GLANCE Landing button Installed on the landing operating panel. Used to call the lift. Car button Use to select floor of travel in the cabin. Depending on the lift model it will either have automatic one touch control or con- stant pressure operation (see model variations on pg. - Page 11 L I F T O P E R AT I O N SAFE LOADING AND UNLOADING When entering or exiting the cabin users must pay attention to avoid snagging clothes, jewellery, bags, packages etc with landing doors. Users should not stop on the entrance door threshold.
- Page 12 L I F T O P E R AT I O N LIFT OPERATION FROM THE CABIN (CLS MODEL) • When the lift door is closed and locked, the lift is ready to move. • Operate the button of the level that you wish to travel to. •...
-
Page 13: Lift Features
L I F T F E AT U R E S The following provides an overview of the features on your cabin platform lift. AUTOMATIC DOORS (CLS MODEL) On the first operation, i.e. after lift power on, the automatic door will open and close very slowly. - Page 14 L I F T F E AT U R E S OVERLOAD CONDITION The lift will have a maximum load rating stated. If the load limit is exceeded, the alarm buzzer and light signal is activated. The lift remains stationary as long as the buzzer remains active.
-
Page 15: Emergency Procedure
E M E R G E N C Y P R O C E D U R E EMERGENCY RELEASING PASSENGERS The instructions for performing a rescue if a person is trapped in a cabin depend on the situation, where either the user can rescue themself or require competent and trained personnel to carry out the rescue. -
Page 16: Lift Care
L I F T C A R E The following lift care procedures carried out regularly will help to keep your lift in good condition: • Paint finishes and panels should be cleaned with a damp soft cloth and mild detergent. Ensure that excess water is squeezed out prior to cleaning. - Page 17 N OT E S...
- Page 18 N OT E S...
- Page 19 • The lift well and machine room / space must be accessible, free from damp, properly ventilated and maintained. Stannah reserve the right to change the terms of any warranty provided subject to any such change being notified to the beneficiary in writing.
- Page 20 We are continually developing and improving the Midilift range and we therefore reserve the right to alter or amend the specification without prior notice. Stannah Lifts Ltd Telephone: 01264 339090 Email: contact@stannah.co.uk www.stannahlifts.co.uk...
