Looking
after your
stairlift
Model: 320 Outdoor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 320 Outdoor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stannah 320 Outdoor

Summary of Contents for Stannah 320 Outdoor

  • Page 1 Looking after your stairlift Model: 320 Outdoor...
  • Page 3 And they’re true to their word. Here at Stannah, our people are at the heart of everything we do. No matter what their role, they share our passion for making world class stairlifts. Whether they are responsible for fitting a particular part or checking each finished stairlift as it glides off the production line, each one takes enormous care to ensure that every small detail is perfect.
  • Page 4 It is important to us that our stairlifts always help you travel up and down your stairs in the safest possible way. With this in mind, we recommend our stairlifts are serviced twice a year by a Stannah trained service engineer.

  • Page 5: Table Of Contents

    If you feel unsure about any aspect of your stairlift, please do not hesitate to get in touch with your stairlift supplier, details on the back page. Thank you for choosing Stannah Contents Getting to know your stairlift 6-9 Serial No:...

  • Page 6: Getting To Know Your Stairlift

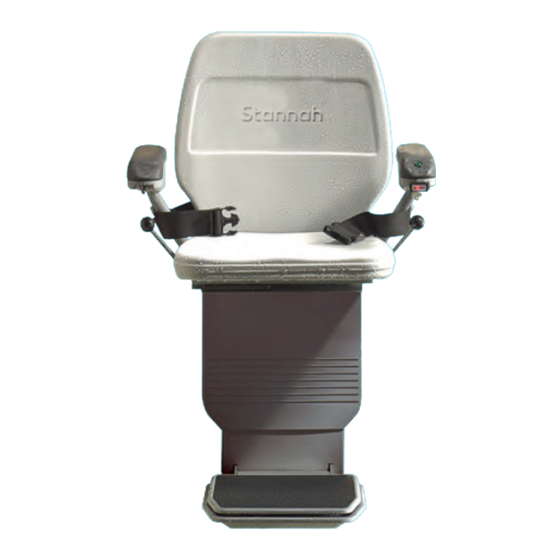

    Getting to know your stairlift 320 stairlift shown in travelling position...
  • Page 7 On/off switch Safety edges The safety edges are there to Power key stop the stairlift if they come The keyhole is on the underside into contact with any obstacles. of the chair arm. The key must be This stops anything from inserted and turned to the on becoming trapped while the position before the stairlift will...
  • Page 8 Getting to know your stairlift Additional calling controls (optional) Positioned at the top and bottom of the staircase, the additional calling controls let you call the stairlift if it is at the opposite end of the staircase to you. The controls will not work unless the power key is turned to the on position. SAFETY NOTICE Make sure no one else is using the stairlift before you call it.
  • Page 9 Getting to know your stairlift Master power switch This switch is on the back of the base of the chair and should normally be left switched on. The stairlift will not work if this switch is off. You can switch the master power switch off – perhaps if you go away on holiday and your stairlift will not be used for more than a week.

  • Page 10: Using Your Stairlift

    Using your stairlift 1. Turn on the power key To turn on the power key Put the key into the keyhole on the underside of the chair arm and turn it to the on position. Switch the on/off switch to the on position. The stairlift and the additional controls will not work unless you have turned on the power key and the on/off switch.

  • Page 11: Additional Calling Controls

    Using your stairlift 3. Using the additional calling controls Use these when you want to move the stairlift to the opposite end of the stairs. To move the stairlift along the rail Press and hold the arrow button on the additional control to move the stairlift in the direction you want.

  • Page 12: Unfolding The Chair

    Using your stairlift 4. Unfold the chair Your chair can be folded away when it is not in use to give you more space around the top and bottom of your stairs. To unfold the chair Lower both armrests, the seat and the footrest.
  • Page 13 Using your stairlift 4. Settle into the seat and start the stairlift Make sure the on/off switch is in the off position and the power light is off. Then, settle yourself into the seat and put your seatbelt on. When you are ready to travel up or down the stairs, switch the on/off switch to the on position, and use the arm control to start the stairlift.

  • Page 14: Joystick Controls

    Using your stairlift 6. To start the stairlift Move and hold the joystick in the direction you want to travel - after a few seconds the stairlift will start. The delayed start is a safety feature. When the stairlift has reached the top or bottom of the stairs, it will stop.

  • Page 15: Swivelling The Seat

    Using your stairlift 7. Swivel the seat At the top of the stairs you can swivel the seat towards the landing to help you get off the stairlift. You can also swivel the seat to make it easier to get on the stairlift when you want to go back down.

  • Page 16: Seatbelt

    Using your stairlift 8. Getting off the stairlift Make sure the on/off switch is in the off position and the power light is off. Carefully, get off the stairlift and swivel the seat back to its travelling position. You can fold the chair away if you wish. To get off the stairlift Unfasten the seatbelt Carefully get off...

  • Page 17: Cleaning Your Stairlift

    Recycling and disposal of your stairlift Do not dispose of any part of this product as everyday rubbish. For more information about recycling and disposal of your stairlift, please contact your Stannah supplier, details on the back page. For the ‘HELP’section see page 20...

  • Page 18: Technical And Safety

    Technical and Safety It is very unlikely that your stairlift will stop whilst travelling. However, if it does and is causing an obstruction, we have provided you with a hand-winding tool and instructions on how to manually move your stairlift out of the way. To move the stairlift using the hand-winding tool Switch off the master power switch.
  • Page 19 Technical and Safety Follow these points to make sure you always use your stairlift safely. Make sure no one else is using the stairlift before you call it using the additional calling controls. You can remove the power key to stop others from using your stairlift. Always use the seatbelt.

  • Page 20: Help

    If the stairlift stops during the above, repeat steps 1 and 2 until you reach As a last resort, swivel the chair towards the bottom of the stairs. the top of the stairs, undo seatbelt and exit up the stairs. Then call your Stannah supplier.
  • Page 21 Check that there has not been a power cut. If you cannot correct the fault, you can switch off the beeper by turning the master power switch to the off position. Then, please call your Stannah supplier. Details on the back page. Master power switch...
  • Page 22 Help Product Labelling 135 kg º Andover England Model Stannah Weight Number Supplier Limit...

  • Page 23: Certification

    1. Product model: Stairlift with straight outdoor rail – incorporating the 320 manual swivelling chair Product Model Serial no. 32016010001 - 32026529999 Manufacturer: Importer: Stannah Stairlifts Ltd Stannah GmbH Name Watt Close, East Portway Jägerhofstraße 29, Address Andover, Hampshire 40479 Düsseldorf,...
  • Page 24 Notes...
  • Page 25 Notes...
  • Page 26 We’re here to help, everyday and everywhere. At Stannah we know our business isn’t just about stairlifts - it’s about you, too. That’s why if you ever need help, we’re right there. In the unlikely event that you need help with your stairlift, we’re never more than a phone call away.
  • Page 28 Contact Details Stannah Stairlifts, Watt Close, East Portway, Andover, Hampshire, SP10 3SD, United Kingdom www.stannah.com Issue 9 September 2021 6 0 0 1 3 0 Original Instructions English...
