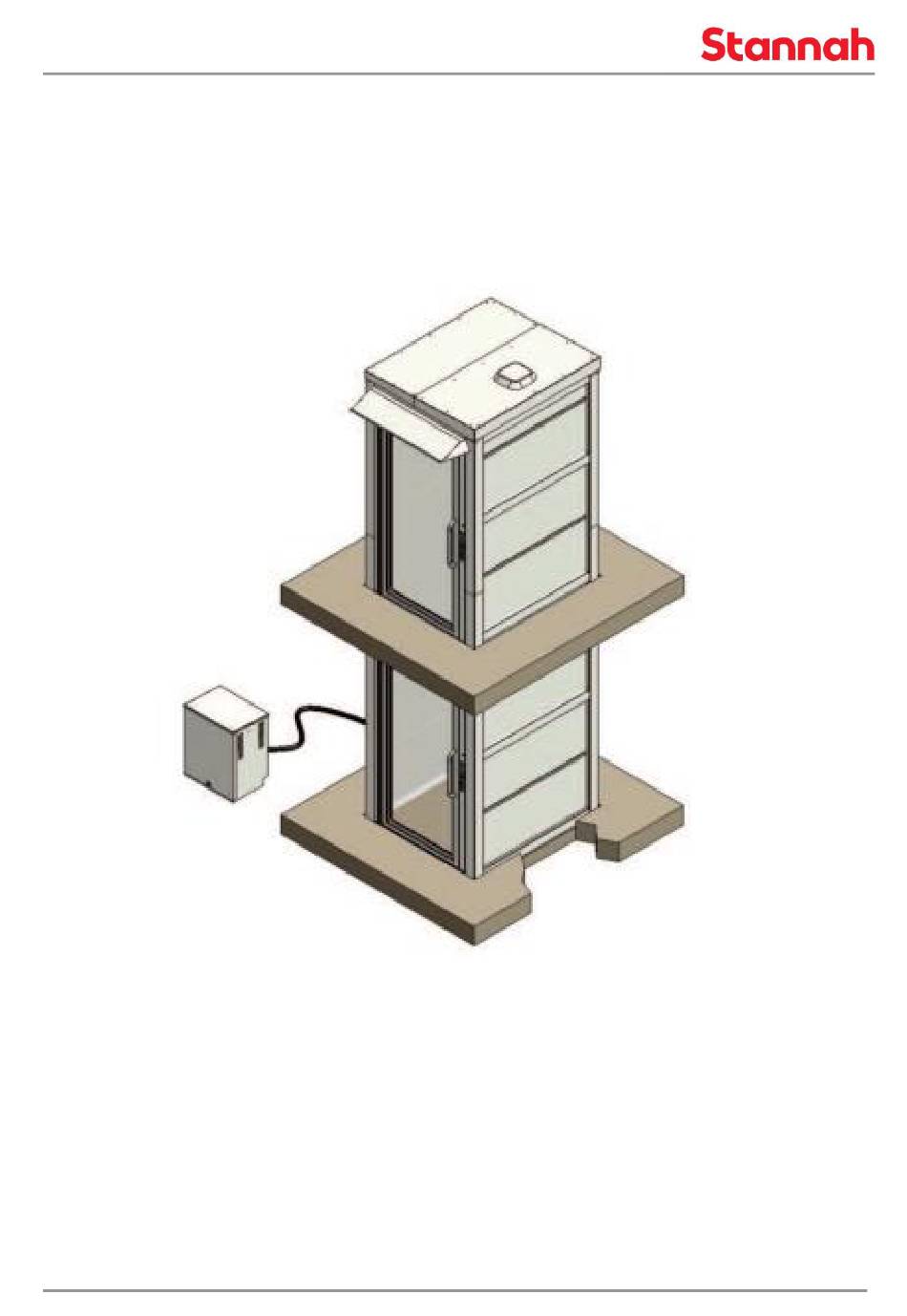

- Page 1 Midilift SL/GL External Installation Supplement Midilift SL/GL External Platform Lift Installation Supplement (to be read in conjunction with Midilift SL Installation Guide) 10/03/2020 Issue 2...
-
Page 2: Table Of Contents
Midilift SL/GL External Installation Supplement Contents INTRODUCTION ............................3 SAFETY EQUIPMENT AND PRECAUTIONS ..................... 3 RUST PROTECTION ........................... 4 LOWER HORIZONTAL MEMBERS ......................4 CORNER UPRIGHTS ..........................5 CANOPY ..............................6 ROOF ................................6 PUMP ENCLOSURE ........................... 8 ELECTRICAL BOXES ..........................8 EARTHING .............................. -
Page 3: Introduction
The installation procedure for the External Midilift SL/GL is almost identical to the standard Midilift SL & GL products. This Installation Supplement is therefore intended to be read in conjunction with the Midilift SL Installation Guide. This supplement only details those areas which differ from the standard SL/GL product. -
Page 4: Rust Protection
Midilift SL/GL External Installation Supplement Rust Protection The warranty against rust for this product is 5 years. Therefore care has to be taken when installing the lift not to accelerate corrosion. Most of the lift itself does not differ to the standard internal lift however exposed parts have been coated in a special coating beneath the powder coat to prevent rusting. -
Page 5: Corner Uprights
Midilift SL/GL External Installation Supplement Corner Uprights 5.1 Infill Panel The Corner uprights have cage nuts pre-assembled along their length in the stiffeners so that self drilling Note position of screws are not needed. Earthing stud. Also for this reason M5 stainless &... -
Page 6: Canopy
Midilift SL/GL External Installation Supplement Canopy The Canopy is designed to keep the worst of the elements from the entrance 8 off M8x16mm and also to keep the door closer dry, It is fixings simply fitted with the 8 M8 Bolts provided. - Page 7 Midilift SL/GL External Installation Supplement 7.3 Fitting the roof Fit the roof support members into the corner uprights. As shown. Lift the roof on to the top of the structure and down onto the support members (Note, it will always slope away from the guide rails.)
-
Page 8: Pump Enclosure
Midilift SL/GL External Installation Supplement Pump Enclosure 8.1 Fitting the Oil Heater The oil heater will be supplied separately. To fit it, simply remove the filler cap from Heating Element the pump unit, and place the heating and thermo- element and thermo couple into the tank... -
Page 9: Earthing
Earthing With the introduction of electrocoating (e- The following areas on the lift have been affected by this change: coating) on the Midilift SL External Corner uprights: product. It is more important than ever to Earth studs are now positioned on each stiffener plate within the... -
Page 10: Wiring
Midilift SL/GL External Installation Supplement provided. Refer to the earth bonding made between this stud and the corner upright. diagram 9452036 in the electrical wiring Door frame cross member and cover plate: manual to ensure all grounding Both the cross member and cover plate have earth studs; these connections are made.
