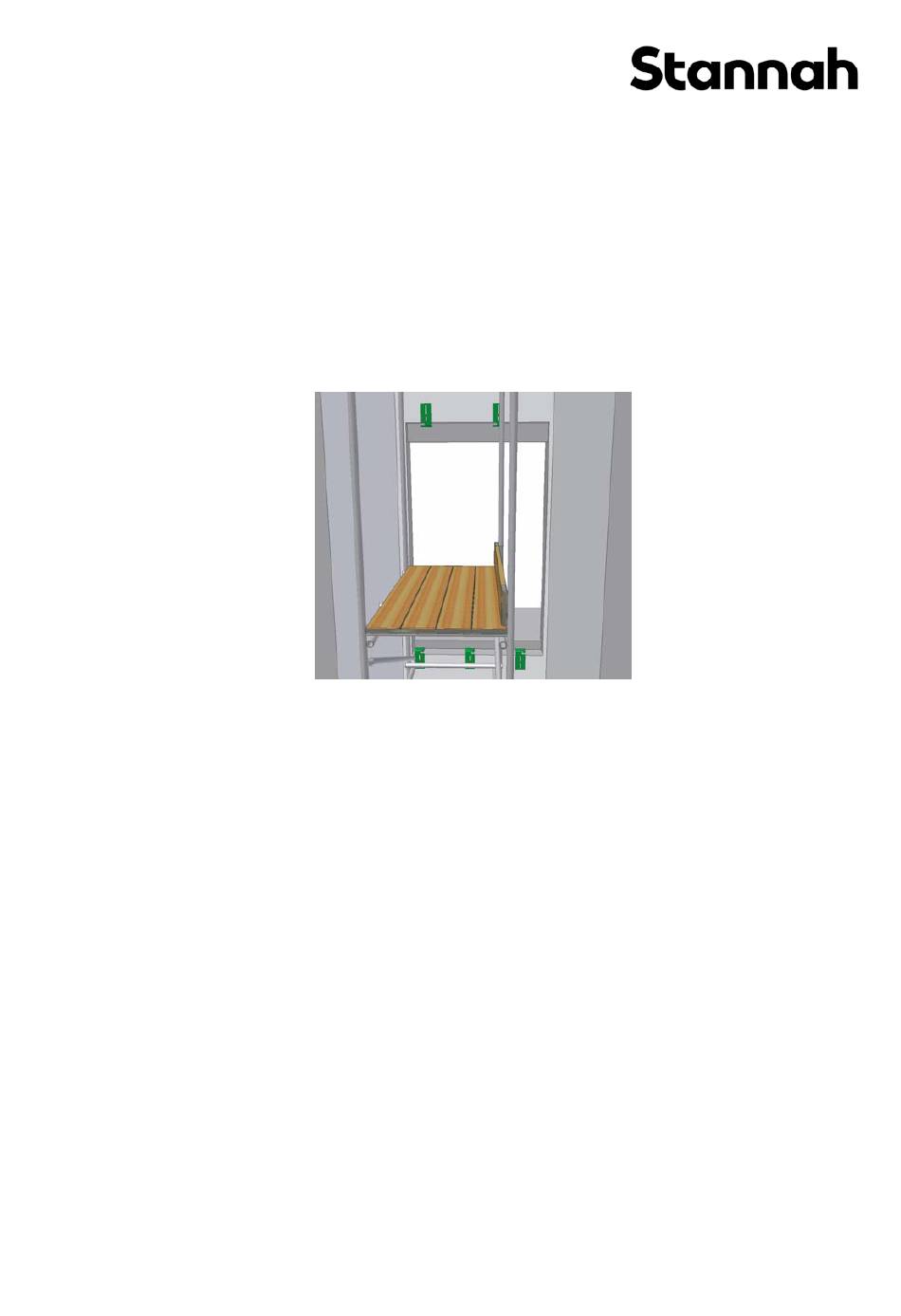

Guidance Notes for Installing the MRLiA Controller Cabinet into Landing Entrance
For Wall Mount (WM) Installations follow flow-chart in its entirety.
For Structure Supported (SS) follow flow-chart where indicated by dashed line and SS.
1
If Unistruts are not used; Drill Fix - ChemFix M12 studding in position as per BWD on
all landing entrances - WM only.
2
Bolt Architrave Mounting Brackets in position on Studding (or to Unistrut) - WM only.
3
Remove Scaffolding - WM only.
4
Assemble and attach Car Sling and Floor to Guides and on Buffers to provide for a
working platform. You may want to cut the Buffers to the correct length beforehand and
use the remaining off-cut 40 x 40 section to raise the platform level up to FFL to level
car and landing door tracks to each other and set the running clearance.
Refer to following flow-chart;
If Controller on Lowest Entrance follow A. If Controller on Higher Entrance follow B
260710/RS/L:\Tech documents\SYS21\Installation guides\Installation Guidelines for MRLiA Cabinet 260710.doc
1
