Summary of Contents for Dormakaba RTS Package 30 Series

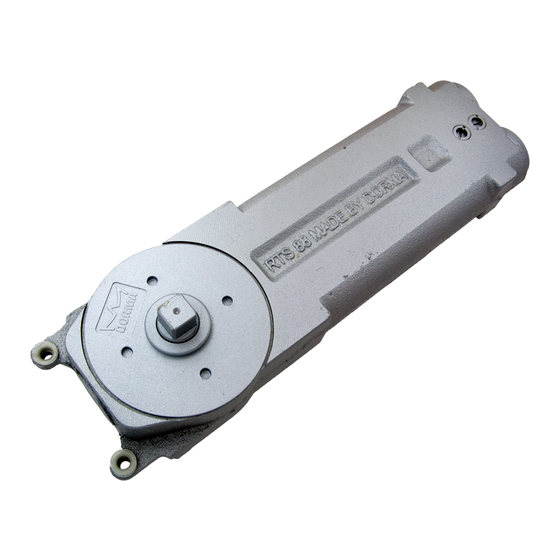

- Page 1 RTS Series Package 30 Offset slide arm wood door and aluminum frame - hinges Installation instructions 08279281 – 02-2020 | EN |...
- Page 2 RTS88 Package 30 Installation Instructions Table of Contents Table of contents Installation instructions Prepare frame and install closer Prepare top of door Adjustments Adjust closing speeds Optional 8511 applied stop (or stop by others) 5 RTS88 Closers 08279281 02-2020...
- Page 3 RTS88 Package 30 Installation Instructions Frame Closer Installation instructions 1.1 Prepare frame and install closer Fig.1 1/4-20 flat head machine screws Mounting bracket Header Angle bracket Closer Fillister head machine screws (x2) Cover plate Side jamb 1.1.1 Prepare header and side jamb according to 1.1.7...
- Page 4 RTS88 Package 30 Installation Instructions Top of door 1.2 Prepare top of door Fig.2 Header Closer Cover plate 1/4-20 socket head Slide block cap screw Applied stop Slide block pin Button head machine screw Track No. 8 flat head...
- Page 5 RTS88 Package 30 Installation Instructions Adjustments - closing speeds 8511 applied stop Adjustments 2.1 Adjust closing speeds Fig.3 Valve “B” “A” “B” Valve “A” 2.1.1 Valve “A” - controls closing speed from 2.1.2 Valve “B” - increases closing speed from maximum opening angle to 0°.
- Page 6 DORMA USA, Inc. T: 800-523-8483 www.dormakaba.us...
