PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended–use, production operations is available.
Die Assembly
58423–1
(Replaceable Item)
Ratchet
Adjustment
Wheel
NOTE: Refer to Catalogs 82004 and 82042 for terminal selection information.
PRODUCT
LINE
PIDG or G
PLASTI–GRIP
Terminals
PIDG FASTON* G N*
Terminals
1. INTRODUCTION
This instruction sheet provides application and
maintenance procedures for PRO–CRIMPER Hand
Crimping Tool 58433–3. See Figure 1.
The tool is designed to crimp PIDG and
PLASTI–GRIP terminals onto pre–stripped wire
E
2003 Tyco Electronics Corporation, Harrisburg, PA.
All International Rights Reserved.
AMP and Tyco are trademarks. *Trademark
Other products, logos, and company names used are the property of their respective owners.
PRO–CRIMPER* Hand Crimping Tool
58433–3 for PIDG* and PLASTI–GRIP*
Red / Blue / Yellow Terminals
TERMINAL/STRIP LENGTH INFORMATION
WIRE SIZE INSULATION
RANGE, AWG DIAMETER (MAX.)
22–16 3.56 [.140]
16–14 4.32 [.170]
12–10 6.35 [.250]
22–18 Flag 3.56 [.140]
16–14 Flag 4.32 [.170]

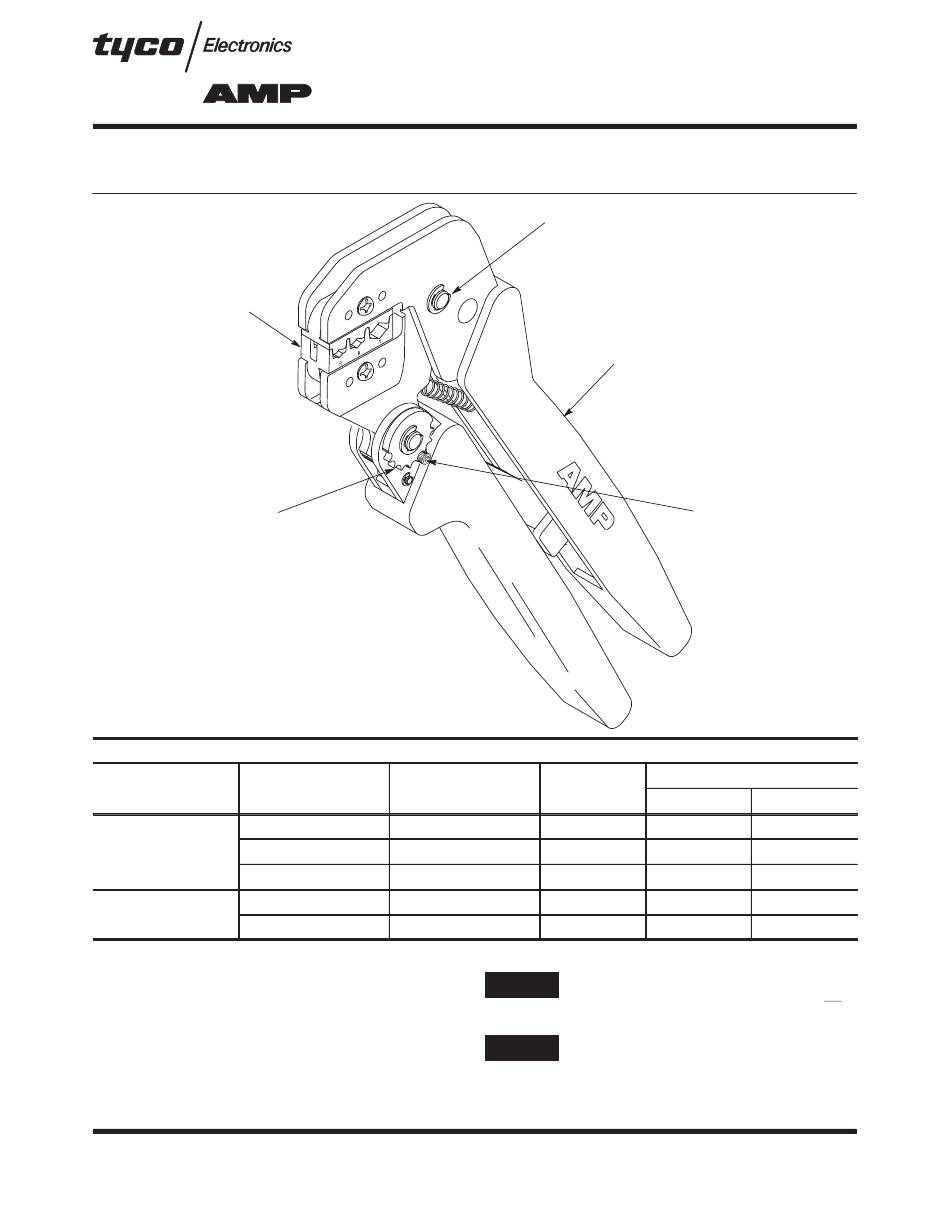

Figure 1
This controlled document is subject to change.
For latest revision call the AMP FAX* number.
Pivot Pin
Hand Tool Frame
354940–1
INSULATION
. COLOR
Red
Blue
Yellow
Red
Blue
Terminals crimped with Hand Crimping Tool
CAUTION
58433–3 or with Die Assembly 58423–1 are not
Listed by UL or CSA.
All dimensions are in millimeters [with inches in
NOTE
brackets].
Reasons for reissue of this document are provided in
Section 6, REVISION SUMMARY.
TOOLING ASSISTANCE CENTER 1–800–722–1111
AMP FAX/PRODUCT INFO 1–800–522–6752
For Regional Customer Service, visit our website at
www.tycoelectronics.com
Instruction Sheet
408–9252
08 JAN 03 Rev F
Screw
STRIP LENGTH
MINIMUM MAXIMUM
5.15 [.203] 5.95 [.234]
5.15 [.203] 5.95 [.234]
7.94 [.312] 8.73 [.344]
8.33 [.328] 9.14 [.360]
8.33 [.328] 9.14 [.360]
1 of 3
