Table of Contents

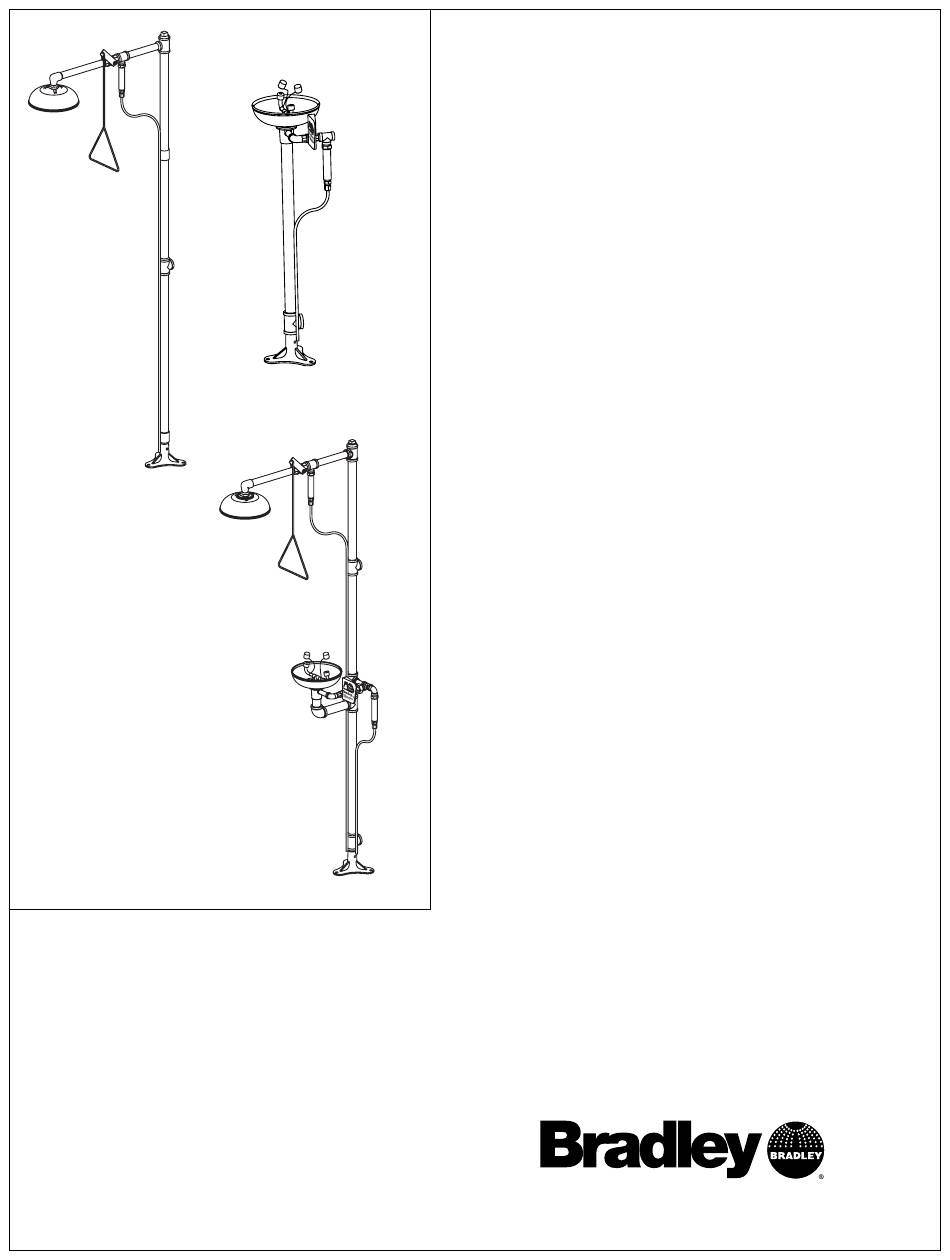

Valve Kit shown
on Drench Shower
Valve Kits shown on
215-1444 Rev. A; EN 05-544
© 2006 Bradley Corporation
Page 1 of 6
1/27/06
Valve Kit shown
on Eyewash
Combination Unit
Installation
Freeze and Scald Protection
Valve Kits for Drench Shower,
Eyewash and Combination
Units
Freeze Protection Valve Kits
S45-1986 (Eyewash and Combination Units)
S45-1987 (Drench Shower and Combination
Units)
Scald Protection Valve Kits
S45-1989 (Eyewash and Combination Units)
S45-1990 (Drench Shower and Combination
Units)

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . .2
Installing Valves on Drench Showers . . . . . . . . . . . .3
Installing Valves on Eyewashes . . . . . . . . . . . . . . . . .4
Maintenance and Troubleshooting . . . . . . . . . . . . . . .6
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 1-800-BRADLEY FAX (262) 251-5817
http://www.bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S45-1986 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley S45-1986

Summary of Contents for Bradley S45-1986

  • Page 1: Table Of Contents

    Drench Shower Eyewash and Combination Valve Kit shown Units on Eyewash Freeze Protection Valve Kits S45-1986 (Eyewash and Combination Units) S45-1987 (Drench Shower and Combination Units) Scald Protection Valve Kits S45-1989 (Eyewash and Combination Units) S45-1990 (Drench Shower and Combination...

  • Page 2: Pre-Installation Information

    Installation Pre-Installation Information Bradley Freeze and Scald Protection Valves may serve as primary protection on untraced systems or a fail-safe back-up for traced water systems. The freeze protection valve activates at 45° F (7° C) and will fully open at 35° F (2° C). The scald protection valve activates at 85° F (30° C) and fully opens at 100°...

  • Page 3: Installing Valves On Drench Showers

    Tee, 1" NPT x 1" NPT x 1/2" NPT 113-006LN 1" NPT CLose Nipple 113-006LG 1/2" NPT CLose Nipple 145-204 Compression Fitting 269-783M Tube, 3/8" Supply (96") 269-147 Cable Tie (not shown) Bradley Corporation • 215-1444 Rev. A; EN 05-544 1/27/06...

  • Page 4: Installing Valves On Eyewashes

    169-840 Tee, 1" x 1" x 1/2" NPT 113-006LN 1" NPT CLose Nipple 113-006LG 1/2" NPT CLose Nipple 145-204 Compression Fitting 269-783M Tube, 3/8" Supply (96") 269-147 Cable Tie (not shown) 1/27/06 Bradley Corporation • 215-1444 Rev. A; EN 05-544...

  • Page 5: Installing Valves On Combination Units

    Installation S45-1986, S45-1987, S45-1989, S45-1990 Installing Valves on Combination Units IMPORTANT To prevent an ice patch hazard, Bradley recommends that Item Part No. Description discharge from the valve be directed through a hose or piping to the waste. Discharge hoses or piping should be short so...

  • Page 6: Maintenance And Troubleshooting

    • Replace the scald valve water temperature from the valve is below 80°F (27°C)] Scald protection valve is flowing water • Direct sunlight or high ambient • Cool the unit temperature 1/27/06 Bradley Corporation • 215-1444 Rev. A; EN 05-544...
