service manual

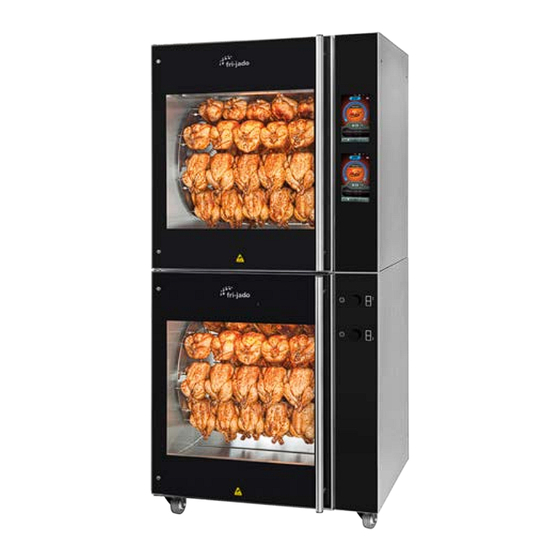

Turbo Deli roTisserie s WalmarT
moDels
TDr 7 s
TDr 7 + 7 s
TDr 7 s
TDr 7 + 7 s
- NOTICE -
This manual is prepared for the use of trained Service Technicians and should
not be used by those not properly qualified. If you have attended a training
for this product, you may be qualified to perform all the procedures in this
manual.
This manual is not intended to be all encompassing. If you have not attended a
training for this product, you should read, in its entirety, the repair procedure
you wish to perform to determine if you have the necessary tools, instru-
ments and skills required to perform the procedure. Procedures for which you
do not have the necessary tools, instruments and skills should be performed
by a trained technician.
Reproduction or other use of this Manual, without the express written consent of
Fri-Jado, is prohibited.
Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024
WWW.FRIJADO.COM
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turbo Deli Rotisserie S Walmart and is the answer not in the manual?

Questions and answers

Summary of Contents for Fri-Jado Turbo Deli Rotisserie S Walmart

  • Page 1 Reproduction or other use of this Manual, without the express written consent of Fri-Jado, is prohibited. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 WWW.FRIJADO.COM Page 1...
  • Page 2 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 2...
  • Page 3 VeRSion HiSToRy Versions Version issue date Remarks yyyy-mm-dd 8/2024 2024-08-12 First release 9/2024 2024-08-16 Small corrections 9.1/2024 2024-08-20 Update in exploded views Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 3...
  • Page 4: Table Of Contents

    Trouble shooting by part / function......................36 exploded views and parts ������������������������������������������������������������������������������������������������������������ 40 electrical parts ............................40 Parts list electrical parts ..........................41 Connectors and wiring ..........................42 Parts list Connectors and wiring ......................43 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 4...
  • Page 5 ������������������������������������������������������������������������������������������������������������������������ 60 Replacing CPU & lCD board ........................60 First settings ..............................61 Program the serial number ........................62 First use wizard ............................63 Checking the WiFi connection .........................64 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 5...
  • Page 6 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9/2024 Page 6...
  • Page 7: General Technical Data

    Metric wrenches, sockets and hex socket key wrenches. • Multi-meter and aC current clamp meter. • Temperature tester. • insulation value tester (Megger). • Field Service Grounding Kit. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 7...
  • Page 8: Software "S" Controller (Touch Screen)

    Confirm Help function Step back Wipe/clean touch screen (locks screen for 60s.) Delete sWiTCHiNG oN Tap the screen Tap the ON / OFF icon Home screen Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 8...
  • Page 9: Menu Overview

    Once the manager or service menu is opened, it stays unlocked for 30 minutes or until the device is switched off and on again. See parameter lists at the end of this chapter. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 9...
  • Page 10 Tap the screen when no holding perature for 5 seconds. icon for extra time. to stop the sound is programmed. Swipe to change time. = Pause button Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 10...
  • Page 11: Creating A Cooking Program

    Push when ready eDiTiNG a CooKiNG ProGram Push recipes icon Choose program Push icon to edit the highlighted recipe. Now follow the steps as described above. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 11...
  • Page 12: Example Of Error Message

    With “Test audio” the chosen volume or sound can be checked. This is no setting. Different sounds can be heard in combina- tion with “Test audio”. Volume Sound choice (Beeper has highest volume) Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 12...
  • Page 13: I/O Test

    J13 shows that the door is closed. Push the button to activate or disacti- vate the output of your choice. J14 shows an open thermistor in the blower, causing a blower error. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 13...
  • Page 14: Exchanging Data With The Usb Drive

    Copies the parameter list from the controller to the USB drive. Copies the parameter list from the USB drive to the controller. The current parameters will be overwritten. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 14...
  • Page 15: Updating Software Tdr S

    −> See ‘First set- 2. Connect the USB drive. tings’ on page 61. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 15...
  • Page 16: Automatic Cook Correction

    It is possible to disable this auto cook correction feature in the service parameters. See “parameter listings” –> A smaller load. “auto correct. A warmer load. (defrosted) Higher mains voltage. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 16...
  • Page 17: Parameters & Software

    SoFTWaRe "S" ConTRolleR (ToUCH SCReen) ParameTers & soFTWare The latest parameter lists and software can be found on the Fri-Jado resource library. Copy the link below in your browser or scan the QR code. https://www.frijado.com/wp-content/uploads/2024/03/WM-TDR-S-software.zip Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024...
  • Page 18: Manager Parameters

    30 sec 10–60 sec Store number Reference cook Recipes –> USb Recipes <– USb add recipes <– USb Cloud settings Cloud Username Cloud Password Restart hard Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 18...
  • Page 19: Service Parameters

    Wifi cloud enabled disabled - enabled Wifi RSSi Wifi auto restart 0–240 start config allow open Wlan Disabled disabled - enabled reset Wifi chip no - yes Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 19...
  • Page 20 - yes Restart hard no - yes Swipe sensitivity 0–100 live variables Status counter output counters Start/end counters UTC system time Commission time Time lime filter Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 20...
  • Page 21: Service Procedures

    15. illumination 16. Heating element 17. Turbine 18. PT1000 sensor 19. Senor, high limit thermostat. Opposite side view insid e view (with removed blower panel) Top view Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 21...
  • Page 22: Access To Service Parts Stacked Units

    2. Remove the bolt, nut and ring on the top- backside of the operating panel. 3. Pull out the panel and lift, to remove the panel. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 22...
  • Page 23: Door Switch

    4. Disconnect the wiring. Reverse the procedure to install. Note: Make sure the back part is clicked-on on both sides. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 23...
  • Page 24: Replacing A Lamp

    4. Push the lamp to either side and pull it down to remove the lamp. (see above) 5. Unscrew the 2 M3 screws and remove the hol- ders from the inside. Reverse the procedure to install. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 24...
  • Page 25: Blower Motor

    • never loosen or tighten, the 4 nuts from the mo- tor afterwards. • if this is necessary, then first loosen the shaft seal. • Check the rotation direction. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 25...
  • Page 26: Heating Element

    Very important! Take a new gasket. Do not forget to hold the rear nut with an open end spanner when connecting the wiring and tightening the nuts. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 26...
  • Page 27: Rotor Drive Motor

    10. Unscrew 4 screws with nuts. 11. Take out the motor as shown. White (a) or Red White brown L1 3 L2 5 T2 6 T1 4 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 27...
  • Page 28 7. Mount the shaft seal when the position of 2.5–3mm the motor is ok and the screws are mounted tight. (3/32”–4/32”) aligning the drive arm Checking rotation Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 28...
  • Page 29: High Limit Thermostat

    4. Unscrew the screw and pull out the sensor Reverse the procedure to install. Note 1: The sensor sticks out of the side wall to the end of TDR 7 the bracket. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 29...
  • Page 30: Door Inside

    3. Tighten the nuts of the hinge and mount the left-hand panel. Note: Tightening of nuts max. 8 Nm. or 5.9 lbf.ft Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 30...
  • Page 31: Electrical Tests

    ∞ Ω blue White 500V Thermistor White 0 Ω black 64 Ω 37 Ω 27 Ω PH1 208/240V 50/60Hz 1.8a 5uF 400V Thermally protected Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 31...
  • Page 32 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 32...
  • Page 33: Measuring The Rotor (Drive) Motor

    150 1573.10 10 1039.00 80 1308.90 200 1758.43 20 1077.90 90 1347.00 250 1940.81 25 1097.40 100 1385.00 300 2120.30 30 1116.70 110 1422.00 PT1000 sensor Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 33...
  • Page 34: Trouble Shooting

    2. Contactor inoperative. 3. PT 1000 sensor malfunction. 4. Sensor (probe) not in right place. 5. electronic control inoperative. 6. Heater(s) inoperative. 7. incorrect line voltage. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 34...
  • Page 35 1. lamp(s) broken. 2. lamp holder broken. 3. Wiring loose. infrared Halogen lamps do not shut 1. Contactor inoperative. off. 2. Power and i/o board malfunction. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 35...
  • Page 36: Trouble Shooting By Part / Function

    Contact burned. Check the wiring. mes in, but Check the power on al contacts. one or more Check the contacts of the contactor. functions don’t come in Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 36...
  • Page 37 Measure temperature motor during process. Main fuse Short circuit in coil to Check insulation value of coil with Meg- burned earth. ger on 500V. Minimum value is 0.5 MΩ. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 37...
  • Page 38 Check position of sensor sition. Temperature Malfunction Sensor Measure resistance of sensor. See table in indication on ‘Measuring the PT1000 sensor’ on page display runs up too fast Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 38...
  • Page 39 Display shows Parameters not on Check parameters. strange things. right settings. Wrong software or loss Check software version or upload latest of data. software. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 39...
  • Page 40: Exploded Views And Parts

    VieWS anD PaRTS exPloDeD VieWS anD PaRTS eleCTriCal ParTs 92 93 21 (TDR7/8) 20 (TDR5) 200-208V 400V 92 93 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 40...
  • Page 41: Parts List Electrical Parts

    9291010 Cover USB adapter 9291011 USB adapter 9172404 Connecting cable with plug15- For fasteners and all other PoS numbers above 800, see ‘Fasteners’ on page 56 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 41...
  • Page 42: Connectors And Wiring

    VieWS anD PaRTS CoNNeCTors aND WiriNG 1050 mm (41 1/4”) 450 mm (17 3/4”) <--2 <--1 <--3 <--2 <--1 <--2 <--3 <--4 <--5 <--2 <--3 <--4 <--6 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 42...
  • Page 43: Parts List Connectors And Wiring

    9291170 Plug, 5p, power 9291173 Plug, 6p, outputs 601466 Crimp contact male, M-N-L 9291014 Socket, 5p, Mate-N-Lock 3701272 Plug, 5p, Mate-N-Lock 601458 Crimp contact female, M-N-L Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 43...
  • Page 44: Doors

    VieWS anD PaRTS Doors Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 44...
  • Page 45: Parts List Doors

    Plug, door handle 225 9298101 Door handle, kit, TDR7 226 9174154 Adjusting bracket For fasteners and all other PoS numbers above 800, see ‘Fasteners’ on page 56 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 45...
  • Page 46: Panels

    VieWS anD PaRTS PaNels Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 46...
  • Page 47: Parts List Panels

    Panel TDR-7+7/8+8 s operator side 9298534s Panel TDR-7+7/8+8 blind non operator side 9298580s Panel TDR-7+7/8+8 + buttons operator side 9298579s Panel TDR-7+7/8+8 + button non operator side Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 47...
  • Page 48: Illumination

    Channel, lamp wiring 853 2105045 Screw M3x10 832 4288231 Tensilock bolt M5 x 10 For fasteners and all other PoS numbers above 800, see ‘Fasteners’ on page 56 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 48...
  • Page 49: Heating

    430 3701273 Turbine Ø 200 mm x 61 432 9290411s Blower panel For fasteners and all other PoS numbers above 800, see ‘Fasteners’ on page 56 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 49...
  • Page 50: Rotor

    VieWS anD PaRTS roTor 9292290 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 50...
  • Page 51: Parts List Rotor

    Meat basket, SS, coated 351,1 9172214 Meat basket, SS, coated, set of 7 For fasteners and all other PoS numbers above 800, see ‘Fasteners’ on page 56 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 51...
  • Page 52: Sheet Metal

    VieWS anD PaRTS sHeeT meTal TDR 7 + 7 S TDR8 Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 52...
  • Page 53: Parts List Sheet Metal

    Bracket, door switch 9291040 Strain relief M32 (AWG8) 3701068 Nut, strain relief M32 (AWG8) For fasteners and all other PoS numbers above 800, see ‘Fasteners’ on page 56. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 53...
  • Page 54: Underframe Tdr 7 S

    VieWS anD PaRTS uNDerFrame TDr 7 s Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 54...
  • Page 55: Parts List Underframe

    Side panel, left 9294305 Back panel 9294301 Side panel, right 9294304 Front panel 9294307 Suspension beam 9294308 Suspension beam 9294306 Drawer 9294303 Bottom plate 9294309 Enforcement beam Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 55...
  • Page 56: Fasteners

    Lockwasher, M8 SS serrated 9008869 Bolt M8x50, ZP 0142292 Nut M3 4288319 Screw 6x20, ZP CR threadforming 0141050 Screw M3x10, SS Cross recess pan head 4289402 Lockwasher M8, ZP Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 56...
  • Page 57 4280239 Screw M12x20, hexagon ZP 0197380 Washer M12, SS 0142975 Screw socket head cap M6x20, A2 4285120 Screw M4x20, thread rolling 8071043 Nut M4, serrated ZP Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 57...
  • Page 58: Electrical Diagrams

    DiaGRaMS eleCTRiCal DiaGRaMS CirCuiT DiaGram TDr 7 s Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 58...
  • Page 59: Wiring Diagram Tdr 7 S

    DiaGRaMS WiriNG DiaGram TDr 7 s Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 59...
  • Page 60: Service Instruction

    CPU board. 8. install the new CPU board. 9. Check all cables and connections to make sure it is safe to /and reconnect to the mains. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 60...
  • Page 61: First Settings

    7. Set the “device type” Select −> TDR-7 S 208V 8. Confirm by hitting the green check mark. also check the data plate for correct device typetype. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 61...
  • Page 62: Program The Serial Number

    Press the green check mark to confirm. Restart the controller in the service settings menu go to: Restart hard and select. The controller will switch off and do a full restart. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 62...
  • Page 63: First Use Wizard

    Tap the white area to enter the store number and hit the green Check mark. Press ‘next’. Select Finish, the unit is now ready for use Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 63...
  • Page 64: Checking The Wifi Connection

    • Make sure that the Device type setting is correct, see ‘First settings’ on page • Do a hard restart of the controller: in the service settings menu select Restart hard. Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 64...
  • Page 65 • if, after these actions the WiFi icon does not show, or if WiFi options are not avai- lable in the service settings replace the S-controller (P/n 9292288s). Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024 Page 65...
  • Page 66 For technical support call: +1 877 374 5236 Fri-Jado Inc. • 1401 Davey Road • Suite 100 • Woodridge IL 60517 • USA • fax +1 630 689 1424 us.info@frijado.com • www.frijado.com • USA • toll free 877-FRI-JADO Service Manual Turbo Deli Rotisserie S Walmart – form 9121930 rev. 9.1/2024...
