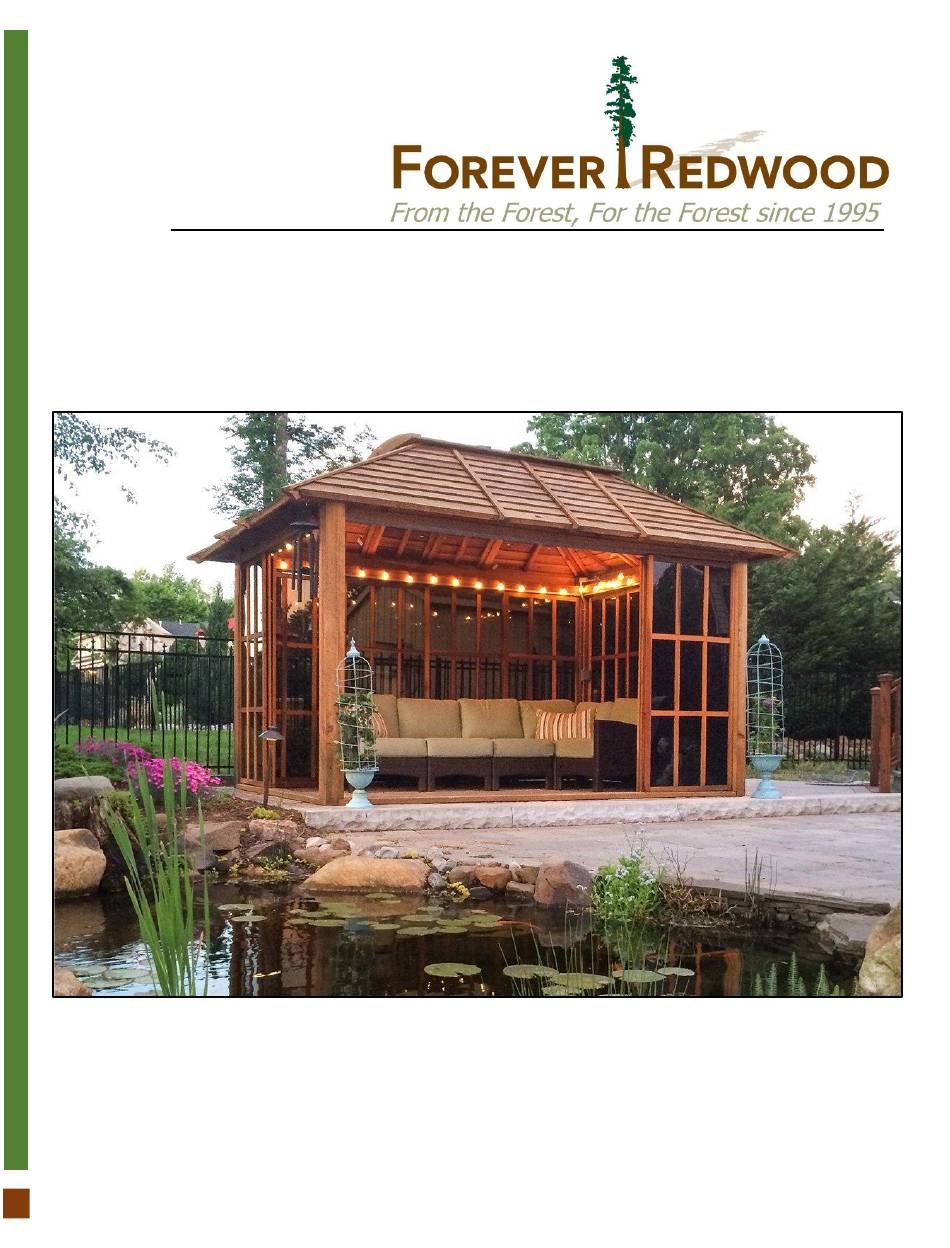

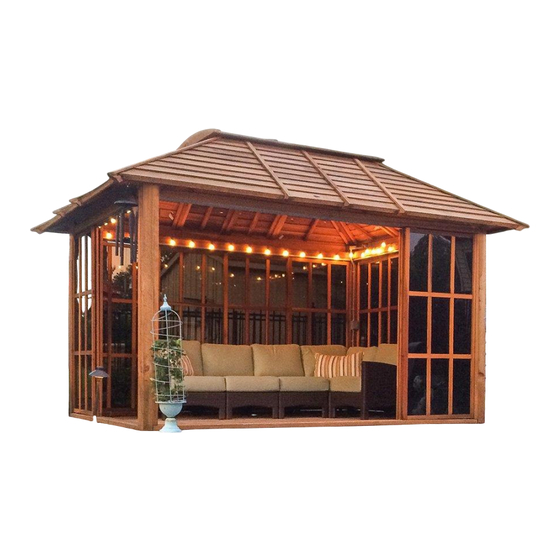

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE SUN GAZEBO WITH SLIDING DOORS...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratchet with the necessary socket or a wrench. P| 1 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 3 Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. P| 2 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 4 Lateral Wall Frame Supports Doors Wood wall panel Exterior trims Interior trims Post trims Roof trims overlapping 68/36 board/overlapping board walls Skylight Central roof panel Diagonal roof panel P| 3 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 5 T-plaques Anchor bases Boots Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. P| 4 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
-
Page 6: Hardware List
5/16” x 4 ½” bolts 4” deck screws 2 ½” deck screws 6” deck screws 3” deck screws 1 5/8” deck screws Note: Dimensions of your hardware will vary depending on size. P| 5 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com... - Page 7 Wood wall panel Exterior trims Interior trims Post trims Roof trims overlapping board/ overlapping board wall Skylight Central roof panel Diagonal roof panel Metal plaques L-plaques T-plaques Anchor bases Boots P| 6 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 8 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 7 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 9 After that, use 5/16” x 3” lag bolts (LB1) to attach each post to the anchor bases (20). Step 2: place the increase floor (3) to the ground. check the marked number on each increase floor and place as drawings shown. P| 8 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 10 Step 4: Use 6” deck screws (DS3) to attach the floor frame (4) and the wall frames with metal rails (5) to the lateral wall frames (6). Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 9 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 11 Step 6: Use 3/8” x 3” lag bolts (LB2) to attach the wood wall panel (9) to the posts, and use 3” deck screws (DS4) to attach the wall frame to the floor panels. check the marked number on each wood wall frame and place as drawings shown. note: remove the boards necessary for panel installation. P| 10 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 12 Step 7: Use 2 ½” deck screws (DS2) to attach the wood wall frames together. note: remove the boards necessary for panel installation. Step 8: Remove the central rails from the wall frames with metal rails (5). Metal Rails Metal P| 11 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 13 Step 10: Use 5/16” x 2 ½” lag bolts (LB5) to attach the L- plaques (19) to the roof frames. After that, use 5/16” x 3” lag bolts (LB1) to attach the T-Supports (20) to the roof frame and to wall frames. P| 12 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 14 Step 12: Attach the exterior/interior floor trims (10,11) to the floor with 3” deck screws (DS4). check the marked number on each exterior trim and place as drawings shown. P| 13 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 15 Step 14: Attach the central roof panels (15) to the skylight (15) with 3” deck screws (DS4) and use 3/8” x 8” lag bolts (LB6) to attach the central roof panels (16) to the roof frame. check the marked number on each roof panels and place as drawings shown. P| 14 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 16 Step 16: Attach corner roof panels (17) to the metal plaques (18) with 5/16” x 4 ½” bolts (BL1) and use 3/8´´ x 8´´ lag bolts (LB6) to attach the corner roof panels (17) to the roof frame. check the marked number on each roof panels and place as drawings shown. P| 15 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 17 Step 17: Attach the roof panels (17) together with 2 ½” deck screws (DS2) Step 18: Place the roof boards that were removed from the corner roof panels. Deck Screws P| 16 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 18 Step 19: Attach the roof panels together with 2 ½” deck screws (DS2). Step 20: Attach the overlapping boards (9) to the wall panels with 1 5/8” deck screws (DS4). P| 17 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 19 Step 22: First, measure the roof panels. After that, cut the Weather Watch 36 in. x 50 ft., 150 sq. ft. Mineral-Surfaced Peel and Stick Roof Leak Barrier Roll to the roof panels P| 18 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 20 Step 24: Use 4” deck screws (DS1) to attach the diagonal trims (13) to the roof panels. Check the marked number on each diagonal trims and place as drawings shown. P| 19 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 21 Step 26: Use 3” deck screws (DS4) to attach the interior trims (11) to the wall frames. Check the marked number on each interior trims and place as drawings shown. P| 20 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 22 Step 28: Use 2 ½” deck screws (DS2) to attach the post trims (12) to the posts. Check the marked number on each post trims and place as drawings shown. P| 21 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 23 Step 30: Finally, Attach the bracket to the Hanging Door Rolling Mechanism by lifting door and inserting adjusting bolt into slot until the bolt head becomes seated. Align the doors by turning adjusting bolt with a wrench. After final adjustment, tighten lock nut down to bracket. P| 22 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
- Page 24 This completes the Gazebo assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 23 SUN GAZEBO WITH SLIDING DOORS – Order 124073 www.ForeverRedwood.com...
