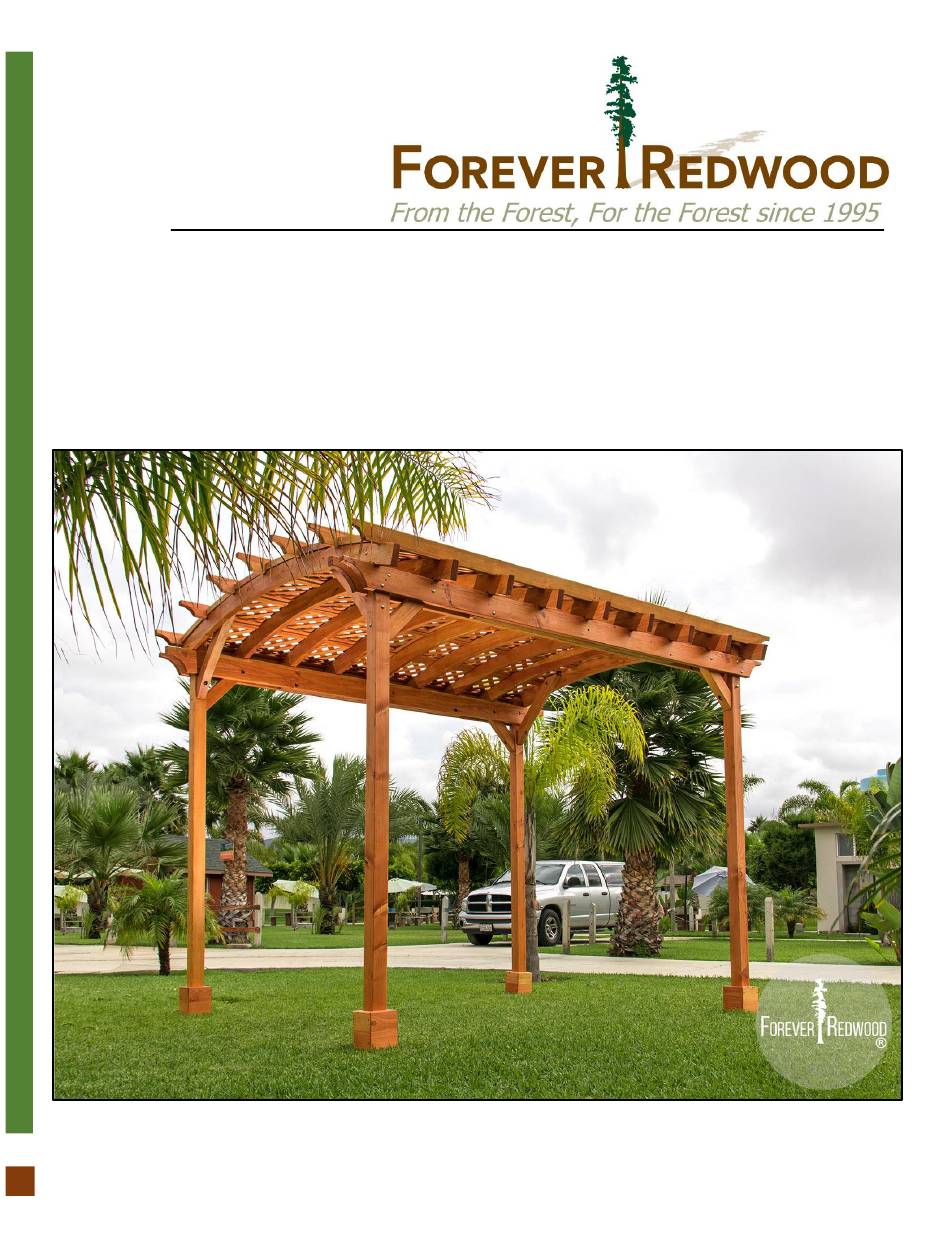

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE SMALL ARCHED PERGOLA KITS...
- Page 2 P| 1 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 3 P| 2 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 4 P| 3 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 5 Step 2: Attach the single supports (2) to the posts with 3/8´´ x 6´´ bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Bolts P| 4 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 6 Step 4: Attach the single supports (2) to the supports with in-between blocking (3), use 3/8´´ x 6´´ bolts (C). The quantity of bolts depends on the length of the supports. 3/8´´ X 6´´ Bolts P| 5 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 7 Step 6: Attach the main knee braces (5) to the supports with 3/8´´ x 6´´ bolts (C) and to the posts with 3/8´´ x 7´´ bolts (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Bolts 3/8´´ X 7´´ Bolts P| 6 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 8 Step 8: Use 8´´ x 3´´ deck screws (E) to attach the rest of arched rafters (4) to the supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 7 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 9 Step 10.1: Attach the roof lattice panels (8) to the arched rafters with 8´´ x 3´´ deck screw (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 8 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 10 Step 11: Finally, attach the boots (9) to the posts with 8´´ x 3´´ deck screws (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 9 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 11 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 10 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 12 Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Loosen the nut on the bolt rafter. P| 11 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
- Page 13 Step 3: The bolt of the post and the knee brace must be flush with the post. Bolt. Step 4: Swing the knee brace aside. After that, remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 12 SMALL ARCHED PERGOLA KITS www.ForeverRedwood.com...
