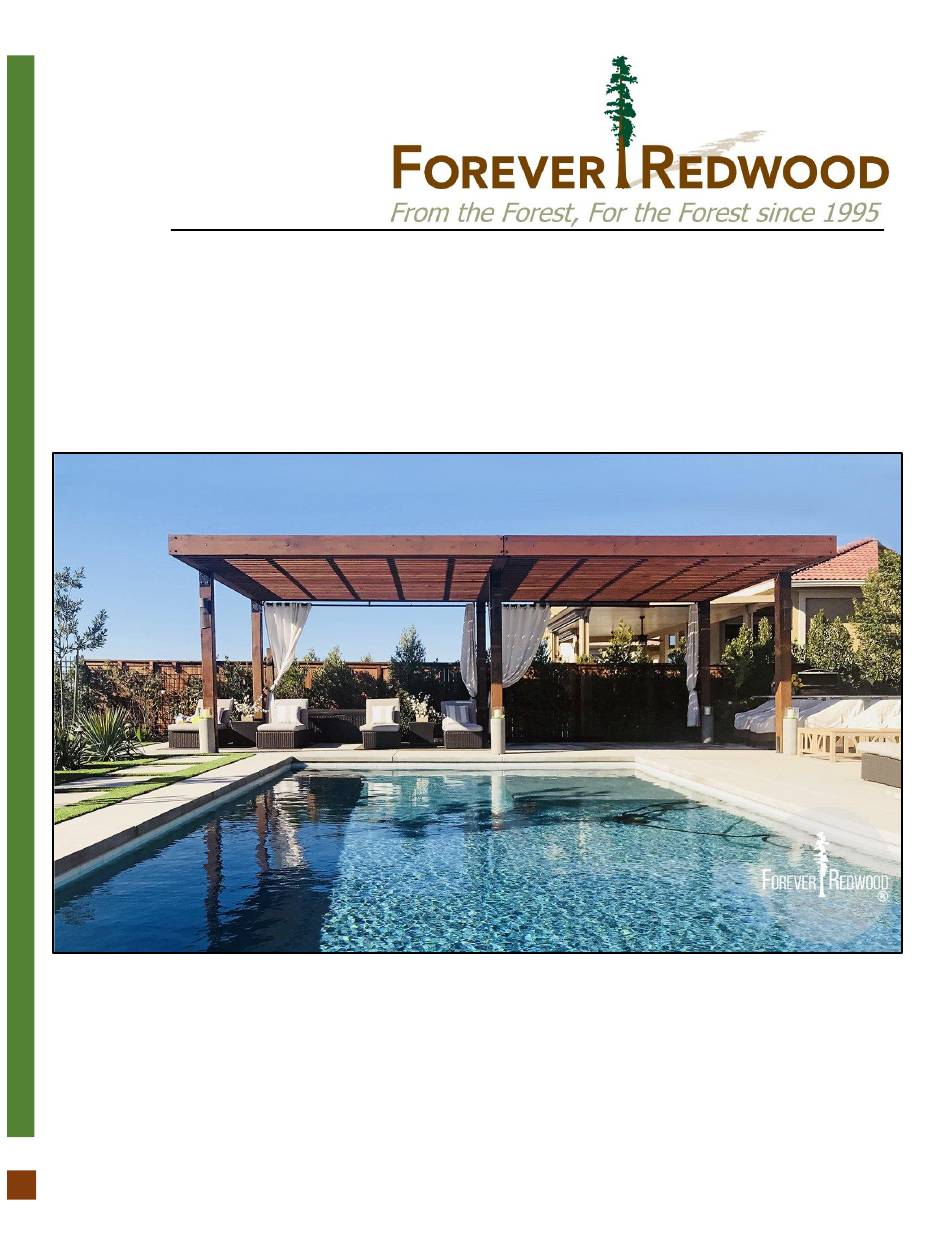

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE SILVERADO MODERN PERGOLA P| 0 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratchet with the necessary socket or a wrench. P| 1 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 3 Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratchet with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. P| 2 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 4 Curtain bases Anchor bases High wind anchor bases Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. P| 3 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
-
Page 5: Hardware List
3/8” x 5” lag bolts 3/8” X 7 ¼” bolts 3/8” X 8” bolts 3/8” x 10 ½” bolts 3” deck screws 2” Deck Screws Note: Dimensions of your hardware will vary depending on size. P| 4 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com... - Page 6 Supports with In-Between Blocking-B Supports with In-Between Blocking-C Rafter In-between blocking cover increase of rafter Slat Curtain roads Ceiling fan base L-plaques cover Boots L-plaques Curtain bases Anchor bases High wind anchor bases P| 5 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 7 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 6 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 8 Step 2: Use 3/8” X 7 ¼” bolts (BL1) and 3/8” X 8” bolts (BL2) to attach the single Supports-B (3) to the posts (1). Check the marked on each support and place as drawings shown. Note: Don’t completely tighten yet the bolts– you will need the install the supports with in between blocking first. P| 7 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 9 After that use 3/8” X 7 ¼” bolts (BL1) to attach the supports together. Check the marked numbers on each support with in-between blocking and place as drawings shown. B-12 B-10 P| 8 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 10 Step 6: Place the supports with in between blocking-B&C (6, 7) into the post notches. Return to the bolts described in the step 3 and tighten fully. After that use 3/8” X 7 ¼” bolts (BL1) to attach the supports together. Check the marked numbers on each support with in-between blocking and place as drawings shown. P| 9 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 11 Step 7: Use 3/8” x 10” lag bolts (LB2) to attach the supports together. Step 8: Use 3/8” x 4” lag bolts (LB3) to attach the supports together. Check the marked numbers on each support and place as drawings shown. P| 10 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 12 Step 9: Use 3/8” x 10” lag bolts (LB2) to attach the supports together. Check the marked numbers on each support and place as drawings shown. Step 10: Use 3” deck screws (DS1) to attach the in-between blocking cover (9) to the supports with in-between blocking. P| 11 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 13 Step 11: Use 3/8” x 2 ½” lag bolts (LB4) to attach the L-Plaques (16) and curtain bases (17) to the posts and to the supports. Step 12: Use 2” Deck Screws (DS2) to attach the L-plaques cover (14) to the posts and to the supports. P| 12 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 14 Step 14: Attach the rafters (8) to the Increase of rafters (10) with 3” deck screws (DS1). Check the marked on each rafter and place as drawings shown (C-1 at C-52). C-52 P| 13 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 15 Step 16: Use 3/8” x 10 ½” bolts (BL3) to attach the ceiling fan base (13) to the rafters (8). Check the marked on each ceiling fan and place as drawings shown. P| 14 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 16 Step 17: Put the curtain roads (12) in place. Step 18: Finally, attach the boots (15) to the posts with 3” deck screws (DS1). P| 15 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
- Page 17 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 16 THE SILVERADO MODERN PERGOLA www.ForeverRedwood.com...
