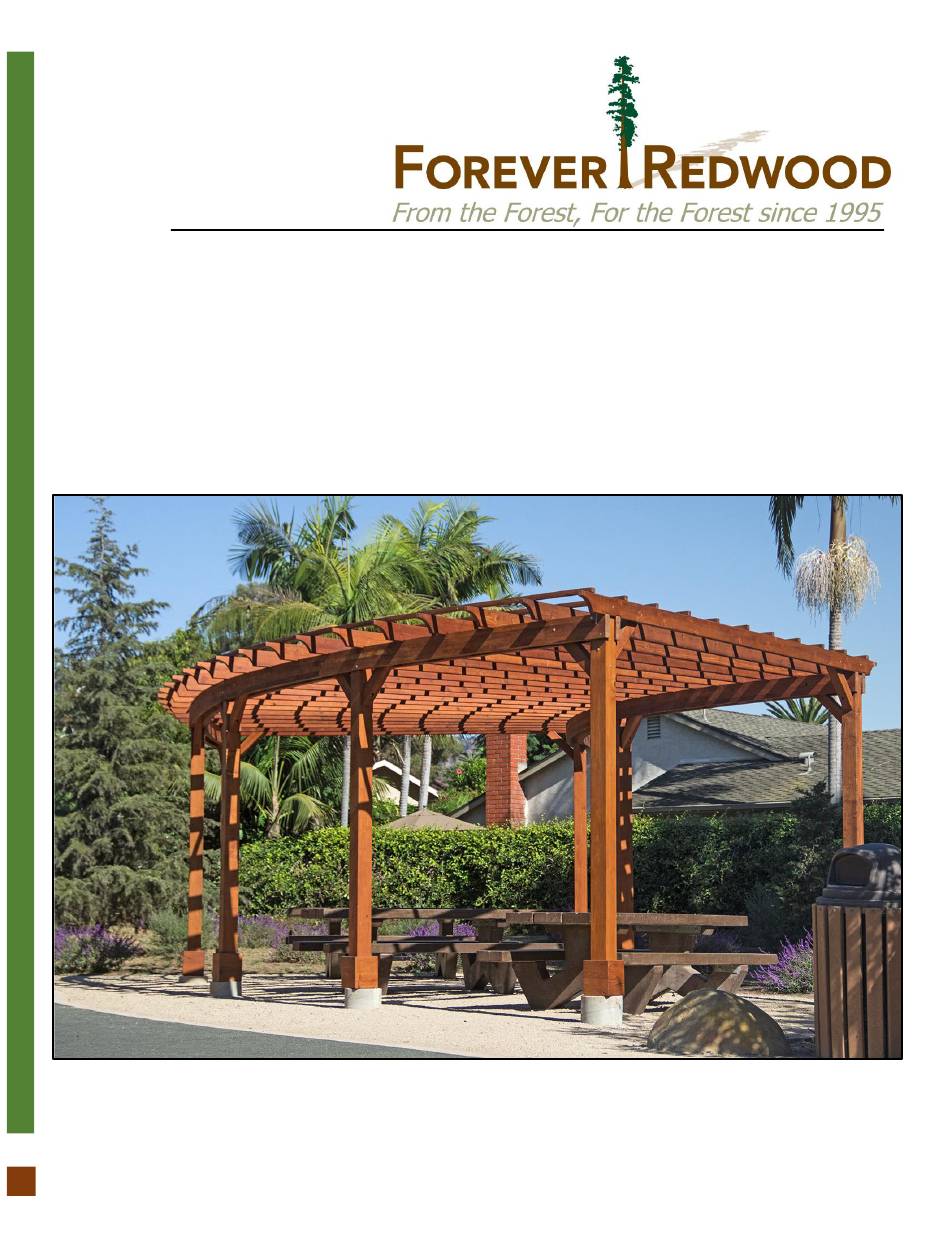

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE FAN SHAPED PERGOLA KIT...
- Page 2 P| 1 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 3 P| 2 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 4 P| 3 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 5 After that, use 5/16´´ X 3´´ lag bolts (B) to attach each post to its respective anchor base. 5/16´´ X 3´´ Lag Bolts All options of posts (No posts decorative trim, vertical posts decorative trim and horizontal posts decorative trim) will be installed in the same way. P| 4 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 6 Step 4: Use 3/8´´ x 7 ½´´ bolts (D) to attach the supports (2) together. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7 ½´´ Bolts P| 5 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 7 Step 6: Use 3/8´´ X 7 ½´´ bolts (D) to attach the perimeter rafters (4) to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7 ½´´ Bolts P| 6 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 8 Step 8: Use 3/8´´ x 5´´ bolts (H) to attach the secondary knee braces (6) to the perimeter rafters and 3/8´´ x 10 bolts (G) to attach to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 5´´ Bolts 3/8´´ X 10´´ Bolts P| 7 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 9 Step 10: Use 3´´ deck screws (I) to attach the Slats (7) to the rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 8 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 10 Step 11: Finally, attach the boots (8) to the posts with 3´´ deck screws (I). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 9 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
- Page 11 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 10 FAN SHAPED PERGOLA KIT www.ForeverRedwood.com...
