Summary of Contents for Forever Redwood THE STOA PAVILIONS

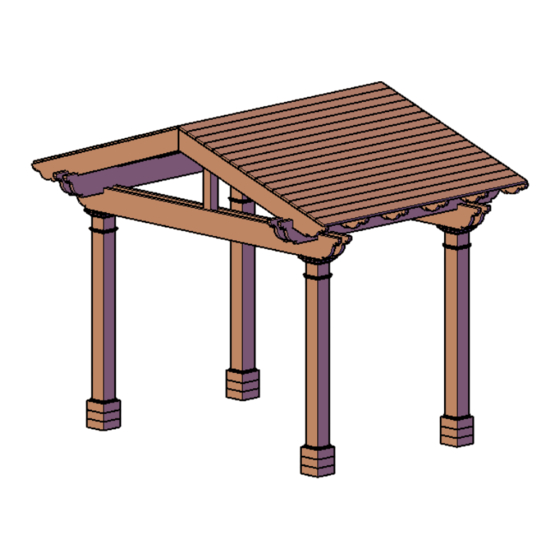

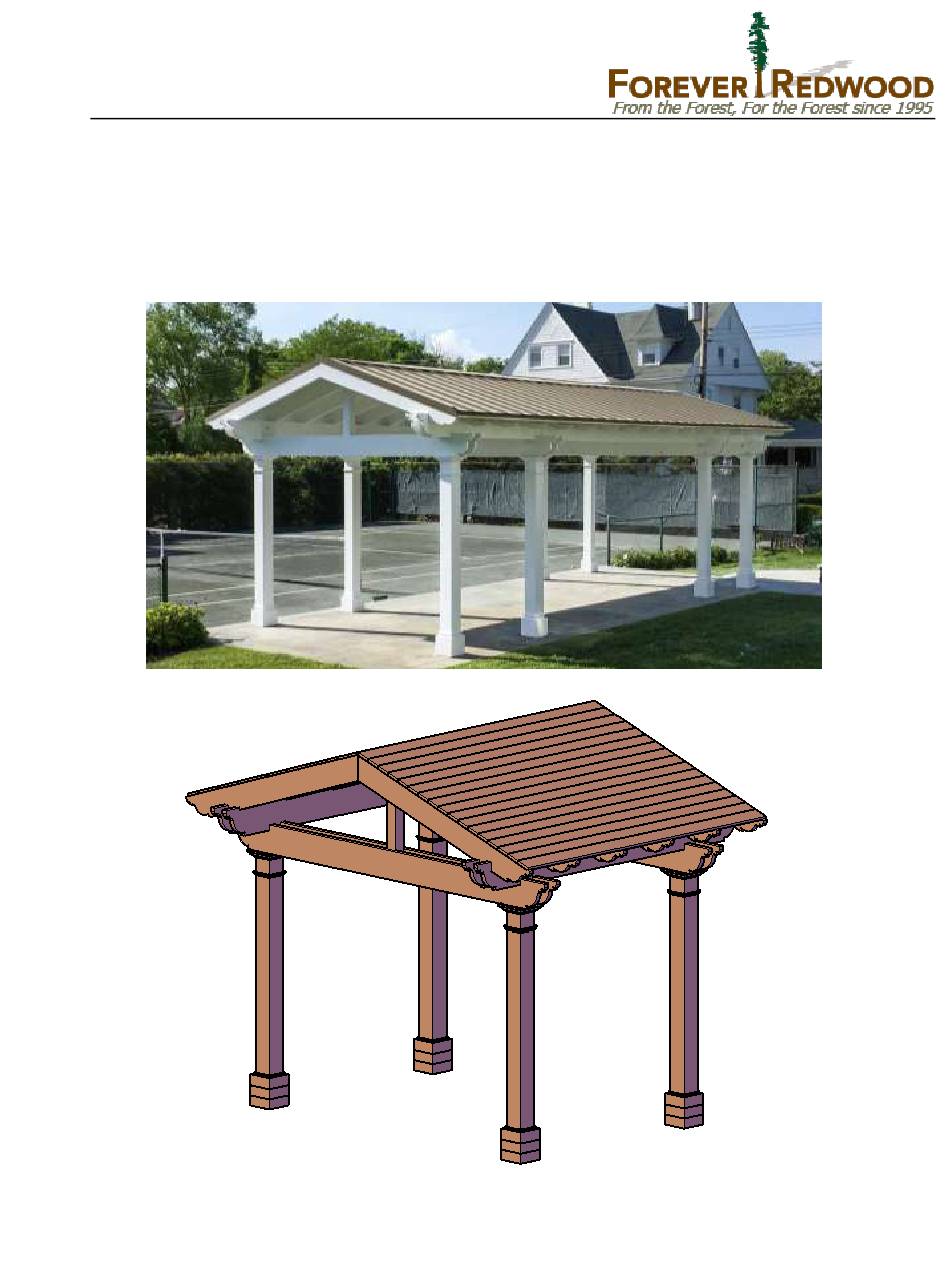

- Page 1 ______________________________________________________ 866.332.2403 (Toll Free); 7am-7pm Pacific Time, Monday-Saturday Assembly instructions for: THE STOA PAVILIONS The Stoa Pavilions www.foreverredwood.com...
- Page 2 Depending on Hardware: Bolts and deck screws Deck Screws Bolts, washers and nuts size Hurricane anchors Anchors (U brackets, Gale Wind or (if you ordered) hurricane anchors) Gale Wind brackets Ceiling Fan base (if chosen) The Stoa Pavilions www.foreverredwood.com...
- Page 3 Note: print the drawings that you approved before start the construction, they are needed to see the distances between the posts. Step 1. Attach the post to the ground. There are different ways to do it. Please see the How to anchor your pergola document. The Stoa Pavilions www.foreverredwood.com...
- Page 4 This beam must be in the interior of the support and bolted after you attach the supports to posts as shown below: Attach with carriage bolts, washers and nuts. The quantity of bolts depends on supports length. Blocks between the supports The Stoa Pavilions www.foreverredwood.com...
- Page 5 Attach small post to dual supports with two bolts (8 ”x 3/8”) washers & nuts. (Match numbers). Tap the bolt all the way into the wood to set it, then add a washer and nut and lightly tighten. Repeat this step with the other side. The Stoa Pavilions www.foreverredwood.com...
- Page 6 There are 8 screws used per center beam (4 per small post). Step 6. Attach corner rafter to dual supports and center beam with galvanized deck screws (3" x #8). Repeat this step in the other side (Corner rafter and dual supports). The Stoa Pavilions www.foreverredwood.com...
- Page 7 This completes the pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. The Stoa Pavilions www.foreverredwood.com...
