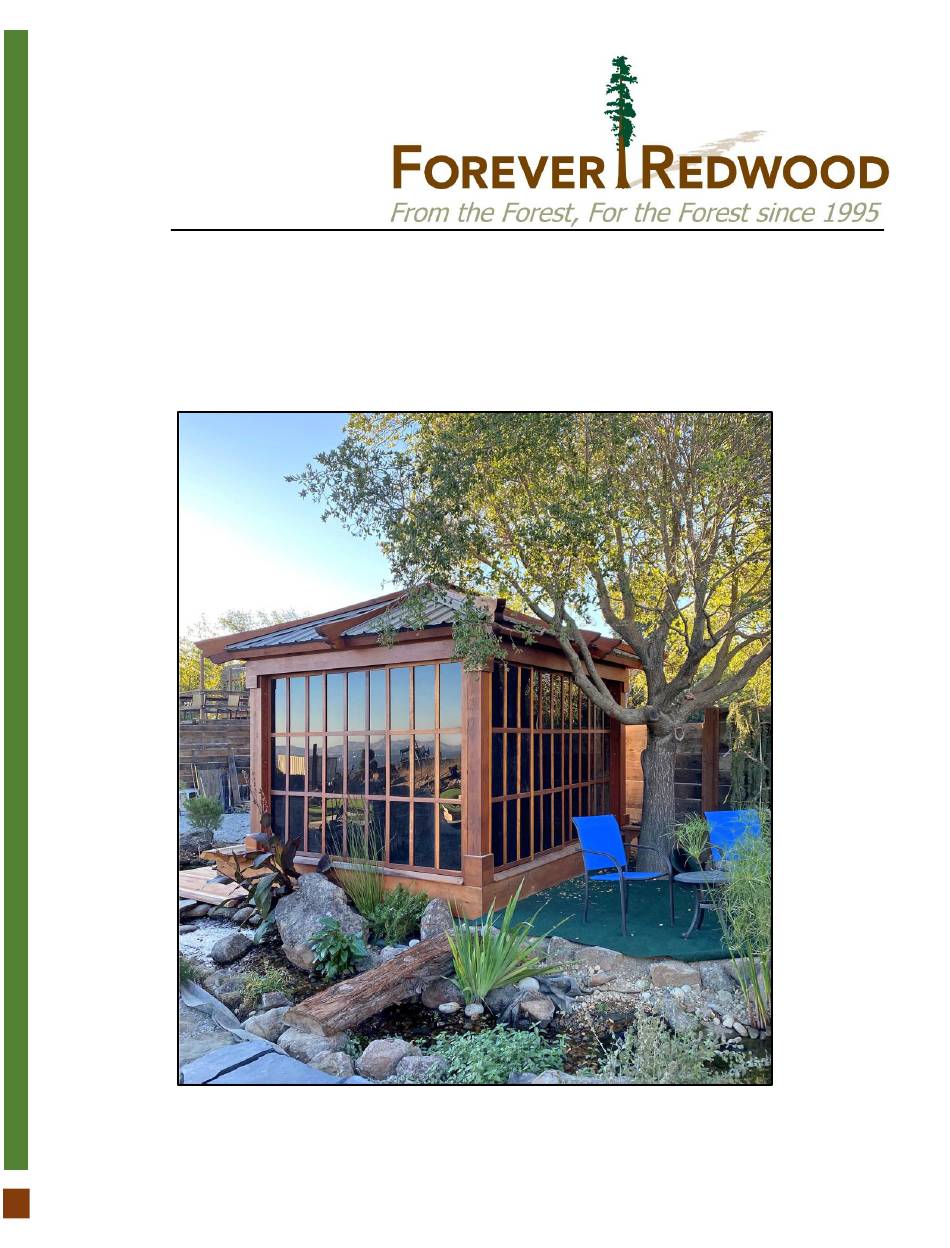

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE SUN GAZEBO WITH SLIDING DOORS...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratchet with the necessary socket or a wrench. P| 1 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 3 Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. P| 2 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 4 Lateral Wall Frame Supports Doors Exterior trims Interior trims Post trims top corner roof panel Roof trims Ridge beam top ridge beam Top ridge beam cover Central roof panel P| 3 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 5 T-plaques Anchor bases Boots Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. P| 4 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
-
Page 6: Hardware List
3” deck screws 5/16” x 2 ½’ bolts 5/16´´ x 4´´ bolts 5/16” x 3” bolts #10 X ¾´´ Wood Screw Note: Dimensions of your hardware will vary depending on size. P| 5 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com... - Page 7 Roof trims Ridge beam Top ridge beam Top ridge beam cover Central roof panel Diagonal roof panel Steel roof panels Metal roof trims Metal plaques L-plaques T-plaques Anchor bases Boots P| 6 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 8 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 7 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 9 Step 2: Use 5” deck screws (DS1) and 4” deck screws (DS2) to attach the floor frame (4) and the wall frames with metal rails (5) to the lateral wall frames (6). Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 8 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 10 Step 3: Use 3/8” x 3 ½” lag bolts (LB2) to attach the wall frames to the posts. check the marked number on each wall frame and place as drawings shown. Step 4: Use 3/8” x 3 ½” anchor bolts (AB2) to attach the frame walls (3) to the ground. P| 9 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 11 Step 6: Remove the central rails from the wall frames with metal rails (5). Metal Rails Metal Rails P| 10 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 12 Step 8: Use 3/8” x 2 ½” lag bolts (LB4) to attach the L- plaques (22) to the roof frames. After that, use 3/8” x 2” lag bolts (LB5) to attach the T-Supports (23) to the roof frame and to wall frames. P| 11 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 13 Step 10: Attach the internal floor trims (3) to the floor with 2 ½” deck screws (DS3). check the marked number on each internal floor trim and place as drawings shown. P| 12 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 14 Step 12: Attach the central roof panels (17) to the ridge beam (14) with 3/8” x 4” lag bolts (BL7) and use 3/8” x 6” lag bolts (LB3) to attach the central roof panels (17) to the roof frame. check the marked number on each roof panels and ridge beam and place as drawings shown. P| 13 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 15 (18) to the roof frame and to the ridge beam. check the marked number on each roof panels and place as drawings shown (I-1 at I-12). I-12 P| 14 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 16 Step 15: Place the roof boards that were removed from the corner roof panels. Deck Screws Step 16: Attach the roof panels together with 5/16” x 3” bolts (BL3). P| 15 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 17 (16) to the top ridge beam (15). Check the marked number on each top ridge beam and top ridge beam cover and place as drawings shown. P| 16 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 18 Protection to the roof panels. #30 Felt Roof Deck Protection Step 20: First, measures the roof panels, start at the corner. Leave an extra inch along (A) of the steel roof panel. P| 17 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 19 B) short side roof panel. Step 21: Cut the steel roof panels to the above measurements. P| 18 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 20 #10 X ¾” Wood Screws Step 23: Use #10 X ¾´´ Wood Screw (WS1) to attach the Metal Roof Trims (20) to the Roof Panels. #10 X ¾” Wood Screws P| 19 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 21 Step 25: Use 6” deck screws (DS5) to attach the roof trims (13) to the top corner roof panel and use 3” deck screws (DS6). Check the marked number on each roof trims and place as drawings shown (L-1 at L-12). L-12 P| 20 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 22 Step 27: Attach the bracket to the Hanging Door Rolling Mechanism by lifting door and inserting adjusting bolt into slot until the bolt head becomes seated. Align the doors by turning adjusting bolt with a wrench. After final adjustment, tighten lock nut down to bracket. P| 21 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 23 Step 29: Use 3” deck screws (DS6) to attach the exterior trims (9) to the wall frames. Check the marked number on each exterior trims and place as drawings shown. P| 22 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
- Page 24 This completes the Gazebo assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 23 SUN GAZEBO WITH SLIDING DOORS – Order 122908 www.ForeverRedwood.com...
