ASSEMBLY INSTRUCTIONS FOR THE
SEBASTOPOL PERGOLAS

Advertisement

loading
Need help?

Need help?

Do you have a question about the SEBASTOPOL PERGOLAS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Forever Redwood SEBASTOPOL PERGOLAS

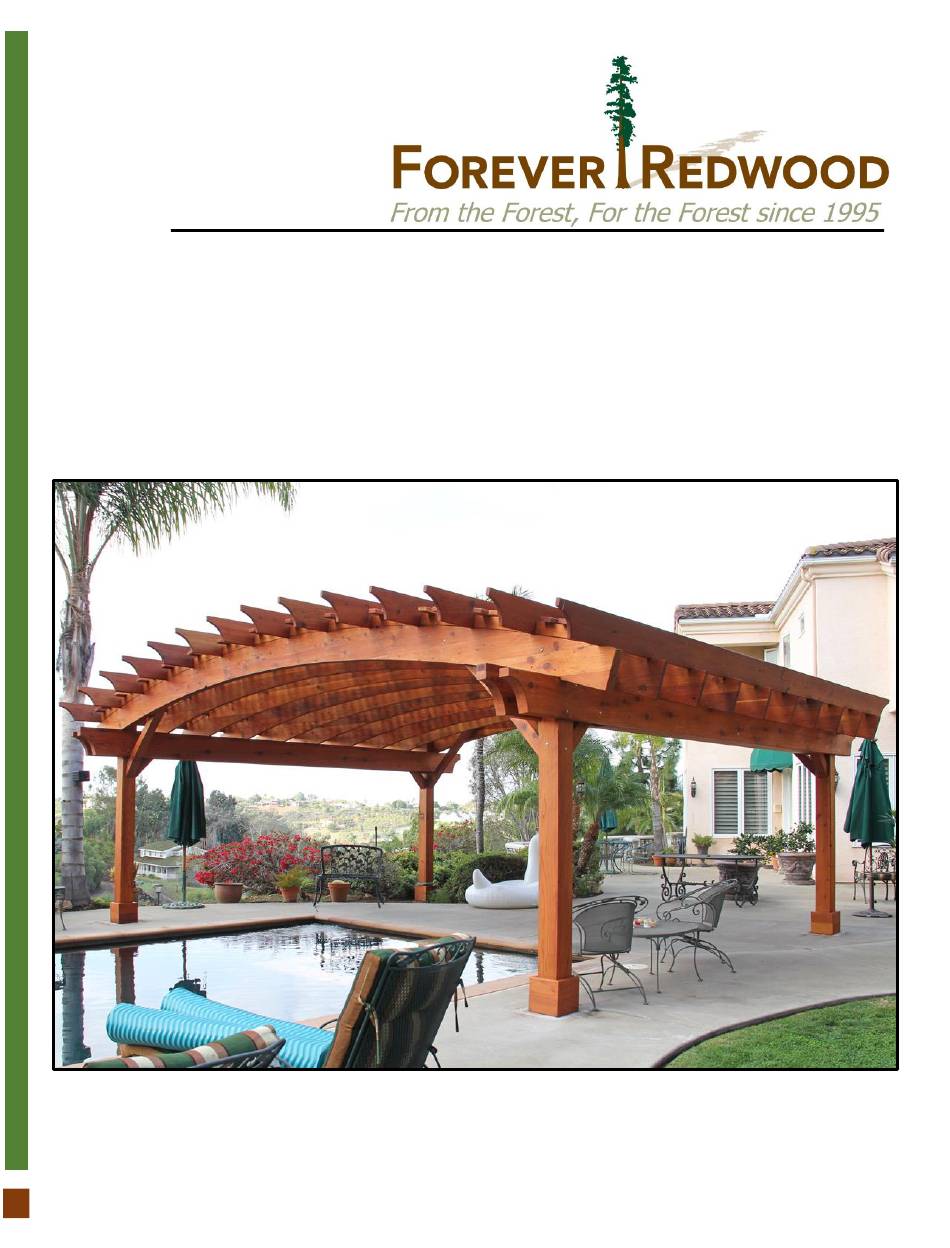

  • Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE SEBASTOPOL PERGOLAS...
  • Page 2 P| 1 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 3 P| 2 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 4 P| 3 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 5 Step 2: First attach the single supports (2) to the posts (1) with 3/8´´ X 11 ½´´ bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 11 ½´´ Bolts P| 4 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 6 Step 4: Attach the single supports (2) to the supports with in-between blocking (3), use 3/8´´ X 11 ½´´ bolts (C). The quantity of bolts depends on the length of the supports. 3/8´´ X 11 ½´´ Bolts P| 5 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 7 Step 6: Attach the main knee braces (5) to the posts with 3/8´´ x 12´´ bolts (F) and to the supports with 3/8´´ x 11 ½´´ bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 11 ½´´ Bolt 3/8´´ X 12´´ Bolt P| 6 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 8 Step 8: Use 8´´ x 3´´ deck screws (E) to attach the other arched rafters (7) to the supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3’’ Deck Screws P| 7 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 9 3’’ Deck Screws Step 10: Finally, attach the boots (10) to the posts with 8´´ x 3´´ deck screws (E). 3’’ Deck Screws P| 8 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 10 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 9 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 11 HOW TO REMOVE THE ELECTRICAL WIRING TRIM FROM THE POST? Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Loosen the nut on the bolt support. P| 10 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
  • Page 12 Step 3: The bolt of the post and the brace must be flush with the post. Bolt. Step 4: Swing the brace aside. After that, remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 11 SEBASTOPOL PERGOLAS www.ForeverRedwood.com...
