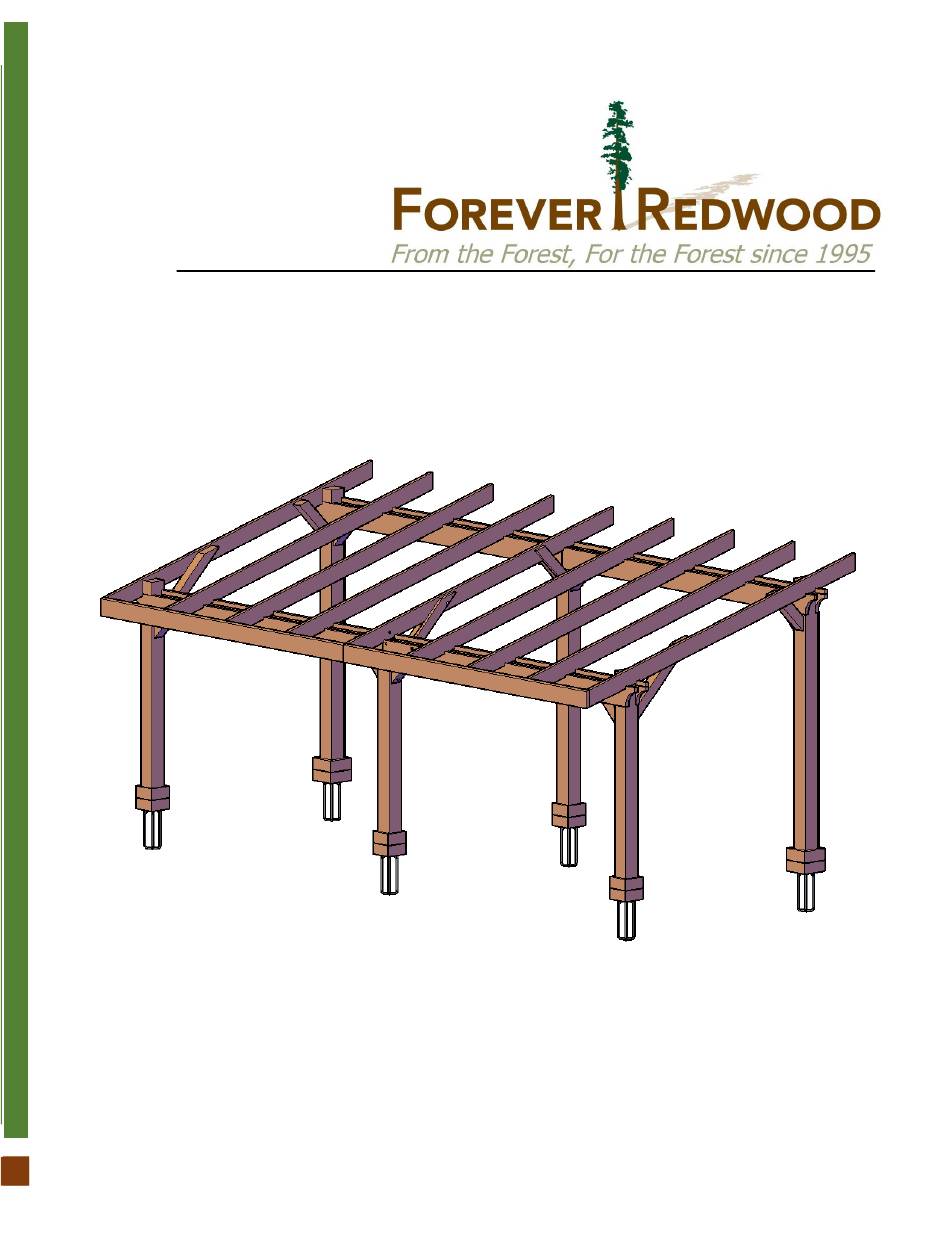

- Page 1 619-639-7503 or 619-677-1965 -Direct Lines for the Engineering Department 7am – 5pm Pacific Time, Monday - Friday ASSEMBLY INSTRUCTIONS FOR THE SOLAR PERGOLA MRE-Formato-4-7-043 Rev. A NCDOCT0623-096...
- Page 2 NOTE: To assemble your product, you need a Hammer, a Ratch, a Drill, and an impact drill. For bigger structures, a forklift may be needed too. Required Tools (Are not included in your hardware packing). PROCESS TO INSTALL THE HARDWARE PROVIDED. To install the bolts.
- Page 3 To install the lag bolts. Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratchet with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws.
-
Page 4: Hardware List
CONTENT OF BOXES Qty. Description Drawing Posts Single Supports Supports with In-Between Blocking Rafters Fascias Main Knee Braces Secondary Knee Braces Boots High wind Anchor bases Electrical trims Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. - Page 5 DESCRIPTION Posts Single Supports Supports with In-Between Blocking Rafters Fascias Main Knee Braces Secondary Knee Braces Boots High wind Anchor bases Electrical trims MRE-Formato-4-7-043 Rev. A NCDOCT0623-096...
- Page 6 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. MRE-Formato-4-7-043 Rev. A NCDOCT0623-096...
- Page 7 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
- Page 8 Step 3: Place the supports with in between blocking into the post notches. After that, return to the bolts described in the step 2 and tighten fully. Check the marked numbers on each support with in-between blocking and place as drawings shown. Note: put silicone in joints of the supports with in-between blocking.
- Page 9 Step 5: Attach the main knee braces (6) to the supports with 3/8” x 7 ¾” bolts (BL1) and to the posts with 3/8” x 12” bolts (BL2) with washer and nuts. Check the marked numbers on each main knee braces and place as drawings shown. D-14 D-11 Step 6: Attach the central knee braces (6) to the supports with 3/8”...
- Page 10 Step 7: Attach the perimeter rafter (4) to the posts with 3/8” x 8 ½” bolts (BL4) with washer and nuts. Check the marked numbers on each rafter and place as drawings shown. Step 8: Attach the perimeter rafter (4) to the posts with 3/8” x 7 ¾” bolts (BL1) with washer and nuts. Check the marked numbers on each rafter and place as drawings shown.
- Page 11 Step 9: Attach the secondary knee braces (7) to the rafters with 3/8” x 6 ¼”” bolts (BL5) and to the posts with 3/8” x 12” bolts (BL2) with washer and nuts. Check the marked numbers on each secondary knee braces and place as drawings shown. D-13 D-12 Step 10: Attach the secondary knee braces (7) to the rafters with 3/8”...
- Page 12 Step 11: Use 3´´ deck screws (DS1) to attach the rafters (4) to the supports. Check the marked numbers on each rafter and place as drawings shown (D-2 at D-11). Step 12: Use 3” deck screws (DS1) to attach the fascias (5) to the rafters. Check the marked numbers on each facias and place as drawings shown.
- Page 13 Step 13: Use 4” deck screws (DS2) to attach the electrical trims (10) to the rafters. Check the marked numbers on each electrical trim and place as drawings shown. Step 14: Attach the boots (8) to each post with 3” Deck Screws (DS1). MRE-Formato-4-7-043 Rev.
- Page 14 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (619-639-7503 or 619-677-1965) or email us. We are here to support you. MRE-Formato-4-7-043 Rev.
