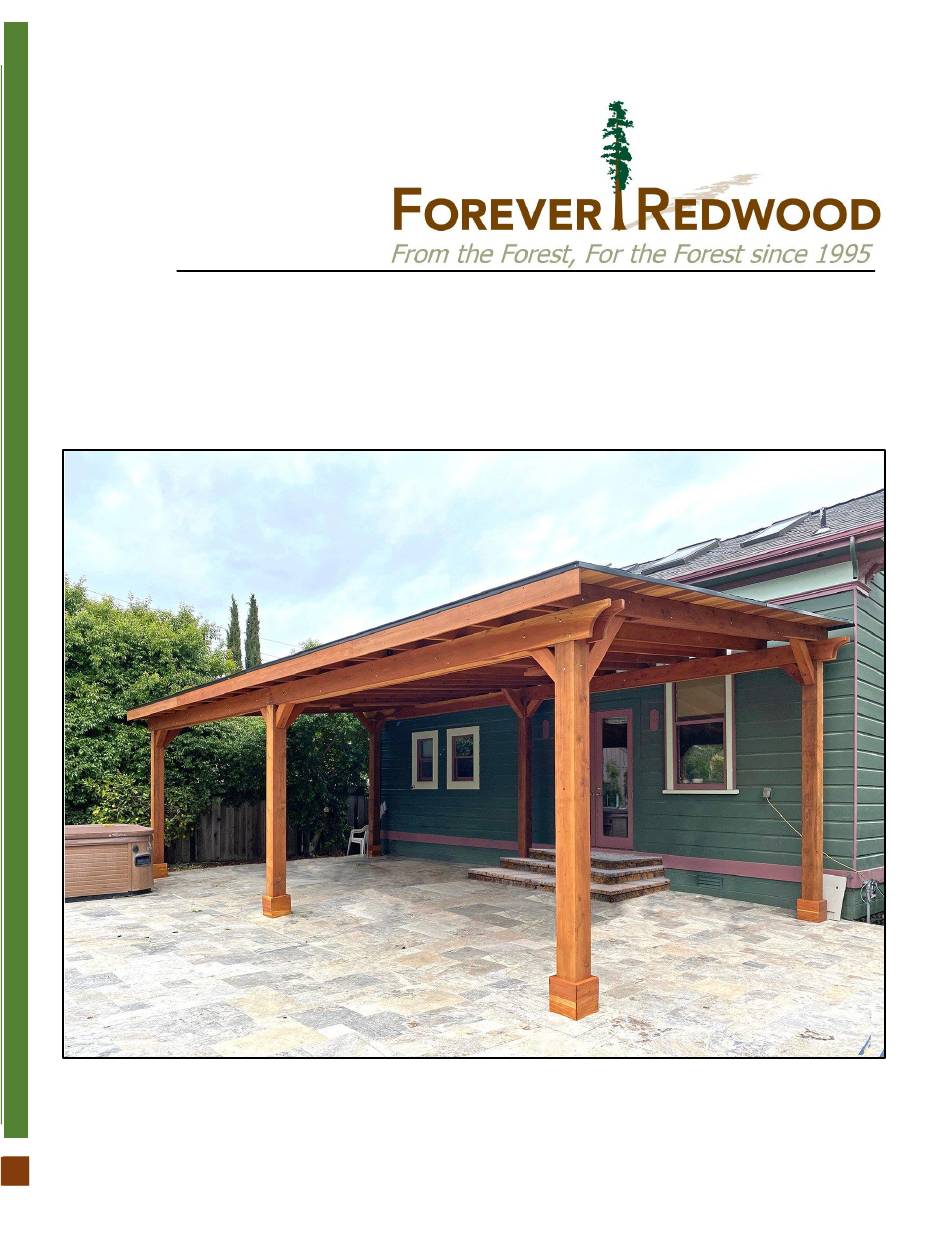

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE SUNSET PATIO PAVILION P| 0 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratchet with the necessary socket or a wrench. P| 1 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 3 Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratchet with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. P| 2 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 4 Ceiling fan base-A Ceiling fan base-B Boots Anchor bases Metal plaques Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. P| 3 SUNSET PATIO PAVILION www.ForeverRedwood.com...
-
Page 5: Hardware List
3/8” x 17” bolts 3/8” x 11 bolts 3/8” x 9 ½” bolts 3/8” x 3 ½” bolts 3´´ deck screws 2” deck screws Note: Dimensions of your hardware will vary depending on size. P| 4 SUNSET PATIO PAVILION www.ForeverRedwood.com... - Page 6 Posts Single Supports-A Supports with In-Between Blocking-A Single support-B Supports with In-Between Blocking-B Rafters Main Knee Braces Secondary Knee Braces Roof boards Fascias Ceiling fan base-A Ceiling fan base-B Boots Anchor bases Metal plaques P| 5 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 7 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 6 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 8 Note: Don’t completely tighten yet the bolts – you will need the install the supports with in between blocking first. Must be flush with the posts. P| 7 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 9 Step 4: Attach the main knee braces (7) to the supports with 3/8” x 7 ¾” bolts (BL1) and to the posts with 3/8” x 12” bolts (BL2) with washer and nuts. Check the marked numbers on each main knee braces and place as drawings shown. C-12 P| 8 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 10 Step 6: Attach the single support-B (4) to the posts with 3/8” x 7 ¾” bolts (BL1) with washer and nuts. Check the marked numbers on each single support-B and place as drawings shown. Note: Don’t completely tighten yet the bolts – you will need the install the supports with in between blocking first. D-12 D-23 P| 9 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 11 Step 8: Attach the secondary knee braces (8) to the rafters with 3/8” x 7 ¾” bolts (BL1) and to the posts with 3/8” x 12” bolts (BL2) with washer and nuts. Check the marked numbers on each secondary knee braces and place as drawings shown. C-13 C-10 C-14 P| 10 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 12 Step 10: use 3/8” x 7 ¾” bolts (BL1) with washer and nuts to attach the single supports-B (4) to the supports-B with in-between blocking-B (5). Note: put silicone in joints of the supports with in-between blocking. P| 11 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 13 Step 11: Use 3/8” x 3” (LB1) to attach the supports to the metal plaques (15). Step 12: Use 3´´ deck screws (DS1) to attach the rafters (6) to the supports. Check the marked numbers on each rafter and place as drawings shown (D-1 at D-21). D-21 P| 12 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 14 Step 14: Use 2” deck screws (DS2) to attach fascias (10) to the rafters and to the supports. Check the marked numbers on each fascia and place as drawings shown. P| 13 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 15 Step 16: Use 3/8” x 9 ½” bolts (BL5) to attach the ceiling fan base-B (12) to the rafters and to the supports with 3/8” x 3 ½” bolts (BL6). Check the marked numbers on each ceiling fan and place as drawings shown. P| 14 SUNSET PATIO PAVILION www.ForeverRedwood.com...
- Page 16 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 15 SUNSET PATIO PAVILION www.ForeverRedwood.com...
