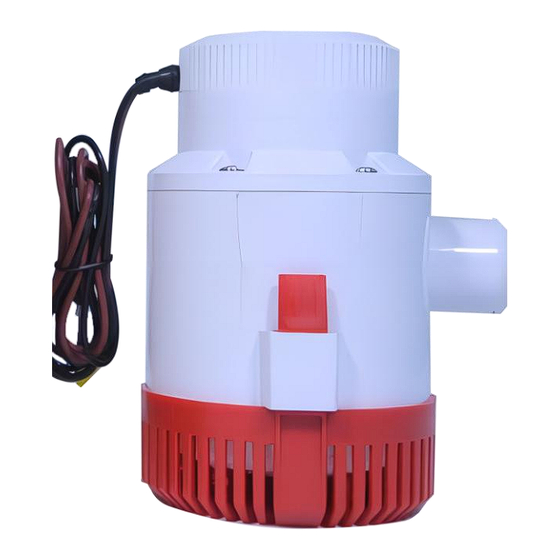

BOAT BILGE PUMP
INSTRUCTIONS
MODEL:NMBP12-G3500-80-12
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR NMBP12-G3500-80-12
Summary of Contents for VEVOR NMBP12-G3500-80-12
- Page 1 BOAT BILGE PUMP INSTRUCTIONS MODEL:NMBP12-G3500-80-12 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 Warning-To reduce the risk of injury, user must read instructions manual carefully. This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.
- Page 4 STEP 2 Determine the desired location for the pump. If only one pump is used it is usually located where the water is deepest in the bilge while the boat is at rest. The installation must allow for complete drainage of the hose. All water pockets must be eliminated by having the hose running level or continuously upward.
- Page 5 STEP 6 Attach 1 1/8"1.D .Hose to the discharge nozzle and fasten with a stainless steel clamp. The hose(Model #80)is recommended because it will not kink when making sharp bends. If your pump is replacing a competitive model with Smaldia meter hose which is hard to replace, you may use the Adaptor Model#69 to adapt to the smaller hose.
- Page 6 STEP 9 fusing To protect your electrical wiring and automatic switch from possible overload install a fuse in the positive(+)lead from the battery.If using a panel switch with a fuse holder, check to see that the proper fuse is being used.
- Page 7 STEP 11 Polarity is important. If it is not correct, the pump rotates backwards.Water will still come out of the discharge nozzle but the flow will be very much reduced. On the pump the correct polarity will be obtained when the brown wire of the pump is connected to the POS or+side of the battery.
-
Page 8: Failure Recovery
FAILURE RECOVERY Symptom possible cause cure Plugged Clean outside of strainer and clean debris strainer from around impeller. Discharge line Clean out hose by back flushing plugged Reduced Low battery Check battery condition and charge if Flow voltage necessary. If hose is kinked because of sharp Kinked bend,convert to hose which will not kink at discharge hose... - Page 9 Something Clean under the float to make sure debris is under float not holding the float up Check to see that the float is loose and free of gummy bilge oil. If float action appears sluggish and/or the float does not move freely intermittent or sporadic operation of the pump may occur.This condition is usually the result of oil and/or Dirt accumulating in and...
- Page 10 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany Tel: +49 1727041930 euvertreter@gmail.com UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom Tel: 01772418127 pooledas123@gmail.com Imported to AUS: SIHAO PTY LTD.
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
