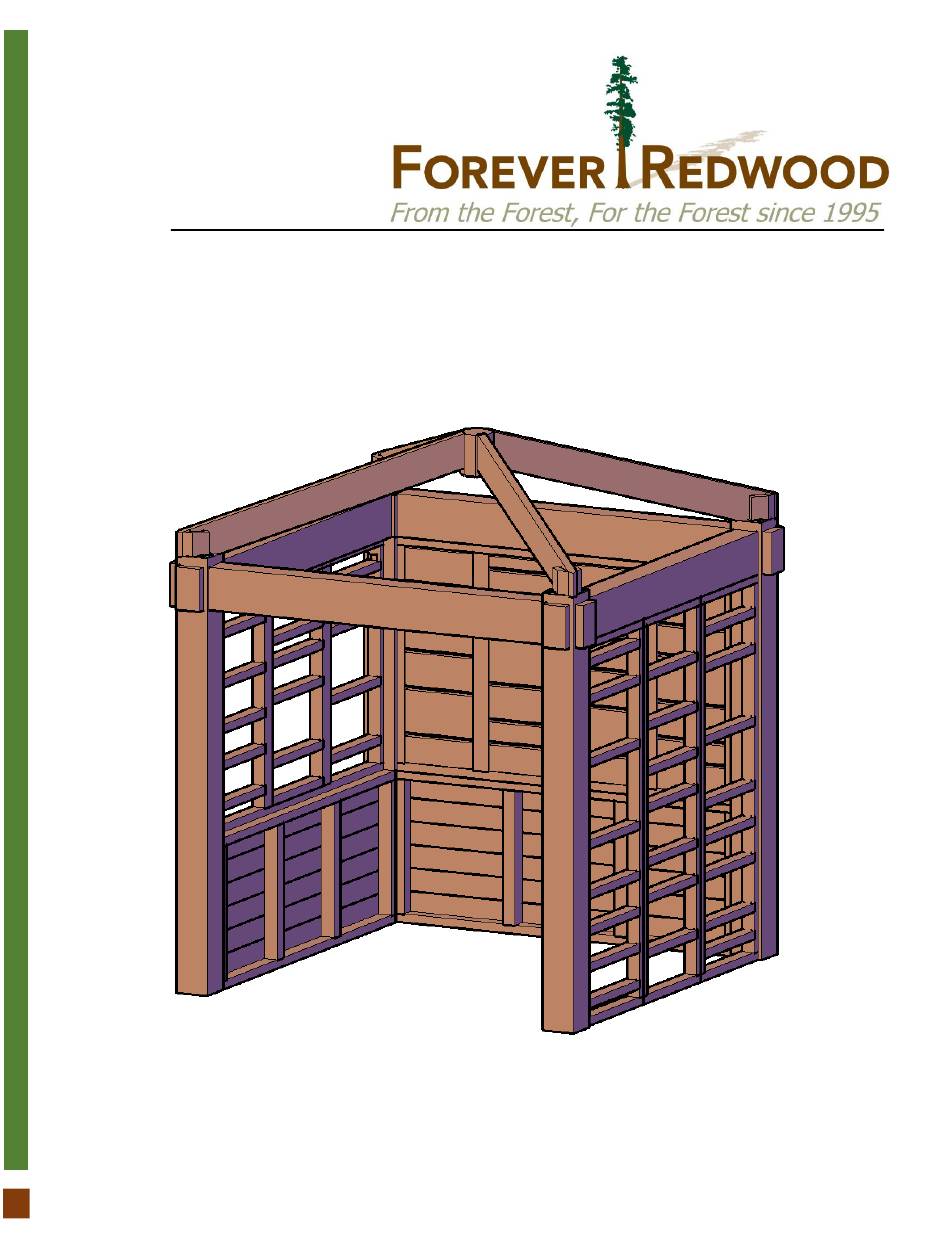

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE CATALINA ISLAND PERGOLA...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratchet with the necessary socket or a wrench. P| 1 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 3 Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratchet with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. P| 2 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 4 Metal plaque cover Diagonal roof support Ridge beam Metal plaques Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. P| 3 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
-
Page 5: Hardware List
3/8” x 2 ½” lag bolts 5/16” x 3 ½” bolts 5/16” x 2 ¾” bolts 2 ½” deck screws 3” deck screws 2” deck screws Note: Dimensions of your hardware will vary depending on size. P| 4 CATALINA ISLAND PERGOLA www.ForeverRedwood.com... - Page 6 Description Post Increase post Supports Increase supports Large lateral panel Short lateral panel Back panel Wood panel Metal plaque cover Diagonal roof support Ridge beam Metal plaques P| 5 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 7 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 6 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 8 Step 1: put the post (1) in place. Step 2: Use 3/8” x 4 ½” lag bolts (LB1) to attach the wood panel (8) to the post. check the marked number on each wall panel and place as drawings shown. P| 7 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 9 (7) to the post (1) with 3/8” x 4 ½” lag bolts (LB1) and to the wood panel (8) with 2 ½” deck Back panel Step 4: attach the screws (DS1). check the marked number on each back panel and place as drawings shown. P| 8 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 10 (BL1). check the marked number on each back panel and place as drawings shown. Step 6: Use 3/8” x 8” lag bolts (LB2) to attach the support (3) to the post (1). check the marked number on each support and place as drawings shown. P| 9 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 11 Step 7: Use 3” deck screws (DS2) to attach the increase supports (4) to the post. Step 8: Use 3” deck screws (DS2) to attach the walls to the supports P| 10 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 12 Step 9: Use 2” deck screws (DS3) to attach the increase post (2) to the post. Step 10: Attach the metal plaques (12) to the support with 3/8” x 2 ½” lag bolts (LB3). P| 11 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 13 (10) to the ridge beam (11). check the marked number on each roof support and place as drawings shown. Step 12: Finally, attach Metal plaque cover (9) to the post with 2 ½” deck screws (DS1). Check the marked number on each Metal plaque cover and place as drawings shown. P| 12 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
- Page 14 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 13 CATALINA ISLAND PERGOLA www.ForeverRedwood.com...
