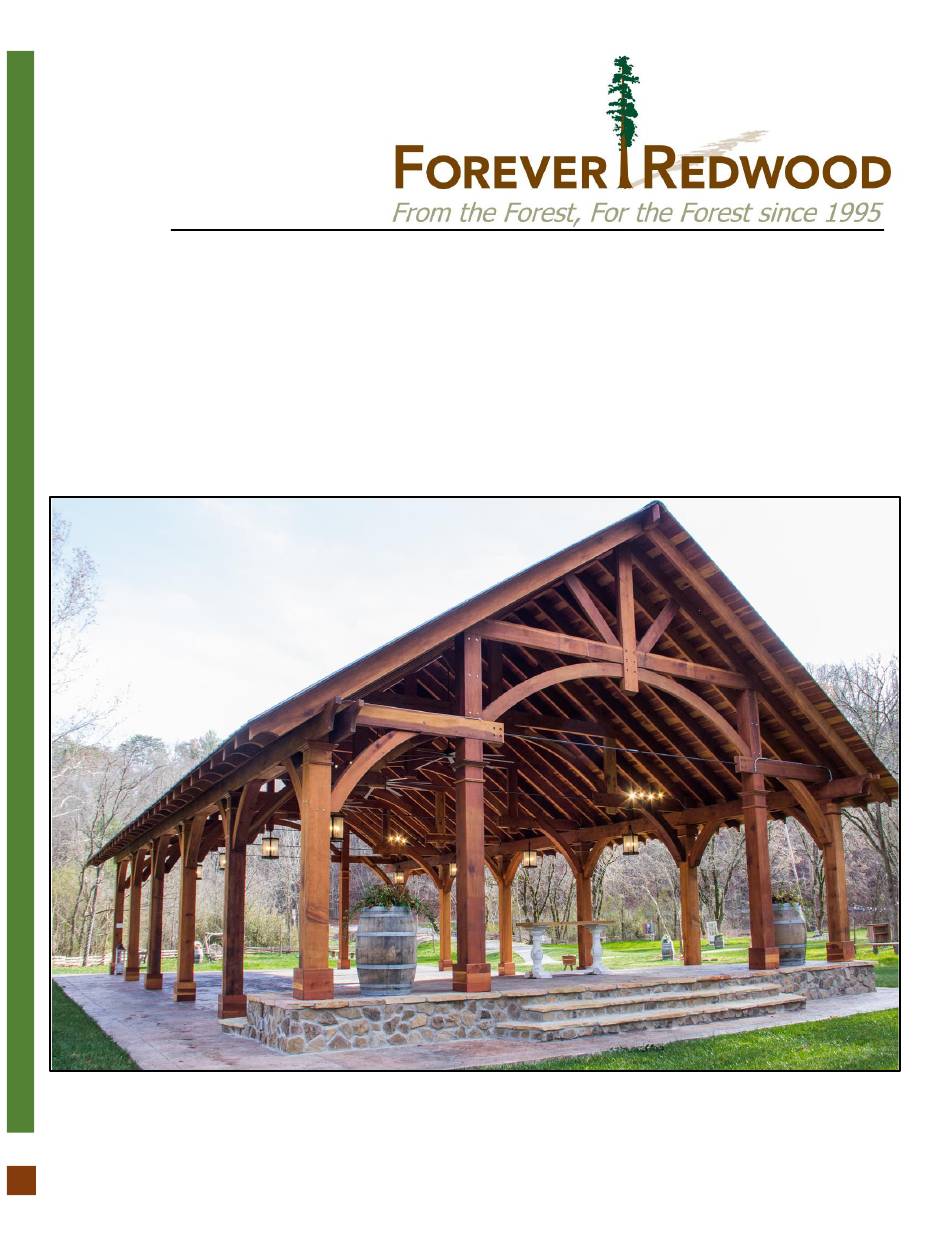

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE CARDINAL´S NEST PAVILIONS...
- Page 2 P| 1 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
- Page 3 P| 2 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
- Page 4 P| 3 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
- Page 5 P| 4 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
- Page 6 P| 5 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
- Page 7 P| 6 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
- Page 8 P| 7 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
- Page 9 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
- Page 10 Step 2: Attach the moldings A&B (4,5) to each post A&B (2,3) with 2´´ deck screws (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. Moldings Step 3: Set your posts A&B (2,3) in the saddle of the anchor bases. Drill a ø ¼´´ hole in the post prior to anchoring to facilitate the ratcheting of the hardware.
- Page 11 Step 4: Attach the external supports A&B (6,7) to the posts-A with 3/8´´ x 11´´ bolts (H). Each part has a series of numbers that indicate where to attach the part with the corresponding number. Note: The bolts must be flush with the posts. 3/8´´...
- Page 12 Step 6: Put up the internal supports A&B (6,7) into the post notches, as shown, and attach with the previously installed bolts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. Assemble the Perimeter Hammer-Beam Roof Trusses Step 7: Place the metal plaques in their place.
- Page 13 Step 8: Place the hammer beam-cover (1.3) into the post-B notch. After that, drill the posts-B with the 3/8’’drill bit. Each part has a series of numbers that indicate where to attach the part with the corresponding number. Post-B Step 9: Use 3/8´´ x 12´´ lag bolts (A) to attach the rafters (1.1) to the hammer-beams (1.2). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 14 Step 10: Use 3/8´´ x 12´´ lag bolts (A) to attach the king post (1.5) to the rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 12´´ Lag Bolts Step 11: Attach the collar tie (1.6) to the rafters with 3/8´´...
- Page 15 Step 12: Use 3/8´´ x 12´´ lag bolts (A) to attach the struts (1.7) to the rafters and 3/8´´ x 10´´ lag bolts (B) to attach to the collar tie. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´...
- Page 16 Step 14: Use 3/8´´ x 10´´ lag bolts (B) to attach the arches (1.8) to the hammer beams. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 10´´ Lag Bolts Step 15: Attach the king post (1.5) to the rafters with 3/8´´...
- Page 17 Step 16: Use 3/8´´ x 6 ½´´ bolts (C) to attach the king post (1.5) to the arc and to the collar tie. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´...
- Page 18 Step 18: Place the tensors (1.10) on the hammer-beams notches. 1.10 Step 19: Attach hammer-beam covers (1.3) to the hammer-beams with 3’’ deck screws (D). After that, use 3/8’’ x 10’’ lag bolts (B) to attach the arches to the hammer-beam covers. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 19 Step 20: Attach hammer-beam tips (1.4) to the hammer-beams and to the hammer beam-covers with 3´´ Deck Screws (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws Assemble the Central Hammer-Beam Roof Trusses Repeat the steps 7 to 17.
- Page 20 Step 22: Use 3/8´´ x 6´´ bolts (E) to attach to tensors (1.10) to the hammer-beams. Note: The bolts must be flush with the tensor. 1.10 3/8´´ X 6´´ Bolts Repeat the steps 19 & 20. Step 23: Use 3/8´´ x 6´´ bolts (E) to attach the hammer posts (1.9) to the rafters, to the collar tie and to the hammer beams. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 21 Step 24: Attach the hammer posts (1.9) to the arc with 3/8´´ x 12´´ lag bolts (A). After that repeat the Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 12´´ Lag Bolts Step 25: Attach the perimeter roof trusses (1) to the posts-A with 3/8´´...
- Page 22 Step 26: Attach the perimeter roof trusses (1) to the posts-B with 3/8´´ x 9´´ bolts (I). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 9´´ Bolts 3/8´´ X 9´´ Bolts Step 27: Drill holes in the posts-B at the necessary distances.
- Page 23 Step 28: Attach the central roof trusses (1) to the posts-A with 3/8´´ x 9´´ bolts (I). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ x 9´´ Bolts Step 29: A Use 3/8´´ x 11´´ bolts (H) to attach the main knee braces (9) to the supports. After that, attach to the perimeter posts- A with 3/8´´...
- Page 24 Step 30: Drill holes in the secondary knee braces-A (10) at the necessary distances. After that, use 3/8´´ x 7 ½´´ bolts (M) to attach the secondary knee braces-A to the perimeter roof trusses and 3/8’’ x 16´´ bolts (K) to attach to the perimeter posts-A. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 25 Step 32: Use 3/8´´ x 6´´ lag bolts (O) to attach the ridge beams (12) to the roof trusses. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Lag Bolts 3/8´´...
- Page 26 Step 34: Use 3/8´´ x 3´´ lag bolts (B) to attach the metal plaques (21) to the in-between blockings. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 3´´ Lag Bolts Step 35: Attach the rafters (13) to the metal plaques with 5/16´´...
- Page 27 Step 36: Use 3´´ deck screws (Q) to attach the rest of rafters (13) to the supports and 3/8´´ x 6´´ lag bolts (O) to attach to the ridge beams. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´...
- Page 28 Step 38: Use 1 5/8´´ deck screws (R) to attach the roof trims (15) to the roof boards. Each part has a series of numbers that indicate where to attach the part with the corresponding number. Step 39: Use 3´´ deck screws (S) to attach the roof fascia’s (16) to roof trusses and to the rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 29 Step 40: Attach the boots (17) to the posts with 3´´ deck screws (S). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws Step 41: Finally, use 5/16´´ x 5 ½´´ bolts (T) to attach the ceiling fan bases (18) to the rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 30 This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 29 The Cardinal’s Nest Pavilions www.ForeverRedwood.com...
