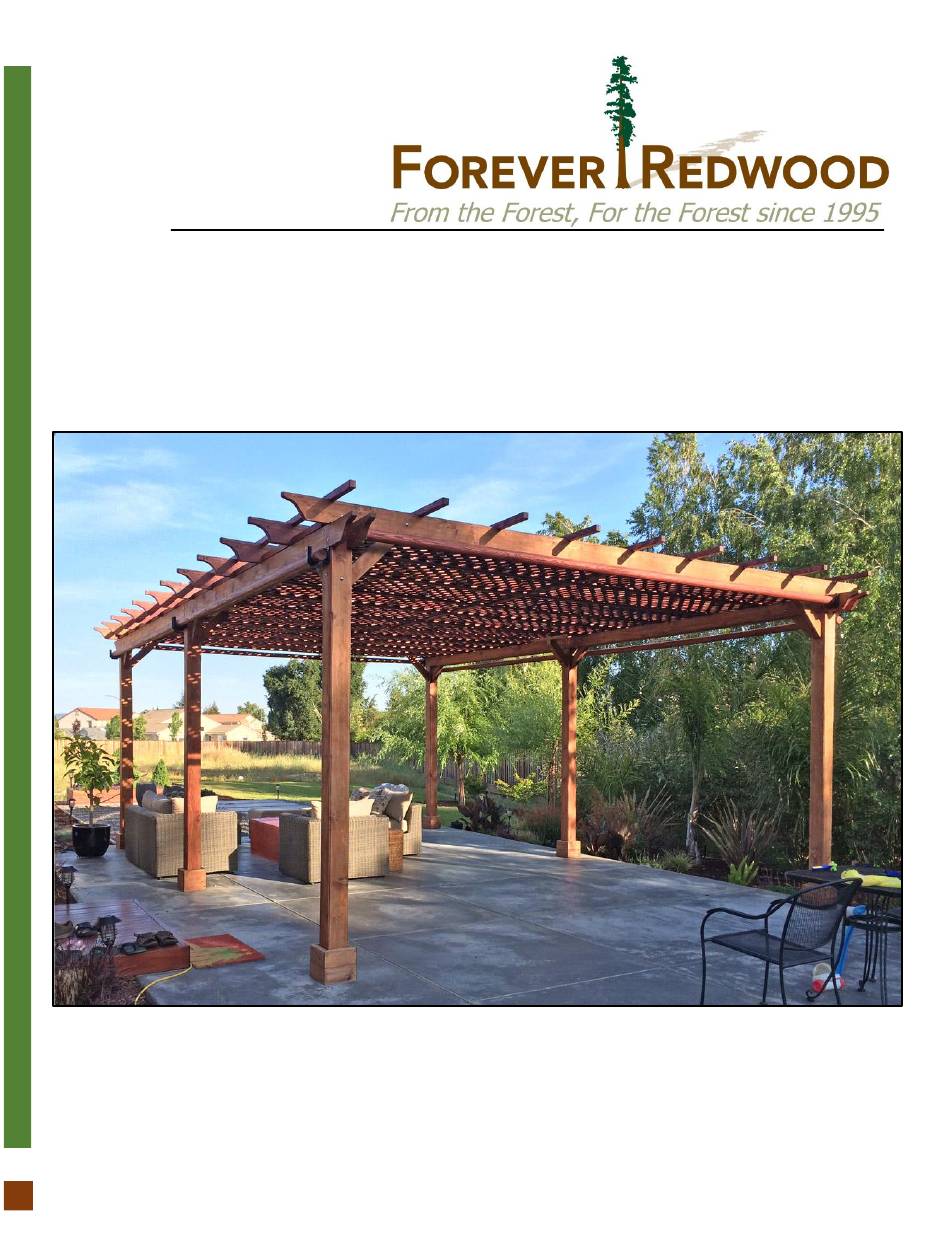

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE LATTICE PERGOLA KIT...
- Page 2 P| 1 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 3 P| 2 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 4 P| 3 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 5 Step 2: Use 3/8´´ X 7´´ bolts (D) to attach the single supports (2) to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7´´ Bolts P| 4 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 6 Each part has a series of numbers that indicate where to attach the part with the corresponding number. Step 4: Attach the single supports to the supports with in-between blocking (3), use 3/8´´ X 7´´ bolts (D). 3/8´´ X 7´´ Bolts P| 5 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 7 Step 6: Place the rafters with in-between blocking (5), into the post notches as shown and attach to the post with the single rafter bolts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 6 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 8 Step 8: Attach the main knee braces (6) to the supports with 3/8´´ x 7´´ bolts (D) and to the posts with 3/8´´ x 9´´ bolts (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7´´ Bolts 3/8´´ X 9´´ Bolts P| 7 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 9 Step 10: Check you set of drawings and see if on the center top there is a lattice panel (8) or a rafter (4). You must attach this piece first with 8´´ X 3´´ deck screws (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 8 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 10 Step 11.2: Attach the lattice panels (8) to the rafters and to the supports with 8´´ x 3´´ deck screw (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 9 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 11 Step 12: Finally, use 8´´ x 3´´ deck screws (E) to attach the boots (9) to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 10 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
- Page 12 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 11 THE LATTICE PERGOLA KIT www.ForeverRedwood.com...
