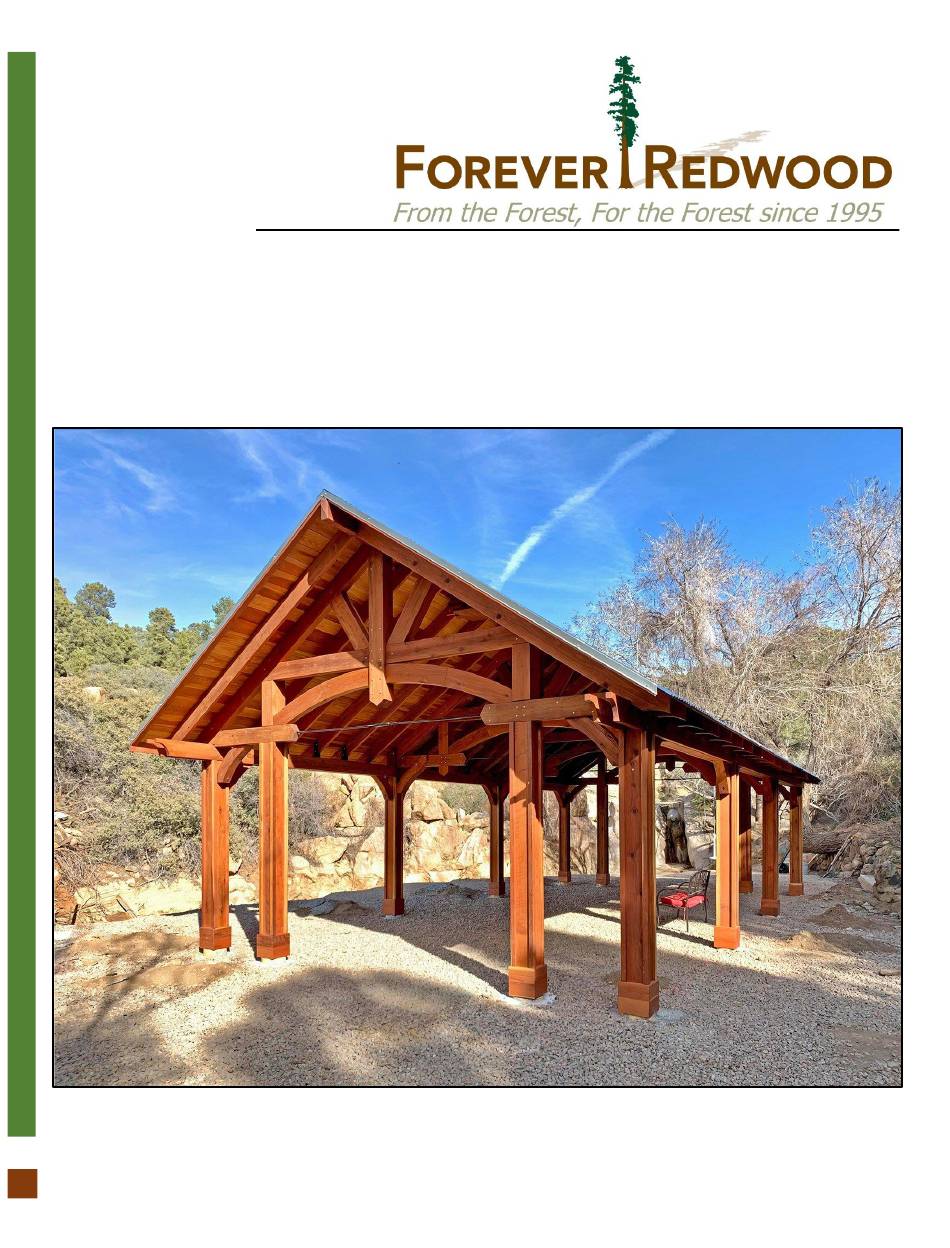

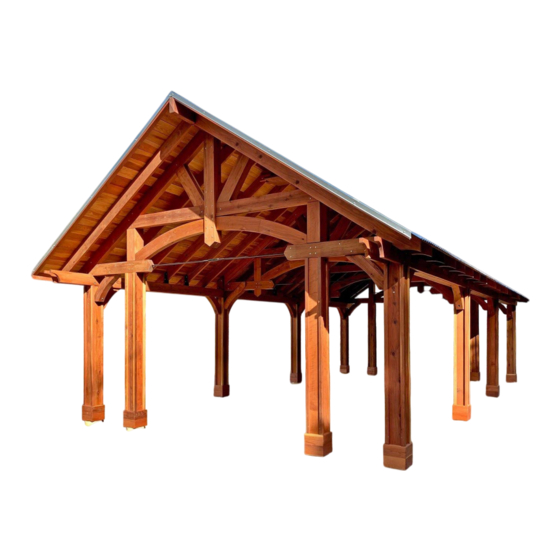

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE CARDINAL’S NEST PAVILION...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratch with the necessary socket or a wrench. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 3 Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratch with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 4 Curtain bases High wind Anchor Bases Curtain roads Rafter Bases L-plaques Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
-
Page 5: Hardware List
3/8” x 9 ¼” bolts 3/8” x 8 ½” bolts 5/16’’ x 3” bolts 2 ½” deck screws 5” deck screws 3’’ deck Screws 2’’ deck screws Note: Dimensions of your hardware will vary depending on size. The Cardinal's Nest Pavilion www.ForeverRedwood.com... - Page 6 Roof Trims Boots Curtain bases High wind anchor bases Curtain roads Rafter Bases L-plaques Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 7 The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 8 Note: Don’t completely tighten yet the bolts – you will need the install the in between blockings and the interior single supports first. Musts be flush with the posts. Musts be flush with the posts. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 9 Step 4: Put up the interior single supports (4) into the post notches, as shown, and attach to the posts and to the in-between blocking with the previously installed bolts (tighten fully). Check the marked on each support and place as drawings shown. Note: Put exterior clear silicone in the support joins. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 10 If they are not assembling on the ground, the roof trusses must be assembling piece by piece using a mobile scaffold. Step 6: Remove the deck screws to separate the hammer beams. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 11 Step 8: Use 3/8’’ x 12’’ lag bolts (LB2) to attach the king post (1.3) to the rafters. Match the marked numbers in the top of the king post with the numbers in the rafters. The marked numbers shown below corresponding at the roof trusses. TR1-6 TR1-7 TR1 -1 TR1 -14 The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 12 Step 10: Use 3/8’’ x 12’’ lag bolts (LB2) to attach the struts (1.5) to the rafters. Match the marked numbers in notches of the struts with the numbers in the rafters. The marked numbers shown below corresponding at the roof trusses. TR1-4 TR1-10 TR1-5 TR1-11 TR1 -1 TR1 -14 The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 13 Step 11: Attach the struts (1.5) to the rafters and to the collar tie with 2 ½” deck screws (DS1). After that, use 3/8” x 12’’ lag bolts (LB2) to attach to the collar tie together. TR1-1 TR1 -14 Step 12: Place the tensors (1.8) on the hammer-beam notches. TR1 -14 TR1-1 The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 14 Step 14: Use 3/8’’ x 10’’ lag bolts (LB3) to attach the arched (1.6) to the hammer-beams. Match the marked numbers in the corners of the arc with the numbers in the hammer-beams. The marked numbers shown below corresponding at the roof trusses. TR1-9 TR1-3 TR1-13 TR1 -14 TR1-1 The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 15 Match the marked numbers in the king post notches with the numbers in the rafters and in the hammer beams. The marked numbers shown below corresponding at the roof trusses (TR2). TR2-9 TR2-8 TR2-12 TR2-6 TR2-13 TR2-7 TR2-2 TR2-16 TR2-14 TR2-10 TR2-4 TR2-11 TR2-5 TR2-15 TR2-1 TR2-18 TR2-17 TR2-3 The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 16 Step 18: Use 3/8” x 9 ¼” bolts (BL6) to attach the roof trusses (1) to the lateral posts. Check the marked on each roof truss and place as drawings shown. Note: repeat this step. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 17 Step 20: Use 3/8” x 8 ½” bolts (BL7) to attach the secondary knee braces (7) to the perimeter roof trusses and use 3/8” x 6 ½” bolts (BL5) to the central roof trusses. After that, use 3/8” x 16 ½” bolts (BL2) to attach the secondary knee braces to the corner posts and to the central posts. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 18 Step 21: Attach the L-plaques (17) to the ridge beams and to the roof trusses with 3/8’’ x 3 ½” Lag Bolts (LB1). Step 22: Use 3/8’’ x 3 ½” Lag Bolts (LB1) to attach the Rafter Bases (16) to the in-between blockings. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 19 Step 24: Use 3’’ deck Screws (DS3) to attach the rest of the rafters (9) to the supports and to the ridge beams with 3/8’’ x 3 ½” lag bolts (LB1). Check the marked on each rafter and place as drawings shown. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 20 Roof board and place as drawings shown. Step 26: Use 2’’ deck screws (DS4) to attach the roof trims (11) to the roof boards. Check the marked on each Roof trims and place as drawings shown. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 21 Step 27: Use 2 ½” deck screws (DS1) to attach the curtain bases (13) to the post. Step 28: put the curtain roads (15) in place. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
- Page 22 This completes the Pavilion Assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. The Cardinal's Nest Pavilion www.ForeverRedwood.com...
