ASSEMBLY INSTRUCTIONS FOR THE
CUSTOM MODERN LOUVERED GARDEN
MODERN LOUVERED GARDEN PERGOLA
www.ForeverRedwood.com
PERGOLA
P| 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the CUSTOM MODERN LOUVERED GARDEN PERGOLA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Forever Redwood CUSTOM MODERN LOUVERED GARDEN PERGOLA

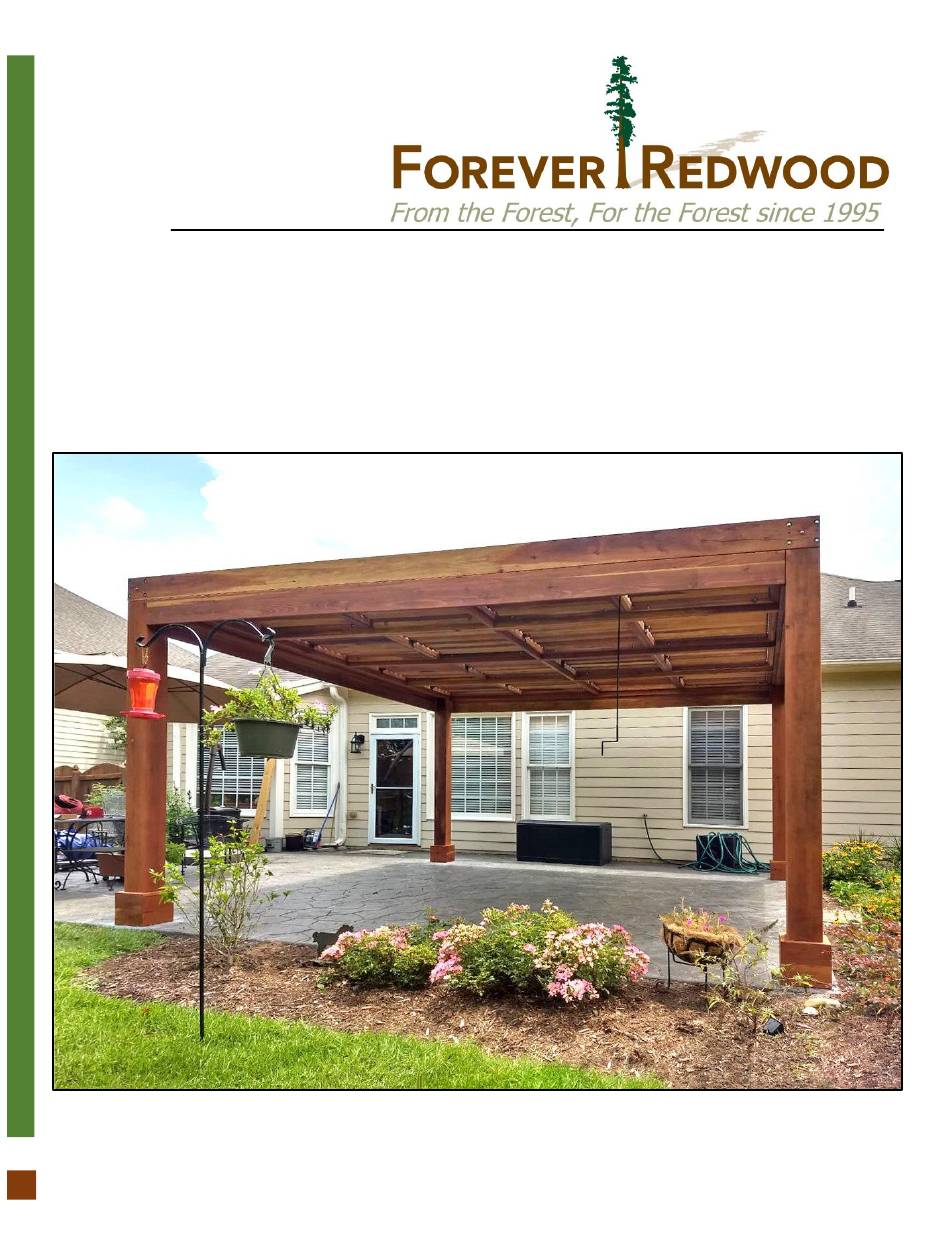

  • Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE CUSTOM MODERN LOUVERED GARDEN PERGOLA P| 0 MODERN LOUVERED GARDEN PERGOLA www.ForeverRedwood.com...
  • Page 2 NOTE: Assembly is best done by two people. To assemble your product, you need a Hammer, a Ratch or a wrench and if required a Drill. Required Tools (Are not included in your hardware packing). PROCESS TO INSTALL THE HARDWARE PROVIDED. To install the bolts.
  • Page 3 To install the lag bolts. Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratchet with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws.
  • Page 4 CONTENT OF BOXES Qty. Description Drawing Posts Single Supports-A Supports with in-between blocking-A Single Supports-B Central Supports In-Between Blocking cover Curtain road Fascias Louvered Panel Ceiling fan bases Boots Curtain bases-A Curtain bases-B Anchor Bases Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent.
  • Page 5: Hardware List

    HARDWARE LIST Qty. Description Drawing ½” x 3 ½” anchor bolts 3/8” X 3” lag bolts 3/8” x 4” lag bolts 3/8” x 12” Lag Bolts 3/8” x 2 ½” Lag Bolts 3/8” x 8 ½” bolts 5/16” x 5” bolts 3”...
  • Page 6 DESCRIPTION Posts Single Supports-A Supports with in-between blocking-A Single Supports-B Central Supports In-Between Blocking cover Curtain road Fascias Louvered Panel Ceiling fan bases Boots Curtain bases-A Curtain bases-B Anchor Bases P| 5 MODERN LOUVERED GARDEN PERGOLA www.ForeverRedwood.com...
  • Page 7 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 6 MODERN LOUVERED GARDEN PERGOLA www.ForeverRedwood.com...
  • Page 8 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
  • Page 9 Step 3: Place the supports with in between blocking into the post notches and attach the single supports-A (2) to the supports with in-between blocking (3), use 3/8” x 8 ½” bolts (BL1) with washer and nuts. After that, return to the bolts described in the step 2 and tighten fully.
  • Page 10 Step 5: Attach the Central Supports (5) to the Supports with 3/8” x 12” Lag Bolts (LB3) and washer. check the marked numbers on each central support and place as drawings shown. Note: put silicone in joints of the central supports. Step 6: Attach the In-Between Covers (6) to the In-Between Blocking with 3”...
  • Page 11 Step 7: Use 3/8” x 2 ½” Lag Bolts (LB4) to attach the Panels (9) to the Supports and to the central supports. check the marked numbers on each panel and place as drawings shown (D-1 at D-12). Step 8: Attach the curtain bases-A&B (12, 13) to the supports and to the post with 1 5/8” deck screws (DS2). P| 10 MODERN LOUVERED GARDEN PERGOLA www.ForeverRedwood.com...
  • Page 12 Step 9: Put the curtain road (7) in place. Step 10: Attach the fascias (8) to the post and supports with 2” deck screws (DS3). check the marked numbers on each fascia and place as drawings shown (C-1 at C-4). P| 11 MODERN LOUVERED GARDEN PERGOLA www.ForeverRedwood.com...
  • Page 13 Step 11: Attach the ceiling fan bases (10) to the central support (5) with 5/16” x 5” bolts (BL2). check the marked numbers on each ceiling fan and place as drawings shown. Step 12: Finally, attach the boots (11) to the posts with 3” deck screws (DS1). P| 12 MODERN LOUVERED GARDEN PERGOLA www.ForeverRedwood.com...
  • Page 14 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 13 MODERN LOUVERED GARDEN PERGOLA www.ForeverRedwood.com...
