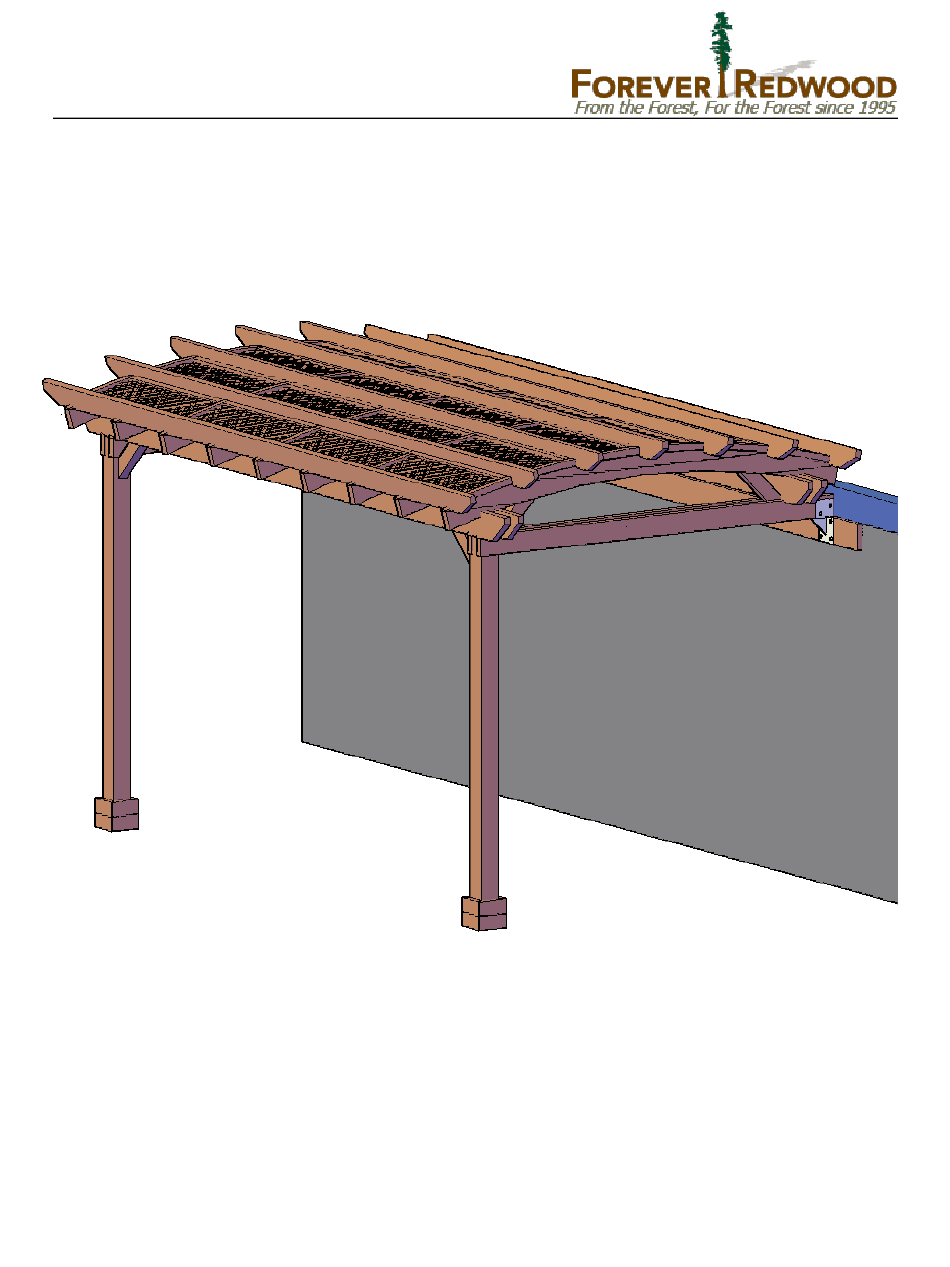

- Page 1 ______________________________________________________ 866.332.2403 (Toll Free); 7am-7pm Pacific Time, Monday-Saturday Example Assembly Instructions for a 17’-6” x 10’-10” Attached Arched Pergola Attached Garden Pergola www.foreverredwood.com...
- Page 2 CONTENT OF BOXES QUANTITY DESCRIPTION DRAWING Posts Mini Posts Main Dual Supports Flat Supports Diagonal Braces Diangonal Braces Slats Ledger Board Rafters Trim pieces for bottom of posts Attached Garden Pergola www.foreverredwood.com...
- Page 3 Metal Anchors to attach supports to ledger board Post anchors Depending Hardware: Deck Screws Bolts, washers and nuts on size Bolts and deck screws ASSEMBLY INSTRUCTIONS All Pergolas and Pavilions are completely erected in the shop prior to be crating for shipping. All hardware is included.
- Page 4 STEP 3: Attach metal anchor to concrete with anchor STEP 4: Attach post to metal anchor with lag bolts (5/16" bolt (½" x 4") and place the post. x 3") and add wood trim to hide metal when finished The photos above show the 4 simple steps to follow once your surface below the Pergola is in place. Choose the anchor kit for the appropriate surface: ...
- Page 5 Step 3. Attach the flat supports to the posts with 2 bolts (6” x 3/8”) washers & nuts per post. (Match numbers) and attach the other end of the supports to the metal plaques (the plaques must be already anchored to the leger board).
- Page 6 One the 2 supports have one large beam already attached or a few 18” pieces depending on size, this adds support and strength to the structure. Step 6. Attach the end rafters to the posts with one bolt (6” x 3/8”) washers & nuts per connection. Attached Garden Pergola www.foreverredwood.com...
- Page 7 Step 7. Attach the 22” diagonal braces to dual supports and posts. Attach the 29” diagonal braces to end rafters and posts with bolts, washer and nuts as shown below: 6” x 5/16” Bolt, 4 ½” x 5/16” Bolt, washers & nut. washers &...
- Page 8 Step 9. Attach the center slat atop the arches with deck screws. The slats have notches to fit into the rafters. Step 10. Attach the lattice panels and the rest of the slats on both sides of this first slat. Thank you.
