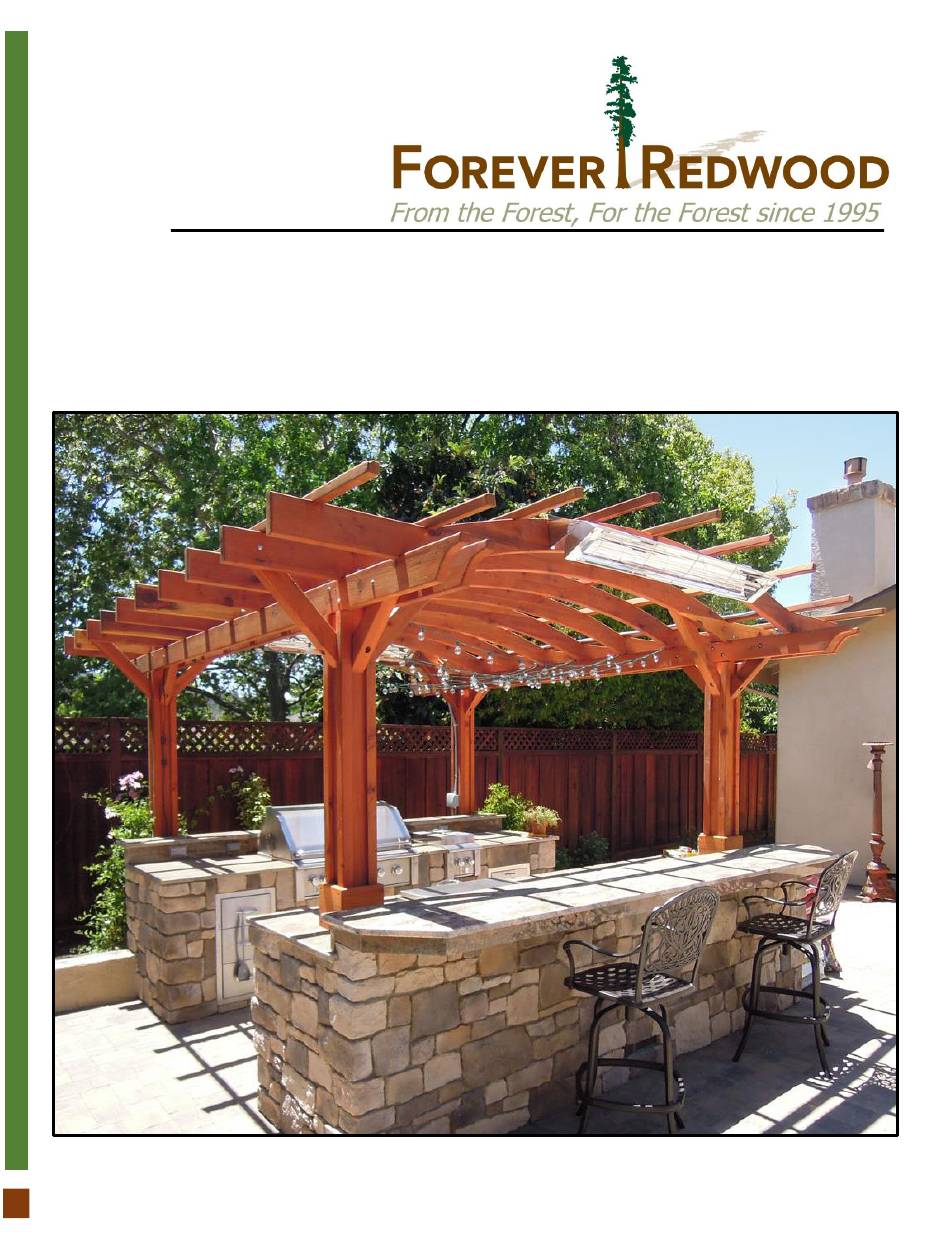

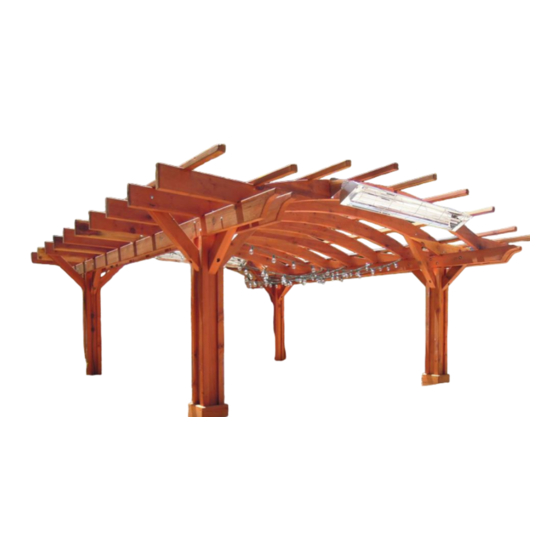

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE MARIN OUTDOOR KITCHEN PERGOLA...
- Page 2 P| 1 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 3 P| 2 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 4 P| 3 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 5 Step 1: Install the anchor bases (10) with ½´´ X 3 ½´´ anchor bolts (A) or lag bolts. Please see the “How to anchor your pergola document” for all details. Set your post (1) in the saddle of the anchor bases. Drill a ø ¼´´ hole in the post prior to anchoring to facilitate the ratcheting of the hardware.
- Page 6 Step 4: Attach the single supports (2) to the supports with in-between blocking (3), use 3/8´´ X 7´´ bolts (C). The quantity of bolts depends on the length of the supports. 3/8´´ X 7´´ Bolts P| 5 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 7 3/8’’ x 10’’ bolts (G) to attach to the posts, as shown below. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7´´ Bolts 3/8´´ X 8´´ Bolts 3/8´´ X 7´´ Bolts 3/8´´ X 10´´ Bolts P| 6 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 8 Step 8: Use 8´´ x 3´´ deck screws (E) to attach the other arched rafters (4) to the supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck screws P| 7 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 9 Step 9: Attach the slats (8) to the arched rafters with 3’’ deck screws (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck screws 10: Finally, attach the boots (9) to the posts with 8´´ x 3´´ deck screws (E). 3´´ Deck Screws P| 8 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 10 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 9 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 11 Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Loosen the nut on the bolt support. P| 10 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
- Page 12 Step 3: The bolt of the post and the brace must be flush with the post. Bolt. Step 4: Swing the brace aside. After that, remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 11 MARIN OUTDOOR KITCHEN PERGOLA www.ForeverRedwood.com...
