460 HORIZON DR. | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com
1
1. Guard, LH
2. Rear Housing, LH
3. Rear Housing, RH
4. Guard, RH

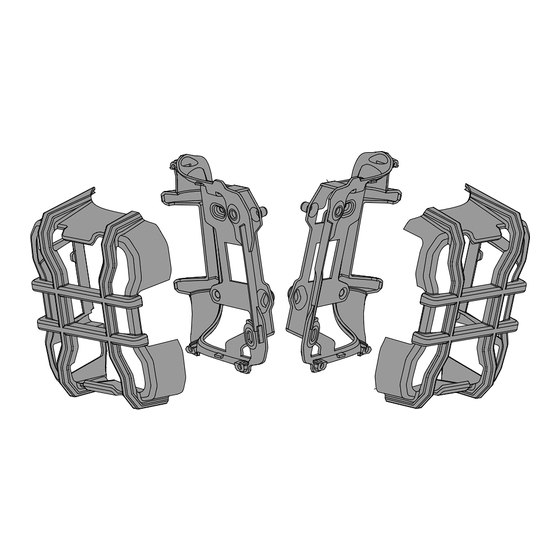

Elite Tail Light Guard, Wrangler JL
2
5
OMIX-ADA
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | TICKET: www.omixsupport.com
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2019 Omix-Ada
3
6
Components
(1)
5. Screws
(1)
6. Bolts
(1)
7. Foam Strip
(1)
TECHNICAL SUPPORT
®
, Inc.
®
Patent Pending
4
7
Page 1/4
Part #11226.12
(6)
(6)
(1)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rugged Ridge 11226.12
Summary of Contents for Rugged Ridge 11226.12
- Page 1 Page 1/4 Part #11226.12 460 HORIZON DR. | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Elite Tail Light Guard, Wrangler JL Patent Pending Components 1. Guard, LH 5. Screws 2. Rear Housing, LH 6. Bolts 3. Rear Housing, RH 7.
- Page 2 Page 2/4 460 HORIZON DR. | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Elite Tail Light Guard, Wrangler JL 1. Lift plastic cover in cargo area to gain access to Tail Light Mounting Bolt. 2. Using either a 10mm or T40 torx socket, unscrew OE Mounting Bolt and carefully pull LED Tail Light away from vehicle.
- Page 3 Page 3/4 460 HORIZON DR. | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Elite Tail Light Guard, Wrangler JL 4. Position supplied Rear Housing between OE Mounting Bracket and LED Tail Light. Using supplied Screws, attach Rear Housing and OE Mounting Bracket to LED Tail Light.
- Page 4 Page 4/4 460 HORIZON DR. | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Elite Tail Light Guard, Wrangler JL 7. Reconnect Tail Light to factory wire harness. Reusing OE Tail Light Mounting Bolt, attach LED Tail Light and new Tail Light Guard to vehicle.
