460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com
3
5

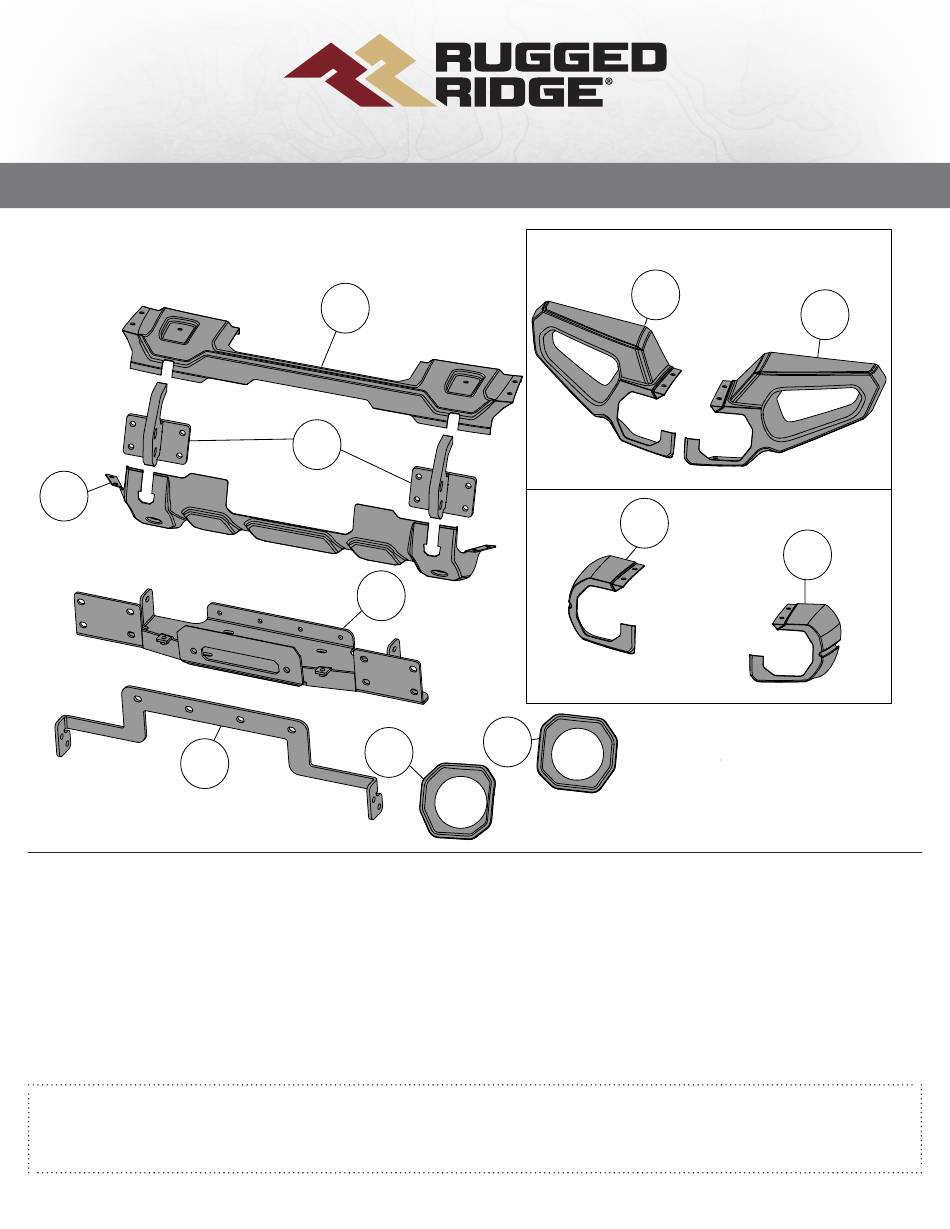

1. Bumper Shell - Center Top
2. Bumper Shell - Center Bottom
3. Tow Hook
4. Winch Tray
5. Winch Tray Support Bracket
6. Plastic Insert - Right
Venator Front Bumper, JL
1
2
4
6
OMIX-ADA
PHONE: M-F 8am - 5pm EST 1-800-449-6649
FOR WARRANTY OR TECH CONCERNS EMAIL: webmaster@omixsupport.com
Copyright © 2020 Omix-Ada
Patent Pending
Included in parts 11549.41 and
11549.42
Included in parts 11549.44
and 11549.45
7

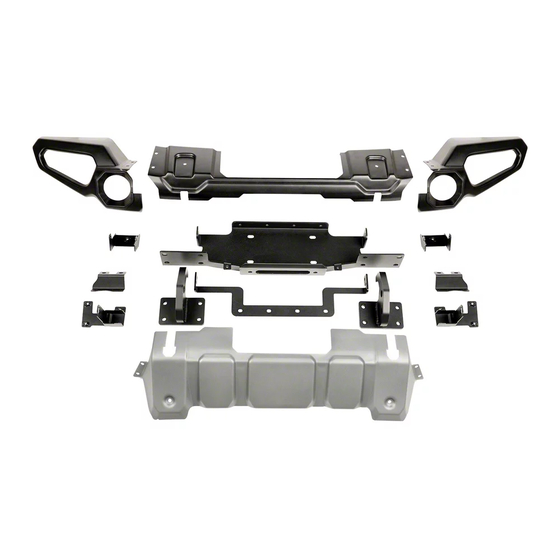

Components
(1)
7. Plastic Insert - Left
(1)
8. Bumper Shell - Right End
(1)
9. Bumper Shell - Left End
(1)
10. Bumper Shell - Stubby Right End
(1)
11. Bumper Shell - Stubby Left End
(1)
TECHNICAL SUPPORT
®
, Inc.
®
8
10
11
Page 1/8
Part # 11549.42
11549.44
9
(1)
(1)
(1)
(1)
(1)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rugged Ridge 11549.42
Summary of Contents for Rugged Ridge 11549.42
- Page 1 Page 1/8 Part # 11549.42 11549.44 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending Included in parts 11549.41 and 11549.42 Included in parts 11549.44 and 11549.45 Components 1.
- Page 2 Page 2/8 Part # 11549.41 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending Components 1. Top Mounting Bracket - Right 5. Fog Light Bracket - Right 2.
- Page 3 Page 3/8 Part # 11549.41 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending M4 Button Head Bolt (4) M12 Hex Head Bolt (8) M10 Hex Head Bolt (18) M10 Button Head Bolt (14) M4 Lock Nut (4) Inner Nut Plate (2)
- Page 4 Page 4/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 1. Disconnect OE Fog Lights from vehicle and remove factory Bumper, Lower Air Dam, plastic Cover Panel, and Tow Hooks.
- Page 5 Page 5/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 4. Position Tow Hooks on Winch Tray. Attach Tow Hooks using supplied M12 Hardware using center four holes.
- Page 6 Page 6/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 8. Using supplied M10 Hex Head Bolt, Washer, and Nut Plates, loosely attach Bottom Mounting Bracket to Frame Horn.
- Page 7 Page 7/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 11. Loosely attach Bumper Shell - Center Bottom to Bottom Mounting Brackets using supplied M10 Button Head Bolts and Washers.
- Page 8 Page 8/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 14. Snap into place Plastic Inserts. 15. Check alignemnt of Bumper Shell components. 16. Use a torque wrench to tighten all M10 hardware to 40 ft-lb.
