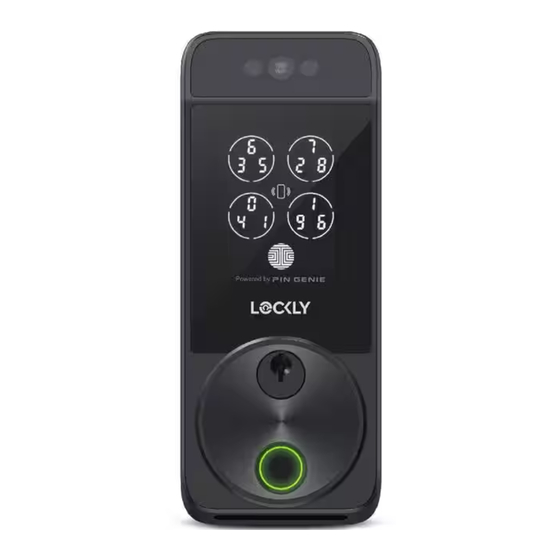

Summary of Contents for Lockly Zeno PGK798HK

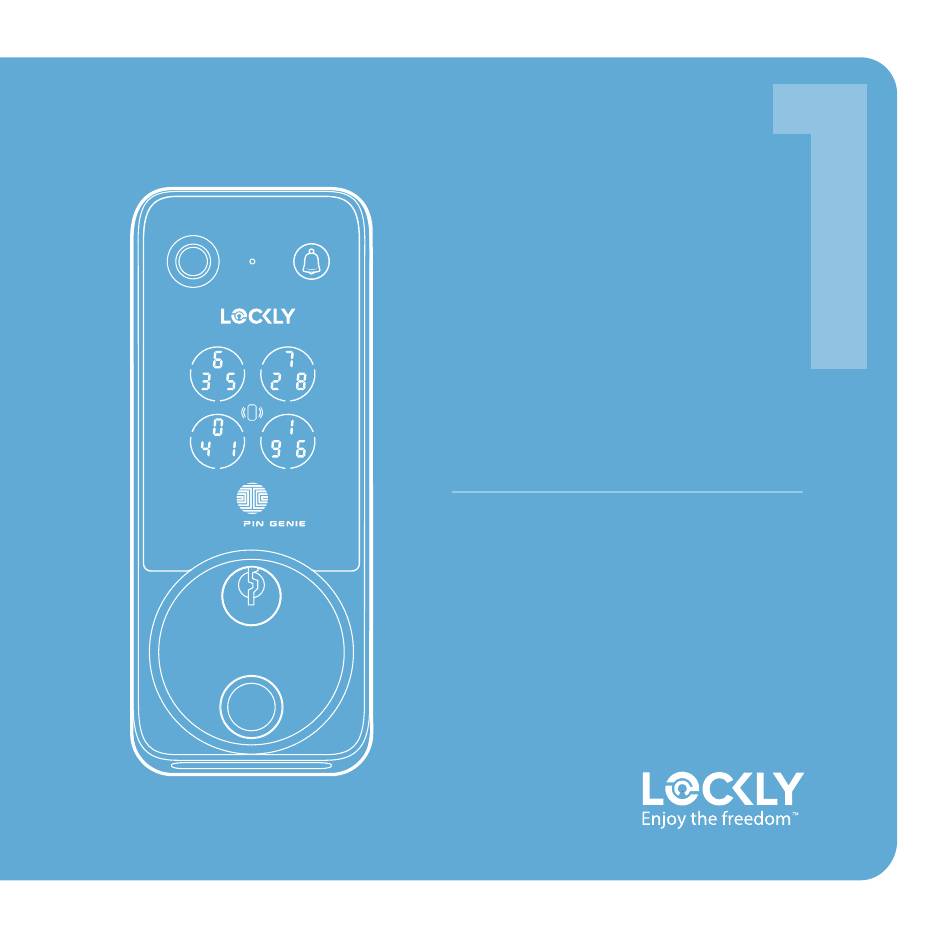

  • Page 1 Zeno Series Start First Lockly Vision Installation guide Powered by PGK798HK...
  • Page 2 Welcome Access the latest Install video and installation guide. Scan for the most Scan to watch updated version step-by-step of this manual. video installation Reference foldout Get an overview of all installation components and parts with the handy reference foldout on the back page. Keep it open for reference as you go through each step.
  • Page 3 We’re here to help Your Lockly smart lock comes with lifetime technical support. Feel free to contact us with any questions or comments. (669) 500-8835 help@Lockly.com support.Lockly.com...
  • Page 4: Let's Get Started

    Let’s get started...
  • Page 5 Charge the battery Ensure battery has been fully charged. Charge the battery with the included USB-C cable and a common mobile device charger (not included) rated 5V/2A or higher. A full charge can take up to 12 hours.
  • Page 6 What you’ll need Tools Phillips-Head screwdriver Flathead screwdriver Tape measure or ruler Prepare door Confirm existing door or use provided template to bore new holes. Back-set: 2 ⅜" (60mm) or 2 ¾" (70mm) Thickness: 1 ⅜" (35mm) to 3 ⅛" (80mm) Deadbolt bore hole: 1"...
  • Page 7: Table Of Contents

    Installation Deadbolt installation 07/08 Install lock exterior Interior mount plate Interior lock 11/12 Battery & self-check Strike plate Door sensor Vision Connect Hub Troubleshooting/FAQs 19/20 Parts overview 22/23...
  • Page 8: Deadbolt Installation

    Deadbolt installation Ensure deadbolt blade slot aligns center in the door hole. A1 (2x) The deadbolt comes set to 2 3⁄8 " (60mm); adjust to 2 3⁄4" (70mm) if needed. 3⁄8 " 3⁄4 " To adjust hold the faceplate and To adjust hold the faceplate twist the body counter-clockwise and twist the body clockwise...
  • Page 9 Make sure the sensor wire exits on the interior side of the door. Left swing door Right swing door Interior Interior To avoid damaging the built-in sensor, do not use tools or hard objects to hammer or force the deadbolt into place.
  • Page 10: Install Lock Exterior

    Installing lock exterior Ensure the torque blade is vertical (up and down) with the deadbolt extended. Note: do not insert a key. Place assembly and torque blade through the deadbolt slot and guide connection cables under the deadbolt as shown. Complete mounting by aligning and securing until flush to exterior door surface.
  • Page 11: Interior Mount Plate

    Installing interior mount plate Guide the connection cables through the notched gasket in the lower corner, then align the mounting plate. Choose screws based on your door's thickness (see parts reference foldout) and hand tighten until the plate is flush with the door.
  • Page 12 Installing interior of lock Remove the battery cover from interior Assembly E before installation. With interior assembly E, connect cable ends to their matching counterparts. Peel off protective film from the adhesive strips, and then press the magnetic control socket onto the double-sided adhesive. Insert the antenna connector into the slot, then tear off the release paper labelled, arrange the black and white terminal wires neatly as shown and fix them with tape.
  • Page 13 F (4x) Tuck excess cables and connector back into the faceplate and door hole. Align outer thumbturn and torque blade shaft, make sure both are in the vertical position. Carefully tuck cables and connector back into the faceplate and door hole under the deadbolt. Be careful not to force or pinch the cables.
  • Page 14 Install battery & perform self-check Ensure battery has been fully charged. With door open and deadbolt fully extended, insert the battery. With the battery installed, hold the program button for 4 seconds. The lock will automatically start a self-check (release the program button once self-check starts).
  • Page 15 Installing door frame strike plate Use the included door strike plate (L) which has the built-in door sensor magnet. To ensure optimal spacing between the doorframe strike plate and the deadbolt sensors, install spacer (S) if the gap between them exceeds 5 mm. Ensure the deadbolt and strike plate sensors are properly aligned when facing each other.
  • Page 16: Strike Plate

    Installing optional external door sensor An optional external door sensor can replace the built-in strike plate sensor if it’s incompatible with your doorframe. Door sensors provide real-time open/close push notifications and status updates. Install the sensors on the interior side on clean, grease-free, and dry surfaces.
  • Page 17: Vision Connect Hub

    Setup New-Gen Vision Connect Hub Connect the hub to power. Follow the in-app instructions to complete the setup. Reset LED status light TF Card (comes inserted) Power adapter cable For best hub connection to Wi-Fi results: Keep Door Sensor out of direct sunlight, high heat, and large metal objects that may •...
  • Page 18 Continue to Setup and Use Refer to guide number 2 "Setup and Use" to complete installation. Zeno Series Start Second Lockly Vision Setup and use Powered by Scan for the most updated version. PGK798HK...
  • Page 19: Troubleshooting/Faqs

    Troubleshooting/ FAQs...
  • Page 20 Lockly uses 5-pin cylinders for the Deadbolt Editions, which can be replaced using rekeying kits from various brands. Always follow the specific instructions provided by Lockly for your model, as rekeying procedures can vary. If you need clarification or are uncomfortable with rekeying, we recommend seeking help from a professional lock-...
  • Page 21 Is Lockly compatible with all types of doors? Lockly is compatible with most left and right swinging standard doors. However, it’s important to check the specifications to ensure compatibility with your door type. Doors thicker than 2 inches (50mm) may require an optional longer torque plate and screws available through Lockly customer service at: support@lockly.com or (669)
  • Page 22: Parts Overview

    Parts overview...
  • Page 23 Exterior Battery Cover Strike Plate Keys Activation Card Tailpiece Pin key Strike Spacer Dust Box New-Gen Vision Connect Hub Power Adaptor Activation Card 1234 LOCK SERIAL 5678 PGK7SK012345XXX ACTIVATION CODE 824057XX Need help? Email: help@Lockly.com | Support: +1(669) 500-8835 (Optional)
  • Page 24 We’d love your feedback. Please let us know how your installation went or if you have any other comments. Our short survey takes less than 2 minutes to complete. Scan to start...
  • Page 25 The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. , and any use of such marks by Lockly is under license. Other trademarks and trade names are those of their respective owners. Google, Android, Google Play and Google Home are trademarks of Google LLC.
