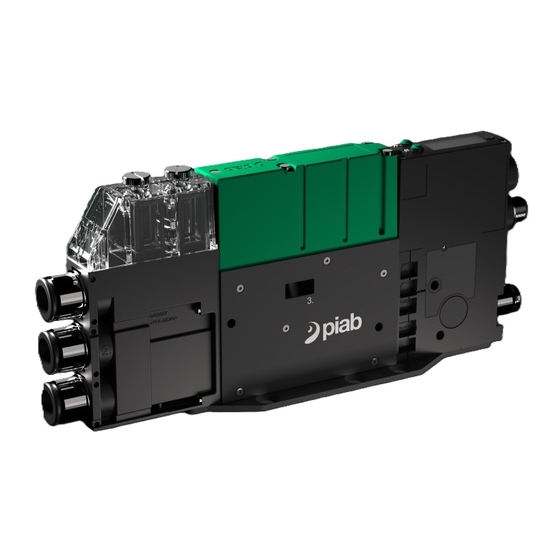

PIAB piCOMPACT 23 SMART Installation Manual
  1. Manuals
  2. Brands
  3. PIAB Manuals
  4. Industrial Equipment
  5. piCOMPACT 23 SMART
  6. Installation manual

PIAB piCOMPACT 23 SMART Installation Manual

1 channel
Hide thumbs Also See for piCOMPACT 23 SMART:

Advertisement

Quick Links

Download this manual
Installation manual
piCOMPACT
23 SMART
®
1 channel

Advertisement

loading
Need help?

Need help?

Do you have a question about the piCOMPACT 23 SMART and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PIAB piCOMPACT 23 SMART

Summary of Contents for PIAB piCOMPACT 23 SMART

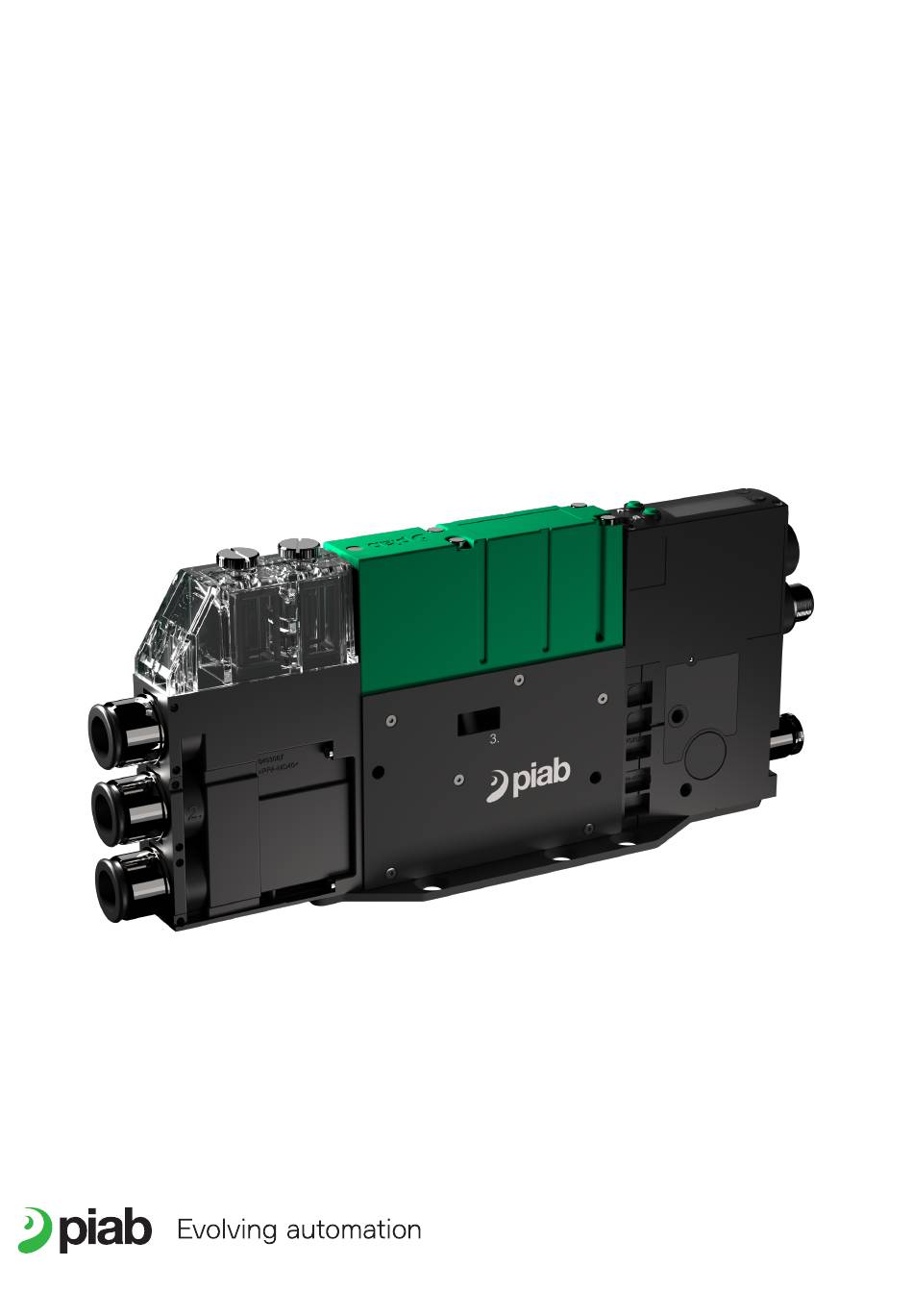

  • Page 1 Installation manual piCOMPACT 23 SMART ® 1 channel...
  • Page 2 This manual is available in the following languages at piab.com Chinese English French German Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Page 2/28 Page 2/28 piCOMPACT 23 SMART 1 channel Installation manual ®...

  • Page 3: Table Of Contents

    Contents 1. Introduction to the manual ..4 About the manual ....4 1.2 Safety signs used in the manual ..4 1.3 Target group .

  • Page 4: Introduction To The Manual

    ® ® please visit www.piab.com. This manual is also please visit www.piab.com. This manual is also available to download at www.piab.com in the 12 available to download at www.piab.com in the 12 languages shown on page 2. The original instructions languages shown on page 2.

  • Page 5: Compliance

    Introduction to the manual 1.4 Compliance 1.4.1 Compliance for NC and NO 1.4.2 Compliance for bi-stable European Directives, CE European Directives, CE Directive Standard detail and/or Directive Standard detail and/or measurement reference measurement reference Electromagnetic EN/(IEC) 61000-6-2:2005 Electromagnetic EN/(IEC) 61000-6-2:2019 Compatibility EMC) EN/(IEC) 61000-6-4:2007+A1 Compatibility EMC)

  • Page 6: Safety Instructions

    Safety instructions 2. Safety instructions • Ensure no foreign matters enter the exhaust piCOMPACT 23 SMART is intended to be port due to the risk of ejected objects, and ® incorporated into machinery or to be assembled with damage of the product. other machinery to constitute machinery covered by •...
  • Page 7 Safety instructions Utilisation inadaptée Avertissement ! Vacuum force Ne pas utiliser l’appareil s’il est endommagé. Ne L’utilisation irresponsable d’air Débit d’aspiration pas utiliser l’appareil pour créer du vide ou comprimé peut causer des blessures. souffler de l’air à d’autres fins que celles qui sont Vakuumkraft L’air comprimé...
  • Page 8 Safety instructions Die Wartung muss gemäß den Anweisungen in internationale Hebenormen zu erfüllen. Verwenden capelli e occhi lontani da connessioni di diesem Handbuch durchgeführt werden. Sie das Produkt nicht zum Absaugen von aspirazione e scarico. • Unterbrechen Sie vor Wartungsarbeiten die Flüssigkeiten.
  • Page 9 Safety instructions • Gdy jednostka wytwarza podciśnienie, mantenimiento del producto deben ser realizados port próżniowy i wylotowy nie mogą zostać únicamente por personal con experiencia y Produkt piCOMPACT®23 SMART przeznaczony zablokowane. Ma to zapobiec wyrzucaniu especialmente formados. jest do integracji z maszyną lub montażu z innym przedmiotów, uszkodzeniu produktu oraz urządzeniem w celu stworzenia nowej instalacji, Antes de montar y desmontar los componentes,...
  • Page 10 Safety instructions de problemas se realizará de acuerdo con las instrucciones del manual. VARNING! Uso incorrecto No utilice el producto si está dañado. El producto • no se utilizará para crear vacío ni soplar con otras Installera eller använd inte din piSAFE® som finalidades ajenas a las previstas.

  • Page 11: Introduction To Picompact

    P.O. Box 146 SE-18212 DANDERYD SWEDEN 3.1.1 Identification label Each unit is identified by a label with identification information. For any communication with Piab AB or service centers always refer to the label information. 3.2 Product overview Overview, 1 channel Figure 1 Overview, 1 channel.

  • Page 12: Installation

    Installation 4. Installation 4.1 Connections, 1 channel Figure 2 Connections, 1 channel. Pos. Description Size Compressed air Push-in: Ø6 / Ø1/4’’ / Ø8 (Ø5/16’’) / Ø10 / Ø3/8” Vacuum port (1-3 ports) Push-in: Ø10 / Ø3/8’’ / Ø12 / Ø1/2’’ Barb: Ø12 /Ø1/2’’ Vacuum port (1-3 ports) Push-in: Ø10 / Ø3/8’’...

  • Page 13: Pneumatic Diagrams

    Installation 4.2 Pneumatic diagrams Note! Filter and vacuum sensor are optional 4.2.1 NC and NO Vacuum NC Vacuum NO & Blow-off NC & Blow-off NC • • Without non-return • • valve • • • • • • • • •...
  • Page 14 Installation 4.2.2 Amplified blow-off (ABO) Vacuum NC Vacuum NO • • Without non-return • • valve • • • • • • • • • • With • • non-return valve • • • • • • • • • •...
  • Page 15 Figure 5 1. Compressed air, 2. Vacuum, 3. Exhaust. 4.2.4 Pin configuration for standard-IO Pin 3-8 can be configured in the menu system to do other functions. See the manual for specific configuration on www.piab.com for more information. M12 8p Figure 6 M12 8p...
  • Page 16 Installation Pin No. Name Description Note Vsys Supply voltage, 24 VDC (V+) Common, 0 VDC (V-) 0 = Vacuum control 1 = Blow-Off control Digital input 2 = Disable Energy Saving (ES) Valve 1 control or C2 control functions 3 = Disable Automatic Blow-Off functions (ATBO or IBO) 4 = Disable Automatic Condition Monitoring (ACM) 5 = Process Data Out valid (PDO) 0 = Vacuum control...
  • Page 17 4.2.5 Pin configuration with separate power domains Pin 3-8 can be configured in the menu system to do other functions. See the manual for specific configuration on www.piab.com for more information. M12 4p Figure 7 Pin configuration with separate power domains. Pin No.
  • Page 18 Installation M12 4p Figure 8 Pin configuration with separate power domains. Pin No. Name Description Note Supply voltage, sensor power, 24 VDC (V+) sens S1** 0 = No function 1 = Part Present vacuum level achieved (PP) 2 = Energy Saving vacuum level achieved (ES) Digital output Signal 1** 3 = Leakage Warning (LW)
  • Page 19 Lights only when activated from IO. Indicator LED - Green, Blow-Off valve Lights only when activated from IO. *Override function for Automatic Condition Monitoring (ACM). See the manual for your configuration on www.piab.com for more information Installation manual piCOMPACT 23 SMART 1 channel Page 19/28...

  • Page 20: Mounting

    Installation 4.3 Mounting 4.3.1 1 channel Screw MFT M5x10, T25 Figure 2 1 channel. Page 20/28 piCOMPACT 23 SMART 1 channel Installation manual ®...
  • Page 21 Installation 4.3.2 Custom mounting interface, with filter Delta PT 40x8, WN5454, T20 Hole Delta PT 40x8 FZ elta PT 40x8 FZ 2xDelta PT 40x8 WN5454, T20 Figure 3 With filter. 4.3.3 Custom mounting interface, without filter MFT M4x10, T20 MFT M4x10 A2 Delta PT 40x8 FZB Delta PT 40x8 WN5454, T20 MFT M4x10, T20...
  • Page 22 Installation 4.3.4 Side mounting, 1 channel Holes for side mounting Figure 5 Side mounting, 1 channel. 4.3.5 Side mounting interface, split 2.953" 0.157" Figure 6 Side mounting interface, split Page 22/28 piCOMPACT 23 SMART 1 channel Installation manual ®...
  • Page 23 Installation 4.3.6 1 channel 2.953" Figure 7 1 channel. 4.3.7 Split, manifold mount 1.654" 2.953" Figure 8 Split, manifold mount Installation manual piCOMPACT 23 SMART 1 channel Page 23/28 ®...

  • Page 24: Technical Data

    Technical data 5. Technical data Pneumatic technical information Value Description Unit COAX ® SX42 COAX ® SX12 Feed pressure, pump at opt. MPa [psi] 0.50 [72.52] 0.52 [75.42] 0.47 [68.17] 0.57 [82.67] Feed pressure, nozzle at opt. MPa [psi] 0.5 [72.5] 0.43 [62.4] Max vacuum at opt.

  • Page 25: Warranty

    Warranty 6. Warranty The Seller gives its Customers a one-year warranty During the warranty period, the Seller shall replace from the receipt of the Products, accessories, or repair, at its own expense, faulty products control devices end Kenos products included. determined by the Seller, in its sole discretion, to be ®...

  • Page 26: Recycling And Disposal

    Environmental aspects are considered in the development process of Piab’s products to make sure that a minimal environmental footprint is used. Piab is certified against with ISO-14001, and also complies with REACH (EC 1907/2006). The ways of handling recycling and disposals vary...
  • Page 28 China Lagny sur Marne Danderyd (HQ) Sao Paulo Shanghai +33 (0)16-430 82 67 +46 (0)8-630 25 00 +55 (0)11-449 290 50 +86 21 5237 6545 info-france@piab.com info-sweden@piab.com info-brasil@piab.com info-china@piab.com +46 544 409 00 Etampes (Joulin) se-sales@piab.com Canada India +33 (0)1 69 92 16 16...
