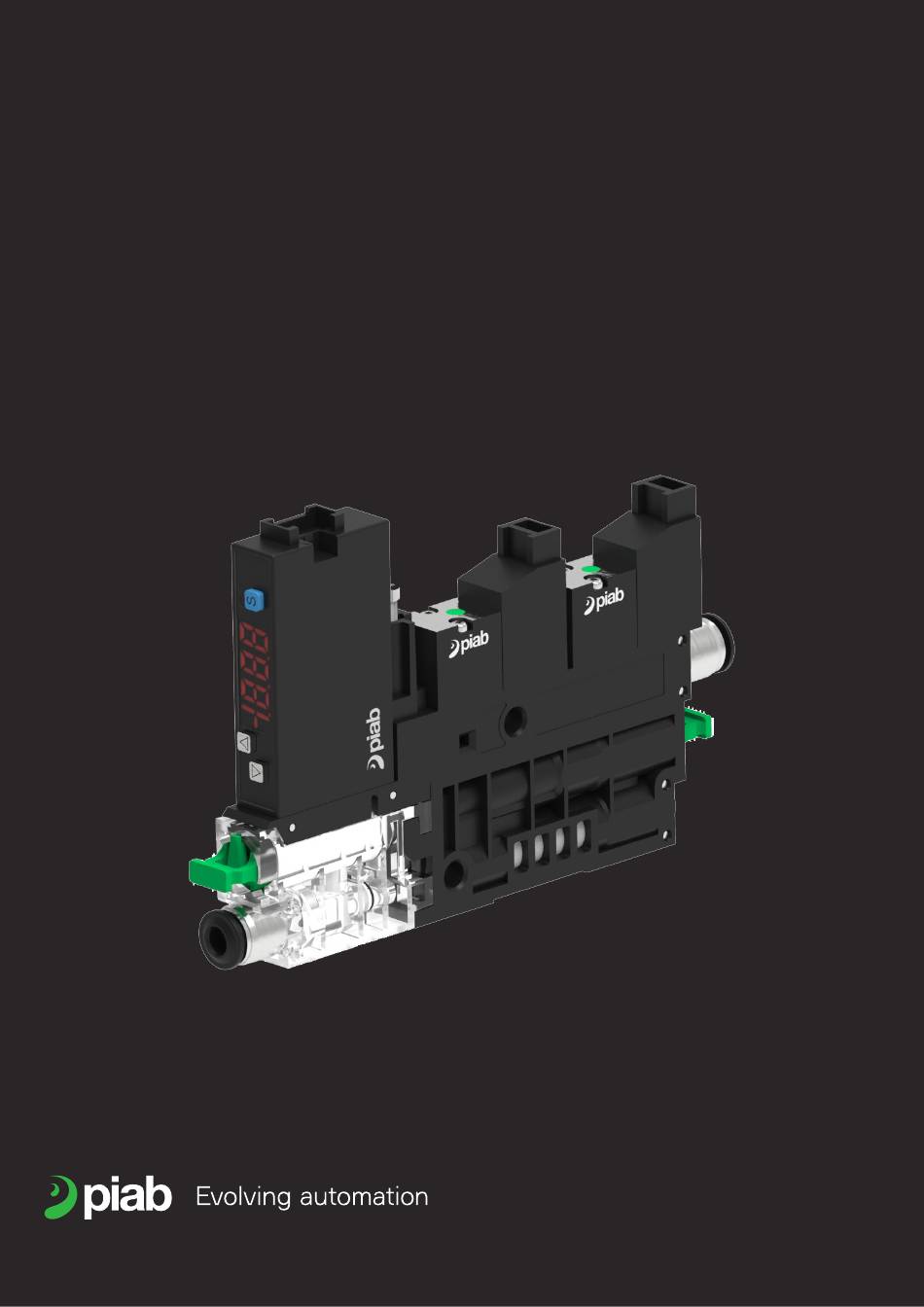

- Page 1 Manual Manual COMPACT10E COMPACT10E Air-driven ejector pump Air-driven ejector pump Pump replacement manual Pump replacement manual...
- Page 2 This manual is available in the following languages at piab.com Chinese English French German Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Page 2/20 Page 2/20 COMPACT10E Manual...
- Page 3 2.4 Misuse......6 3. Introduction to COMPACT10E ..6 3.1 Manufacturer.
- Page 4 Note! Information that needs extra attention! 1.1 About the manual Compact10E is used in applications where a Wear eye protection constant vacuum pressure is desired. The manual is available for download at piab.com in the 12 languages shown on page 2. The original instructions are written in English.
- Page 5 Prior to assembly and disassembly of the components, cut off voltage and pressure. Install and maintain the components only after thoroughly reading and understanding this manual. Page 5/20 COMPACT10E Manual...
- Page 6 3.1.1 Identification label maintenance work, suspend pneumatic/electrical Each unit is identified by a label with identification supply, and discharge residual pressure. information. For any communication with Piab AB or service centers always refer to the label information. 2.3 Intended use 3.2 Overview •...
- Page 7 Installation 4. Installation Overview, 2-8 channels Before installing the COMPACT10E unit, check the product and attachments (such as hoses, hose clamps, clips etc.) for damages. Replace any damaged parts with new parts. Wear safety glasses and ear protection when installing the product.
- Page 8 Installation 4.1 Mounting COMPACT10E can be installed as a single unit/ channel mounted sideways, or as multiple (2 to 8) units in a stack mounted upright. 4.2 1 channel Figure 3 1 channel. Page 8/20 COMPACT10E Manual...
- Page 9 Minimum recommended hose diameters are valid for hose lengths up to 2m (6 ft). For longer lengths, use larger hose diameters to avoid reduced vacuum flow performance and the risk of false vacuum signals from sensors. Page 9/20 COMPACT10E Manual...
- Page 10 Figure 6 Connections, 2-8 channels. Central exhaust Ø6 Vacuum sensing port Position Description Size Vacuum sensor Central compressed air Ø6 / Ø8 Vacuum Ø4 / Ø6 Central silencer Central exhaust Ø12 Vacuum sensing port Vacuum sensor Page 10/20 COMPACT10E Manual...
- Page 11 • • Figure 7 Pneumatic diagram. 4.4.4 Clean room installation 4.5 Electric installation COMPACT10E is suitable for use in clean room environments. Warning! Do not use electrical cables longer than As the valves close the exhaust air is recycled back 30 m (98 ft), otherwise damage to to the valve outlet port.
- Page 12 Black Description Wire color Note DC (+) Brown Supply voltage, 24 V DC Analog out- Orange Analog output, 1-5 V DC OUT2 White Digital output signal 2 OUT1 Black Digital output signal 1 DC (-) Blue Page 12/20 COMPACT10E Manual...
- Page 13 Push firmly to manually activate the blow-off valve. The button is non-locking. Warning! Exhaust Wear ear protection Figure 11 5.1.3 Vacuum valve manual override Push firmly to manually activate the vacuum valve. The button is non-locking. Figure 12 Page 13/20 COMPACT10E Manual...
- Page 14 Maintenance 6. Maintenance Warning! Before maintaining the COMPACT10E unit, turn off the compressed air feed to the unit and make sure it is idle and depressurized. Check the product and attachments (such as hoses, hose clamps, clips etc.) for damages or wear and replace the damaged or worn parts with new parts.
- Page 15 The maximum tightening torque of the screw is 0.50 Nm/70 in-oz. 2. Slide out the pump unit from the manifold stack. Hex key 0.50 Nm 3 mm [70 in oz] Figure 14 Removing a pump unit. Page 15/20 COMPACT10E Manual...
- Page 16 O-ring material (NBR). Figure 15 Removing the COAX cartridge. ® 6.3 Cleaning the COAX cartridge ® Clean the COAX cartridge from particles by rinsing ® in water or blow off with compressed air. Let dry before reinstalling. Page 16/20 COMPACT10E Manual...
- Page 17 ≤ 3 ms Electrical connection Supplied cables 300mm, Red (+) Black (-) Air consumption blow-off/release 0-1.01 Nl/s at 6 bar [0-2.14 scfm at 87 psi] Manual override Yes, non-locking push style Material, valves PA, NBR, FKM, SS Page 17/20 COMPACT10E Manual...
- Page 18 Values specified are tested at: • Room temperature (20°C [68°F] ± 3°C [5.5°F]). • Standard atmosphere (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg]). • Relative humidity 35-85%, no condensation. • Compressed air quality, DIN ISO 8573-1 class 4. Page 18/20 COMPACT10E Manual...
- Page 19 The warranty does not apply to any Product sure that a minimal environmental footprint is used. (including any component or other parts in such Piab is certified against with ISO-14001, and also Products (such as suction cups, filter elements, complies with REACH (EC 1907/2006).
- Page 20 +33 (0)16-430 82 67 +46 (0)8-630 25 00 +55 (0)11-449 290 50 +86 21 5237 6545 +33 (0)16-430 82 67 +46 (0)8-630 25 00 +55 (0)11-449 290 50 +86 21 5237 6545 info-france@piab.com info-sweden@piab.com info-brasil@piab.com info-china@piab.com info-france@piab.com info-sweden@piab.com info-brasil@piab.com info-china@piab.com Mölndal...
