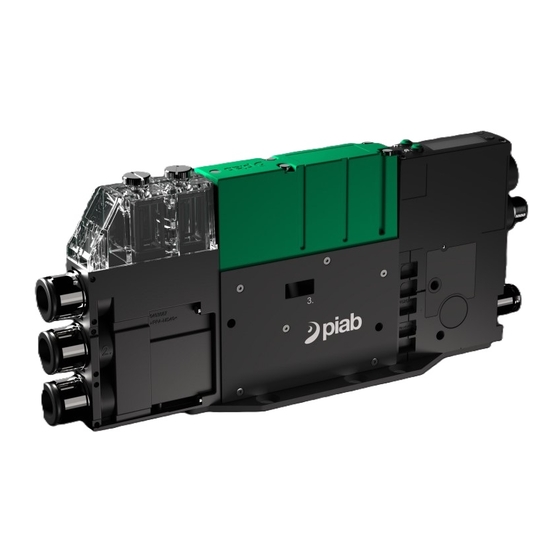

- Page 1 Manual Installation manual piSAFE ® piCOMPACT 23 SMART ® Vacuum Safety Valve for Centralized IO-Link Ready, 2 channels Systems Art no 0214956 Rev.04, EN, 2022-05 Art no 0233044 Rev.01, EN, 2021-04 Original instructions Original instructions...
- Page 2 This manual is available in the following languages at piab.com Chinese English French German Italian Japanese Korean Polish Portuguese Russian Swedish Page 2/24 Page 2/24 piCOMPACT 23 SMART IO-Link Ready 2 channel Manual ®...
-
Page 3: Table Of Contents
Contents 1. Introduction to the manual ..4 About the manual ....4 1.2 Safety signs used in the manual ..4 1.3 Compliance . -
Page 4: Introduction To The Manual
This manual is also available to download at www. This manual is also available to download at www. piab.com in the 12 languages shown on page 2. The piab.com in the 12 languages shown on page 2. The Wear eye protection original instructions are written in English. -
Page 5: Compliance
Introduction to the manual 1.3 Compliance 1.3.1 Compliance for NC and NO 1.3.2 Compliance for bi-stable European Directives, CE European Directives, CE Directive Standard detail and/or Directive Standard detail and/or measurement reference measurement reference Electromagnetic EN/(IEC) 61000-6-2:2005 Electromagnetic EN/(IEC) 61000-6-2:2019 Compatibility EMC) EN/(IEC) 61000-6-4:2007+A1 Compatibility EMC) -
Page 6: Safety Instructions
Safety instructions 2. Safety instructions piCOMPACT 23 SMART is intended to be ® • Ensure no foreign matters enter the incorporated into machinery or to be assembled with exhaust port due to the risk of ejected other machinery to constitute machinery covered by objects, and damage of the product. -
Page 7: Intended Use
Safety instructions 2.3 Intended use • Do not use blow-off functions or ejector exhaust for pressurizing components such as cylinders and/or tank-volumes. • For professional use only. • Do not use compressed air pressure or electrical • The product is used for creating vacuum or voltage outside the specification. -
Page 8: Introduction To Picompact
SE-18304 TÄBY SWEDEN 3.1.1 Identification label Each unit is identified by a label with identification information. For any communication with Piab AB or service centers always refer to the label information. 3.2 Product overview Overview, IO-Link Ready 2 channels Figure 1 Overview, IO-Link Ready 2 channels Pos. -
Page 9: Installation
Installation 4. Installation 4.1 Connections, 2 channels Figure 2 Connections, 2 channels. Pos. Description Size Compressed air (common feed) Push-in: Ø6 / Ø1/4’’ / Ø8 (Ø5/16’’) / Ø10 / Ø3/8” Vacuum port (1-3 ports) Push-in: Ø10 / Ø3/8’’ / Ø12 / Ø1/2’’ Barb: Ø12 /Ø1/2’’ Vacuum port (1-3 ports) Push-in: Ø10 / Ø3/8’’... -
Page 10: Pneumatic Diagrams
Installation 4.2 Pneumatic diagrams Note! Filter and vacuum sensor are optional 4.2.1 NC and NO Vacuum NC Vacuum NO • • Without non-return valve • • • • With non-return valve • • Figure 3 1. Compressed air, 2. Vacuum, 3. Exhaust. Page 10/24 piCOMPACT 23 SMART IO-Link Ready 2 channel... - Page 11 Installation 4.2.2 Amplified blow-off (ABO) Vacuum NC Vacuum NO & Blow-off NC & Blow-off NC • • Without • • non-return valve • • • • • • • • • • With • • non-return valve • • • •...
- Page 12 Installation 4.2.3 Vacuum hovering (PVH) and amplified blow-off (ABO) Vacuum NC Vacuum NO • • Without • • non-return valve • • • • • • • • • • • • With • • non-return valve • • • •...
- Page 13 Installation 4.2.4 Pneumatic diagram, bi-stable Vacuum bi-stable Vacuum bi-stable & Blow-off NC & Blow-off NC + PVH / ABO Without non-return valve With non-return valve Figure 6 1. Compressed air, 2. Vacuum, 3. Exhaust. Manual piCOMPACT 23 SMART IO-Link Ready 2 channel Page 13/24 ®...
- Page 14 4.2.5 Pin configuration for IO-link ready, standard IO connections Pin 3-8 can be configured in the menu system to do other functions. See the manual for your configuration on www.piab.com for more information. M12 8p Class A Figure 7 Pin configuration for IO-Link Ready.
- Page 15 Installation Pin No. Name Description Note Vsys Supply voltage, 24 VDC (V+) Common, 0 VDC (V-) 0 = Vacuum control 1 = Blow-Off control Digital input 2 = Disable Energy Saving (ES) Valve 1 control or C2 3 = Disable Automatic Blow-Off functions (ATBO or IBO) control functions 4 = Disable Automatic Condition Monitoring (ACM) 5 = Process Data Out valid (PDO)
- Page 16 “Configuration” menu under “IO-Link vs Std-IO”. For more info, see the manual for your configuration on www.piab.com for more information. For detailed information about IODD, see IODD manual, item number 0207381 on www.piab.com. M12 8p Class A Figure 8 Pin configuration with IO-Link Ready.
- Page 17 Indicator LED - Green, Blow-Off valve Lights only when activated from IO. *Override function for Automatic Condition Monitoring (ACM). See the manual for your configuration on www.piab.com for more information Manual piCOMPACT 23 SMART IO-Link Ready 2 channel Page 17/24...
-
Page 18: Mounting
Installation 4.3 Mounting 4.3.1 2 channels 1.654" 29.3 2.953 " 1.154" Figure 10 2 channels. Page 18/24 piCOMPACT 23 SMART IO-Link Ready 2 channel Manual ®... - Page 19 Installation 4.3.2 Split, manifold mount 1.654 " 2.953" Figure 11 Split, manifold mount. Manual piCOMPACT 23 SMART IO-Link Ready 2 channel Page 19/24 ®...
-
Page 20: Technical Data
Technical data 5. Technical data Pneumatic technical information Description Unit Value COAX ® SX12 COAX ® SX42 Feed pressure, pump at opt. MPa [psi] 0.504 [73.2] 0.515 [74.7] 0.47 [68.2] 0.54 [78.3] Feed pressure, nozzle at opt. MPa [psi] 0.5 [72.5] 0.43 [62.4] Max vacuum at opt. -
Page 21: Warranty
Warranty 6. Warranty The Seller gives its Customers a one-year warranty Customer. Any replaced Products shall become the from the receipt of the Products, accessories, control property of the Seller. devices end Kenos products included. ® The Seller is not responsible for the cost of fitting It is a duty of the Buyer to check the goods at the time replacement parts or components of any Products in of delivery at the agreed destination. -
Page 22: Recycling And Disposal
Environmental aspects are considered in the development process of Piab’s products to make sure that a minimal environmental footprint is used. Piab is certified against with ISO-14001, and also complies with REACH (EC 1907/2006). The ways of handling recycling and disposals vary... - Page 24 +33 (0)16-430 82 67 +46 (0)8-630 25 00 +55 (0)11-449 290 50 +86 21 5237 6545 +33 (0)16-430 82 67 +46 (0)8-630 25 00 +55 (0)11-449 290 50 +86 21 5237 6545 info-france@piab.com info-sweden@piab.com info-brasil@piab.com info-china@piab.com info-france@piab.com info-sweden@piab.com info-brasil@piab.com info-china@piab.com Mölndal...
