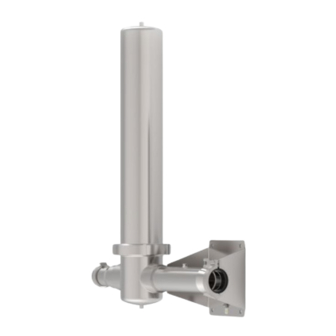

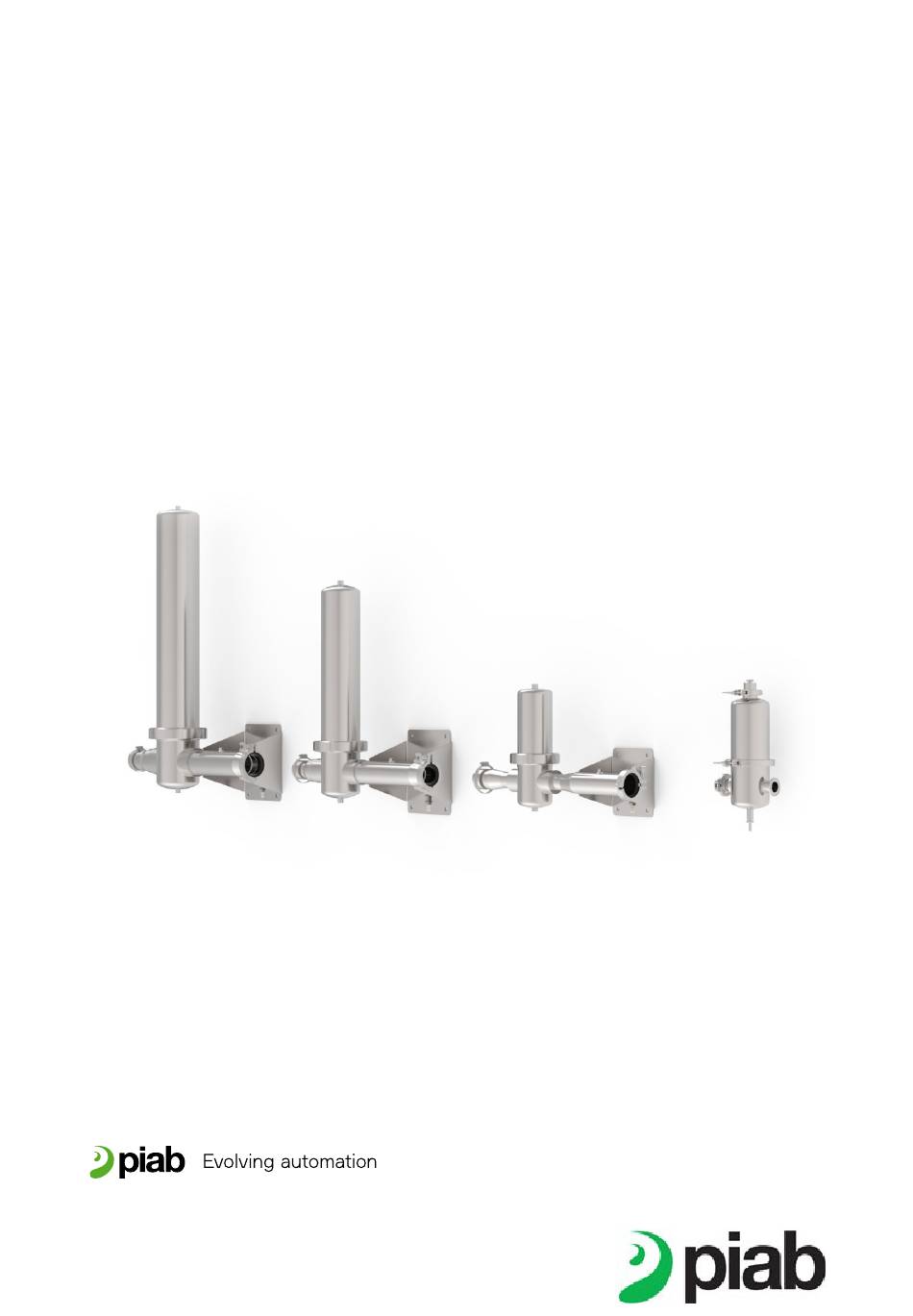

- Page 1 Manual Second stage filter unit piFLOW ® 0201717, 0201690, 0201691, 0201692 Art no. 0201844, Rev07, GB, 2023-11 Original instructions.
- Page 2 0201844 Manual second stage filter unit This manual is available in the following languages at piab.com Copyright © 2023 Piab AB Specifications subject to change without notice. Specifications are subject to change without notice. Rev07...
-
Page 3: Table Of Contents
0201844 Manual second stage filter unit CONTENTS SAFETY INSTRUCTIONS ........................4 TECHNICAL DATA ..........................7 DIMENSIONS ............................8 CONNECTION............................12 INSTALLATION ............................. 13 SERVICE AND MAINTENANCE ......................15 SPARE PARTS ............................. 17 CERTIFICATE ............................21 WARRANTIES ............................22 Specifications are subject to change without notice. Rev07... -
Page 4: Safety Instructions
0201844 Manual second stage filter unit SAFETY INSTRUCTIONS THE INTENDED USE OF THE SECOND STAGE FILTER The intended use for second stage filter is to give an extra protection to avoid conveyed product to leak out in the surrounding environment. VACUUM POWER AT THE INLET Careless usage and incorrect installation of the feeding point of the vacuum system may cause injuries. - Page 5 (oxygen) after which the mixture is ignited by, for example, a spark. Safe mounting For safe use the following shall be observed as to mounting of a Piab vacuum conveyor: Give special attention to the drawings of the manual, as this shows how to mount the seals ...
- Page 6 other. Safe usage The following shall be observed in order to ensure safe usage of a Piab vacuum conveyor and second stage filter: Read the manual for the vacuum conveyor and second stage filter before starting the installation and operation.
-
Page 7: Technical Data
0201844 Manual second stage filter unit TECHNICAL DATA Second stage filter unit P64 Art. No. 0201717 Description Unit Value PDMS, ASTM 316L, EPDM, SS, Material Borosilicate, Silicone Temperature range °C 0-60 Weight Connection TC33.7 flange Ø50.5 Filter area 0.42 Finish Min particle size µm Pressure drop... -
Page 8: Dimensions
0201844 Manual second stage filter unit DIMENSIONS Second stage filter unit P64 Art. No. 0201717 Second stage filter unit P100 Art. No. 0201690 Specifications are subject to change without notice. Rev07... - Page 9 0201844 Manual second stage filter unit Second stage filter units P200 - P400 Art. No. 0201691 Specifications are subject to change without notice. Rev07...
- Page 10 0201844 Manual second stage filter unit Second stage filter units P600 - P800 Art. No. 0201692 Specifications are subject to change without notice. Rev07...
- Page 11 0201844 Manual second stage filter unit FUNCTION Second stage filter unit Second stage filter unit Flow direction P100-P800 Pos. Function Sensing port, filter dirt side Upper housing bowl Filter Elements Sensing port, filter clean side Specifications are subject to change without notice. Rev07...
-
Page 12: Connection
0201844 Manual second stage filter unit CONNECTION Use thread sealant for the spaces between threaded metal parts to prevent and stop the leak. Second stage filter unit P64 Second stage filter unit P100 - P800 Dimension Ø Second stage filter unit Pos. -
Page 13: Installation
0201844 Manual second stage filter unit INSTALLATION It is preferable to install the unit vertically in the piping. To prevent pressure drop for pneumatic pump start signal, the recommended max length is 10m nylon tubing. Second stage filter unit P64 Vacuum flow* Pressure drop [Nl/s]... - Page 14 0201844 Manual second stage filter unit Second stage filter unit P100-P800 Pressure drop, hose Vacuum flow* Diameter Length Volume Pressure drop [Nl/s] [Ø mm] [kPa] Second stage filter 63.5 unit P100 Second stage filter 63.5 unit P200 Second stage filter 63.5 unit P400 Second stage filter...
-
Page 15: Service And Maintenance
Piab recommend that the Second stage filter unit element shall be changed if the pressure drop increases ≥ 5 kPa compared to the initial test result. - Page 16 0201844 Manual second stage filter unit Filter change Specifications are subject to change without notice. Rev07...
-
Page 17: Spare Parts
0201844 Manual second stage filter unit SPARE PARTS Second stage filter unit P64 Spare parts list Pos. Art. No. Description Qty. 0230917 Filter insert P-SRF V 05/30 0201799 Clamp sealing Ø104x2,0 EPDM FDA-flange Ø119 0104038 Clamp sealing Ø25x1,2 EPDM FDA-flange Ø50,5 Specifications are subject to change without notice. - Page 18 0201844 Manual second stage filter unit Second stage filter unit P100 Spare parts list Pos. Art. No. Description Qty. 0230930 Filter insert P-SRF V 07/30 0201800 O-ring for Second stage filter unit P100 0117851 Clamp sealing Ø63,5x1,6 EPDM FDA-flange Ø77,5 Specifications are subject to change without notice.
- Page 19 0201844 Manual second stage filter unit Second stage filter unit P200-400 Spare parts list Pos. Art. No. Description Qty. 0230931 Filter insert P-SRF V 20/30 0201801 O-ring for Second stage filter unit P200-400 0117851 Clamp sealing Ø63,5x1,6 EPDM FDA-flange Ø77,5 Specifications are subject to change without notice.
- Page 20 0201844 Manual second stage filter unit Second stage filter unit P600-800 Pos. Art. No. Description Qty. 0230935 Filter insert P-SRF V 30/50 0201802 O-ring for Second stage filter unit P600-800 0104040 Clamp sealing Ø76.1x1.6 EPDM FDA-flange Ø91 Specifications are subject to change without notice. Rev07...
-
Page 21: Certificate
0201844 Manual second stage filter unit CERTIFICATE Piab systems are designed to meet requirements specified by international standards such as FDA (Food and Drug Administration). Specifications are subject to change without notice. Rev07... -
Page 22: Warranties
Piab replaces or repairs, free of charge, faulty products provided that these are returned to Piab and found to be covered by the warranty. It is at Piab’s discretion whether a faulty product should be sent back to Piab for replacement or if the repair shall be made locally at Piab’s expense.
