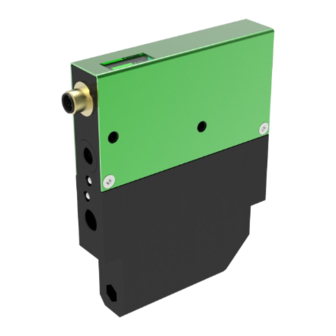

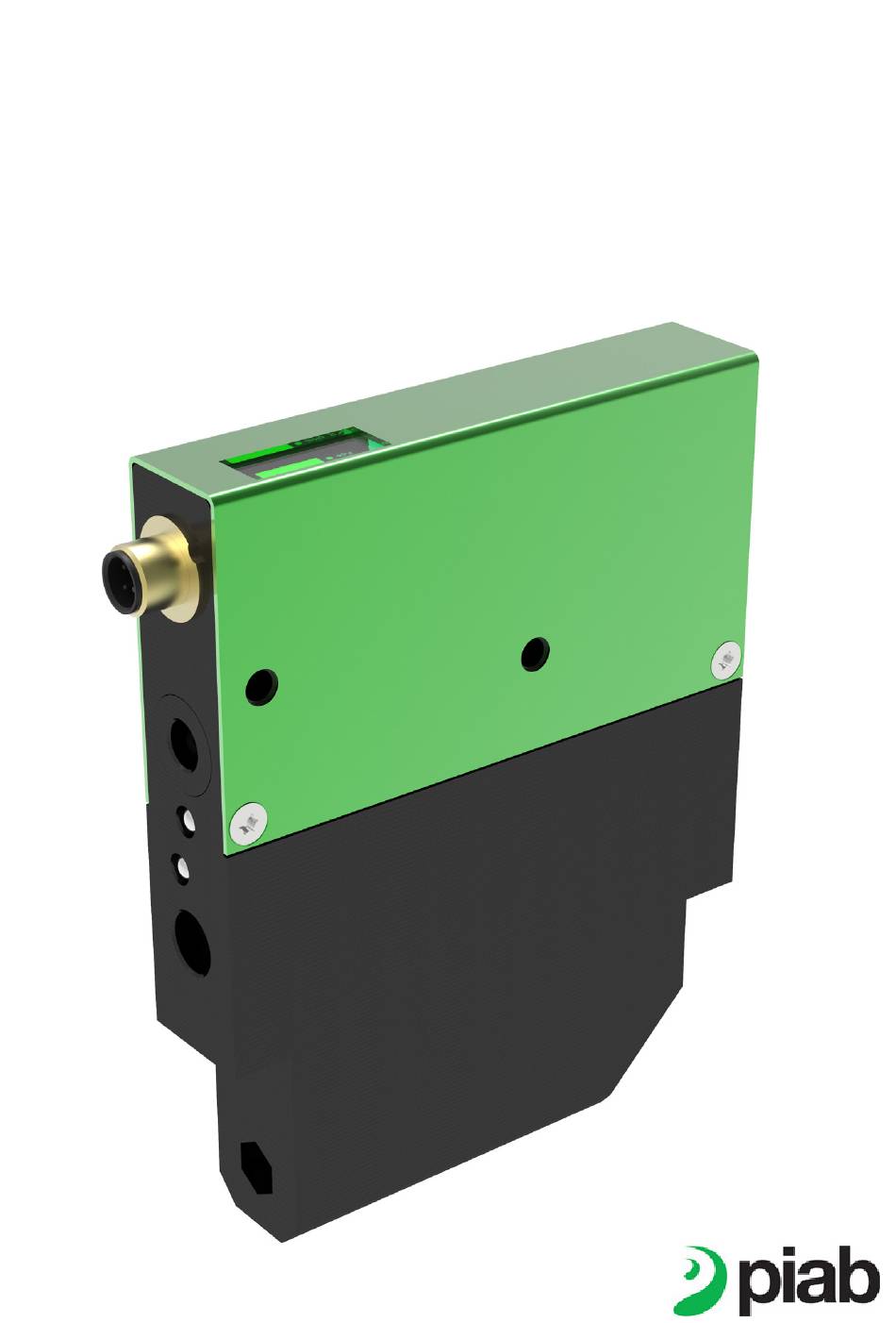

- Page 1 MANUAL 0209627 ACP-SX42PES...
-
Page 3: Table Of Contents
0209627 ACP-SX42PES CONTENTS Features ....................4 Overview....................6 Installation.....................9 Operational...................11 Mounting....................13 Maintenance..................14 Technical data..................18... -
Page 4: Features
0209627 ACP-SX42PES FEATURES ► Pneumatic integrated air-saving function Energy Saving (ES) that minimizes the air consumption by controlling the incoming air flow to the pump. ► Separate port with built-in blow-off check valve. High flow capacity to maximize efficiency to release an object. - Page 5 0209627 ACP-SX42PES INTENDED USE ► The product shall be used to evacuate air (non liquids) from a volume to create vacuum for gripping, holding and processes ► The product can be used to blow air for surface cleaning and to remove vacuum from a volume ►...
-
Page 6: Overview
0209627 ACP-SX42PES OVERVIEW Function Pos. Description Note Cover plate Vacuum sensor switch, part present LED display, see chapter Interface Pressure sensor switch, ES not active Signal when ES is not active ES function, Vacustat Interface gasket Non-return vavle COAX cartridge with holder - SX42... - Page 7 0209627 ACP-SX42PES Connections Pos. Description Size Note Electrical connector M12 4p, A-code M12-M8 adapter M12 4p, M8 4p See chapter electrical connections Compressed air Blow-off G 1/8” Compressed air Vacuum G 1/4” Vacuum port G 3/8” Exhaust with silencer...
-
Page 8: Installation
0209627 ACP-SX42PES INSTALLATION WARNING! Do not install or operate the vacuum pump if damaged during transport, handling or use. Damage may result in bursting and cause injury or property damage. Pneumatic technical information Unit SX42 Feed pressure, pump at opt. - Page 9 0209627 ACP-SX42PES Pneumatic installation The vacuum pump can be installed in any orientation. Ensure that the exhaust from the ejector is not blocked. When connecting oil free compressed air and vacuum hoses to the unit, it is important to choose proper pipe dimensions to prevent pressure drops. Avoid restrictive inner diameters, long piping distances, sharp bends and small sized connections.
- Page 10 0209627 ACP-SX42PES Electrical connection Pin configuration standard M12 4p male connector. Pin No. Name Description Note Supply voltage, 24 VDC (V+) Switch output ES , Max 80 mA ES not active Common, 0 VDC (V-) Switch output 1, Max 100 mA...
-
Page 11: Operational
0209627 ACP-SX42PES OPERATIONAL LED part present switch Note: Remove coverplate to access the settings. Units, Down LED green [ S ] Display, LED green -kPa -inHg S Switch ES Low ES High Switch output enable, LED Green Modes, LED green... - Page 12 SW / Short-circuit protection for Check sensor A2DP otuput wiring for S1 Pressure not whitin adjustable Only possible if atmospheric pressure equiv- range alent to ±3% or less of F.S. (Full Scale). Unplug power from ACP-SX42PES, then Internal error plug it back in.
-
Page 13: Mounting
0209627 ACP-SX42PES MOUNTING... -
Page 14: Maintenance
0209627 ACP-SX42PES MAINTENANCE Exploded view Spare parts Description Item number Coverplate Vacuum sensor switch, part present ES functionality Vacustat Blow-off check valve Pressure sensor switch, ES not active None-return valve COAX cartridge SX42 0205724 ®... - Page 15 0209627 ACP-SX42PES Cleaning or replacement of Filter COAX and Blow-off check valve ® Glue with Loctite 222 or equal Description Plug low G1/4” O-ring 14,1 x 1,6 mm Wave Spring Check Valve EM23 COAX cartridge SX42 ® COAX holder ®...
- Page 16 0209627 ACP-SX42PES Cleaning or replacement of Poppet valve First remove the coverplate (1) by loosening four cross-headed screws (2). Remove the sprint (3) and lift out the vacuumswich (4). Rotate the pressureswitch (5) 90 degrees anticlockwise and remove the screw (6) on the holder (7) and the two screws (8) on the vacustat.
- Page 17 0209627 ACP-SX42PES Cleaning or replacement of Flap valve First remove the bottom piece by loosening four M5 cross-headed screws (1). Remove and clean or change the Flapvalve (2). Remount the bottom piece and tighten the screws (2). Glue with Loctite 222 or equal...
-
Page 18: Technical Data
0209627 ACP-SX42PES TECHNICAL DATA Pneumatic technical information Description Unit Value Feed pressure, max MPa [psi] 0.7 [101.5] Feed pressure, pump at opt. MPa [psi] 0.45 [68.2] Feed pressure, nozzle at opt. MPa [psi] 0.43 [62.4] Max vacuum at opt. pressure -kPa [-inHg] 90 [26.6]... - Page 19 0209627 ACP-SX42PES Technical data Vacuum sensor switch, part present Description Unit Value Overpressure, max. MPa [psi] 0.4 [58.0] Signal range -kPa [-inHg] 0-101 [0-29.9] Safety classification IP54 Max output load, digital output 0.08 Humidity 35-85 Response time Accuracy ±3% of F.S. (Full Scale)
- Page 20 0209627 ACP-SX42PES WARNING! Do not install or operate your ACP-SX42PES if damaged during transport, handling or use. Damage may result in bursting and cause injury or property damage. (GB) Safety (IT) Segnali di av- (SE) Säkerhet (DK) Advarselsymboler vertenza (FI)
- Page 22 Piab gives you service all over the world. To fi nd your local distributor, please visit www.piab.com No need to compromise www.piab.com...
