VAT 64.2 Series Installation, Operating And Maintenance Instructions

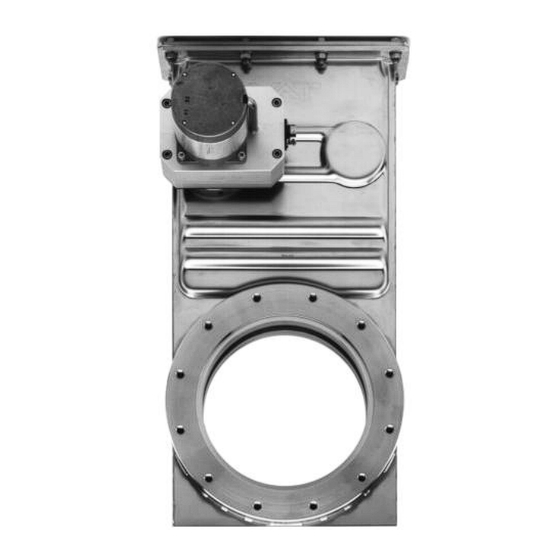

Control gate valve with direct drive
Hide thumbs
Also See for 64.2 Series:
- Installation, operating, & maintenance instructions (119 pages) ,
- Installation and operating instructions manual (107 pages) ,
- Installation, operating, & maintenance instructions (82 pages)
Advertisement

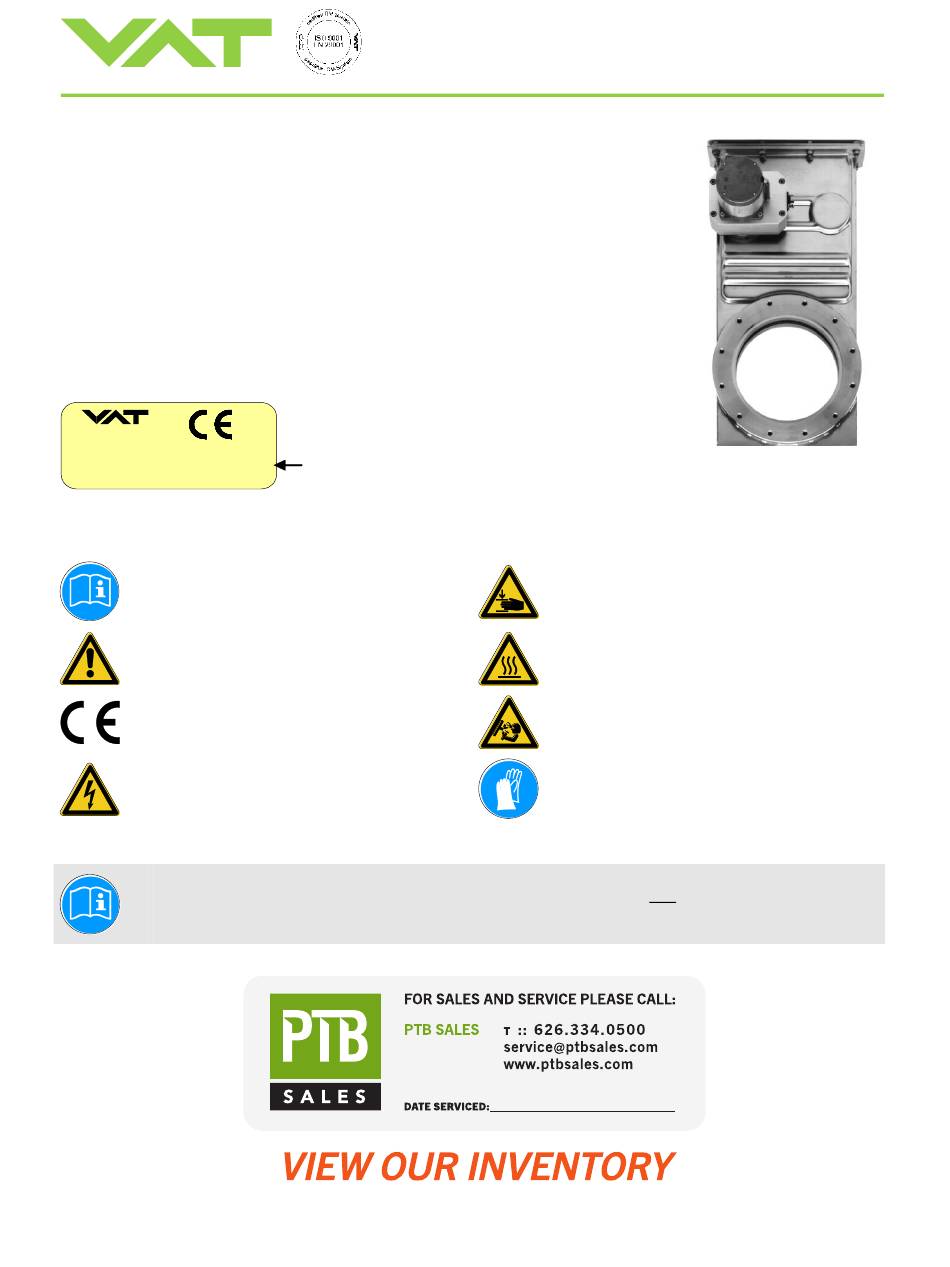

Control Gate Valve
with Direct Drive
This manual is valid for the valve ordering numbers:
642..-.E52
The respective product identification is given on each valve in the following way
(or similar):
. .
made in Switzerland
Fabrication No.:
patented
642 . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air
lines. Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
Installation, Operating, and Maintenance Instructions
Series 64.2, DN 160 - 400
Fabrication number
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
219036EJ
2013-03-04
1/10
Advertisement
Table of Contents
Related Manuals for VAT 64.2 Series
Summary of Contents for VAT 64.2 Series
- Page 1 Do not touch parts under voltage! Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General Safety Instructions» carefully before you start any other action! VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219036EJ 1/10 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com...
- Page 2 VAT products. The VAT firmware contains a limited, time unlimited user license. The VAT firmware may not be used for purposes other than those intended nor is it permitted to make copies of the VAT firmware. In particular, it is strictly forbidden to give copies of the VAT firmware to other people.
- Page 3 Use product for vacuum applications under the conditions indicated in chapter "Technical Data" only! Other applications are only allowed with the written permission of VAT. Corrosive process gases may impact the performance of the product. Please contact VAT to assure that the product is compatible with the process gases used in your application.
- Page 4 7840 1760 If a combination of both forces (F and M) occurs, the values mentioned above are invalid. Please contact VAT for more information. VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219036EJ 4/10 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com...
-
Page 5: Electrical Connection
Electrical connection Do not touch electrical parts under voltage! This control valve may only be operated with a VAT PM-4 or PM-5 Adaptive Pressure Controller and the corresponding cable supplied by VAT. The PM-4 or PM-5 control unit has to be turned off for at least 60 seconds before connecting or disconnecting the cable to the valve. -
Page 6: Preventive Maintenance
- Inspect the bonnet seal, ball bearings and crank bolt. - Replace items (Spare part kit ‘C’), if corrosion or deposition of process by-products occured. - In corrosive processes: Relubricate locking balls with VAT Vacuum grease. Replace and lubricate locking balls, if corrosion has occured. - Page 7 - Lift off counter plate (18) and ball guide plate (16) - Replace locking balls (19), lubricate balls with VAT vacuum grease (E) before installation - Reassemble in reverse order, lubricate weld bolts on plate with VAT vacuum grease (E) before mounting hexagonal nuts 6.
-
Page 8: Spare Parts
Feedthrough assembling tool 240451 97381-R1 VAT vacuum grease (40 g) N-6951-012 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219036EJ 8/10 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-03-04... - Page 9 Installation, Operating, and Maintenance Instructions Series 64.2, DN 160 - 400 OPTION: R1/8" port VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219036EJ 9/10 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-03-04...
-
Page 10: Troubleshooting
VAT's inspection confirming the existence of any defect inconsistent with said warranty or any such failure, be entitled to have such defect or failure cured at VAT's factory and at no charge therefor, by replacement or repair of said product, as VAT may elect.
