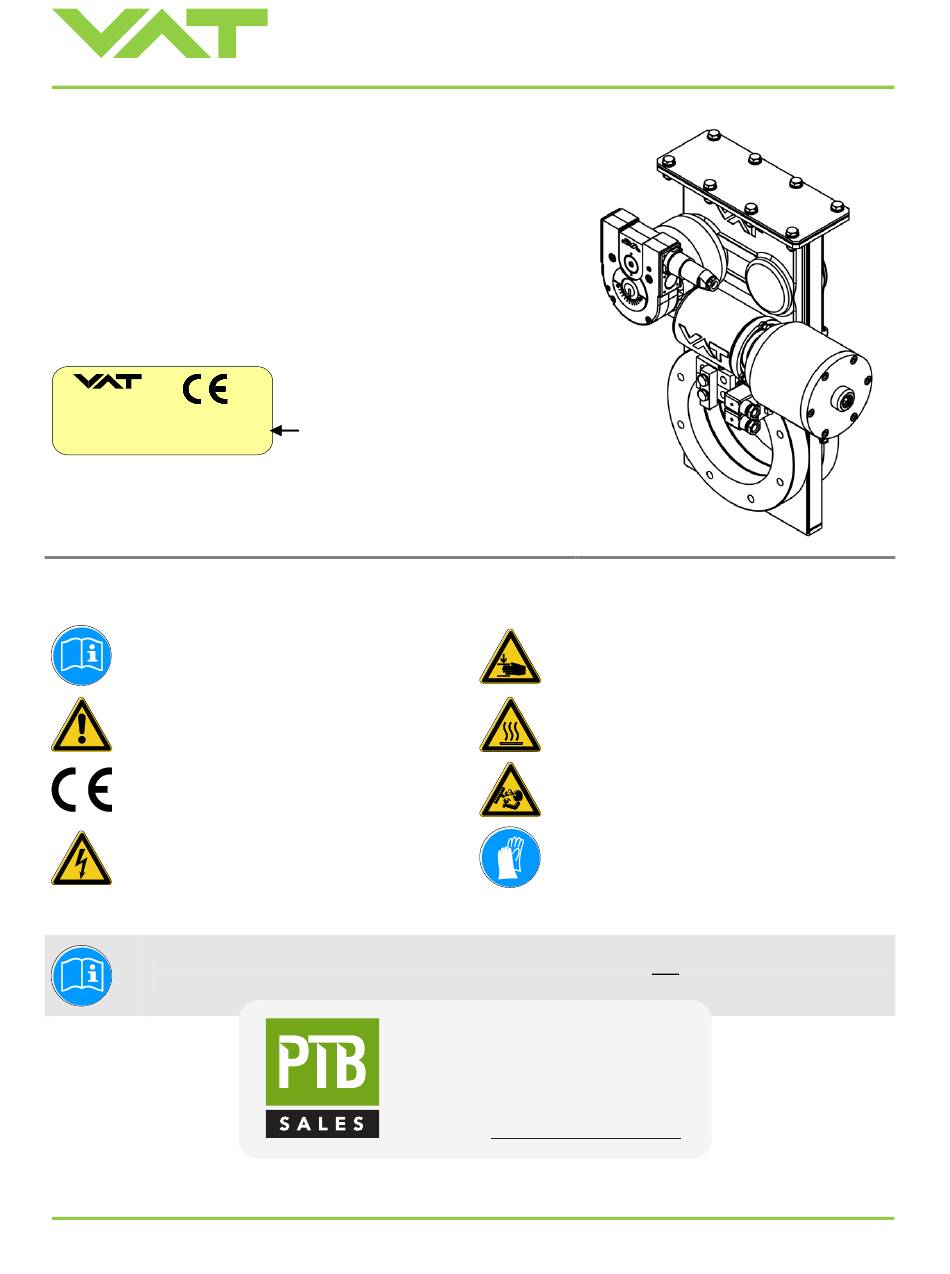

Control Gate Valve
with 3-position pneumatic actuator
This manual is valid for the valve ordering number(s):
640.. - .E.8 - . . . .
The fabrication number is indicated on each product as per the label
below (or similar):
made in Switzerland
Fabrication No.:
patented
640 . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air lines.
Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
Installation, Operating & Maintenance Instructions
Series 64, DN 63-400 (I.D. 2
. .
Fabrication number
FOR SALES AND SERVICE PLEASE CALL:
PTB SALES
DATE SERVICED:
VIEW OUR INVENTORY
1
/
" - 16")
2
Sample picture
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
:: 626.334.0500
T
sales@ptbsales.com
service@ptbsales.com
www.ptbsales.com
219034EM
1/19
2013-08-27
Advertisement
Table of Contents
Related Manuals for VAT 64 Series
Summary of Contents for VAT 64 Series
- Page 1 FOR SALES AND SERVICE PLEASE CALL: PTB SALES :: 626.334.0500 sales@ptbsales.com service@ptbsales.com www.ptbsales.com DATE SERVICED: VIEW OUR INVENTORY VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 1/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-08-27...
- Page 2 VAT products. The VAT firmware contains a limited, time unlimited user license. The VAT firmware may not be used for purposes other than those intended nor is it permitted to make copies of the VAT firmware. In particular, it is strictly forbidden to give copies of the VAT firmware to other people.
-
Page 3: Table Of Contents
5.1.1 Procedures ............................. 15 6 Drawing ................................... 17 7 Spare parts ................................18 8 Warranty ................................. 19 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 3/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-08-27... -
Page 4: Use Of Product
Use product for clean and dry indoor vacuum applications under the conditions indicated in chapter «Technical data» only! Other applications are only allowed with the written permission of VAT. Corrosive process gases may impact the performance of the product. Please contact VAT to assure that the product is compatible with the process gases used in your application. -
Page 5: Installation
Tighten mounting screws of the flanges uniformly in crosswise order. Observe the maximum torque according to the grade of screws and depth of thread you use. VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 5/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 6: Admissible Forces
7840 1760 If a combination of both forces (F and M) occurs, the values mentioned above are invalid. Please contact VAT for more information. VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 6/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 7: Compressed Air Connection
4 mm for lengths up to 1 m 6 mm for lengths from 1 m to 5 m 8 - 10 mm for lengths above 5 m VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 7/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 8: Actuator Position (Example)
Actuator on „B-position“ (Option) open position intermediate position closed position 1 = air pressure 0 = no air pressure VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 8/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-08-27... -
Page 9: Electrical Connection
+ = solenoid coil supplied with current - = solenoid coil not supplied with current - = solenoid coil not supplied with current VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 9/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... - Page 10 + = solenoid coil supplied with current - = solenoid coil not supplied with current - = solenoid coil not supplied with current VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 10/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com...
-
Page 11: Operation
Before moving the bolt screw 'M', open the locking screw (B) (allen wrench 2.5mm). After adjustment the intermediate position, fasten the locking screw (B). For easy adjustment, VAT is recommending to switching off the compressed air during adjustment of the intermediate position. -
Page 12: Operation Under Increased Temperature
Attention! Remote operation is only possible when both screws are turned fully counter-clockwise VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 12/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-08-27... -
Page 13: Trouble Shooting
Contamination from the process may influence the function and requires more frequent maintenance. Before carrying out any maintenance or repairs, please contact VAT. It has to be individually decided whether the maintenance/repair can be performed by the customer or has to be carried out by VAT. The fabrication number on the valve made in Switzerland Fabrication No.:... -
Page 14: Preventive Maintenance
" - 16") Products returned to VAT must be free of harmful substances such as e.g. toxical, caustic or microbiological ones. If products are radioactively contaminated, fill in the VAT form «Contamination and Radiation Report» and send it with the product. -
Page 15: Procedures
DN 63: Push center spring down and dismount two-piece circlip from the center bearing. Lift off ball guide plate DN 100 - 400: Unscrew the hexagonal nuts (19). Lift off counter plate (20) and ball guide plate (18) Remove the locking balls (21) VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 15/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... - Page 16 Remove gate assembly (4) as per items 1 and 2 Remove actuator as per item 6 Push the roll pin (12) out of the feedthrough shaft. Use VAT feedthrough assembling tool or a punch. Remove lever (17). Loosen the 2 screws of the feedthrough assembly (9)
-
Page 17: Drawing
Installation, Operating & Maintenance Instructions Series 64, DN 63-400 (I.D. 2 " - 16") Drawing VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 17/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-08-27... -
Page 18: Spare Parts
D Feedtrough assembling tool 91001-R1 227400 E VAT vacuum grease (40g) N-6951-012 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 219034EM 18/19 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2013-08-27... -
Page 19: Warranty
(including any delay in or failure to deliver), packaging, storage or use of any product sold or delivered by VAT shall fail to conform to the foregoing warranty or to the...
