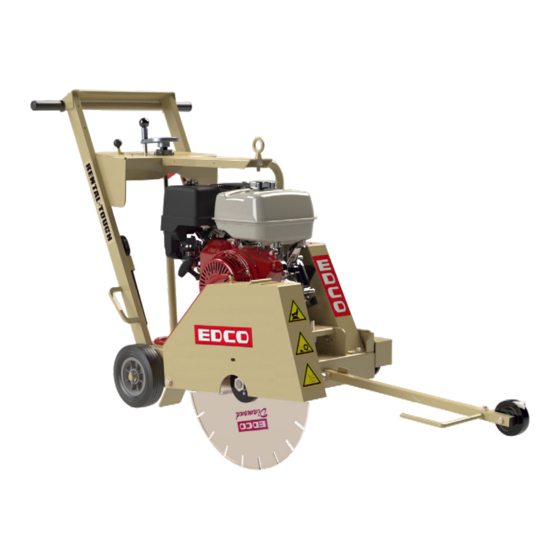

Summary of Contents for Edco DS-18

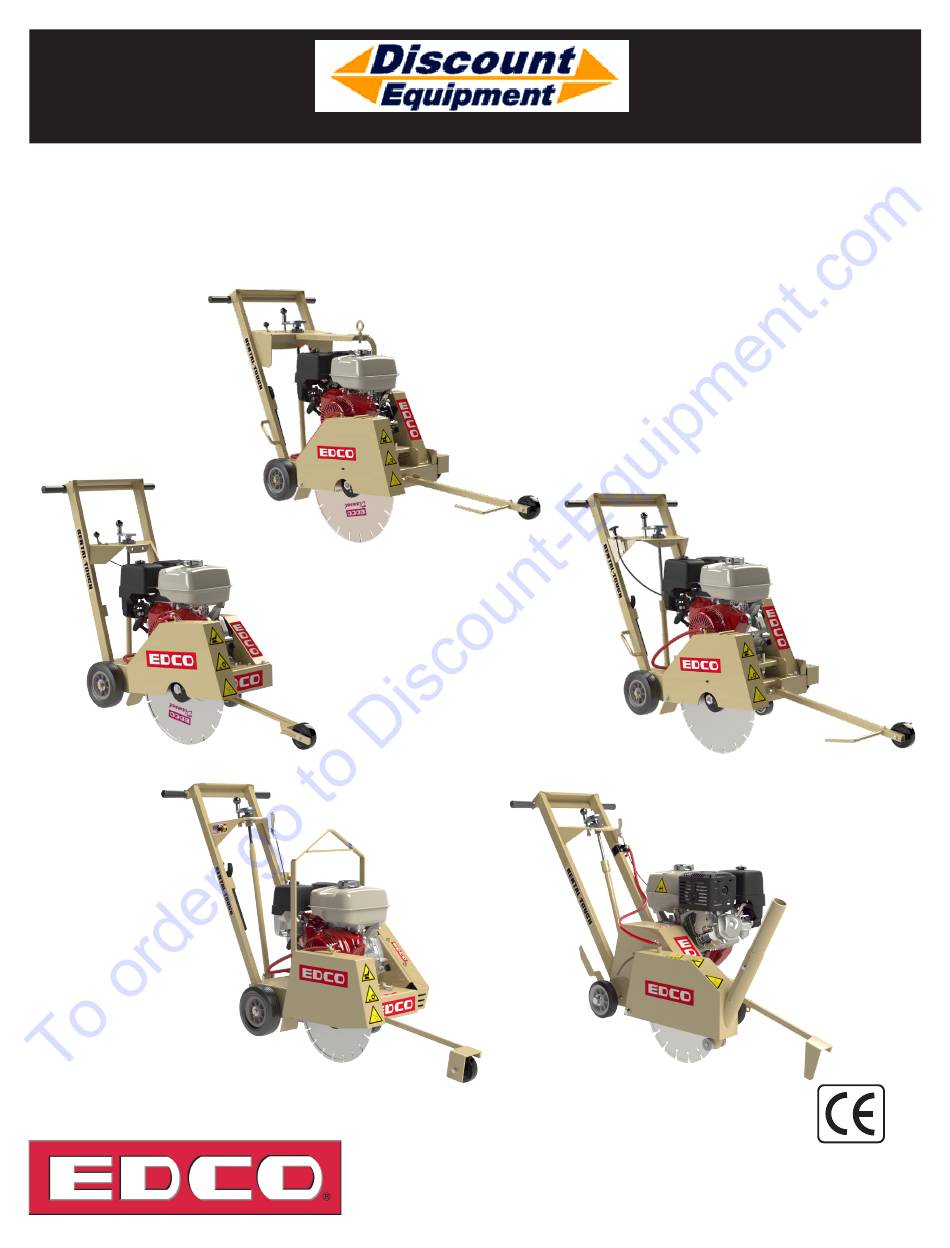

- Page 1 MPS-I-0819 E-SPTS-I-0809 Operator’s Instruction Manual Concrete/Asphalt Saws DS-20 KL-18 DS-18 SK-14 SB-14 ASB-14 ELECTRIC, GASOLINE AND PNEUMATIC MODELS EQUIPMENT DEVELOPMENT CO., INC.
- Page 2 Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
-
Page 3: Table Of Contents
Note: All dimensions and weights are for reference only and subject to change at any time. “F” “A” “B” “C” “D” “E” Figure 1 Model # DS-20 DS-18 KL-18 SK-14 SB-14 ASB-14 “A” 39” 39 3/8” 38 1/2” 38” 37”... -
Page 4: Safety Information
MPS-I-0819 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SAFETY INFORMATION SAFETY MESSAGES PROPANE POWERED EQUIPMENT CONTINUED • Propane is extremely flammable and is heavier • Safety Instructions are proceeded by a graphic alert than air and tends to settle in low areas where a symbol of DANGER, WARNING, or CAUTION. - Page 5 • Disconnect the air supply before per- • Lead from lead-based paints. forming any maintenance on this ma- chine. Use only genuine EDCO parts • Crystalline silica from bricks, concrete and other with this equipment. Failure to do so may masonry products.Your risk of exposure to these chemi...
- Page 6 MPS-I-0819 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SAFETY INFORMATION O P E R ATO R R E S P O N S I B I L I T I E S GENERAL INSTRUCTIONS • Read and follow all safety decals and labels. •...
- Page 7 California. While the exposure from EDCO products may be negligible or well within the “no significant risk” range, out of an abundance of caution, EDCO has elected to provide these Proposition 65 warnings.
- Page 8 MPS-I-0819 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. DUST AND CRYSTALLINE SILICA WARNING Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes contain- ing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm.
- Page 9 MPS-I-0819 EQUIPMENT DEVELOPMENT CO., INC. SAFETY SYMBOLS This symbol means that the guards must remain in place while the engine/motor on the machine is running because death or personal injury may result. (Yellow background with black pictogram and black outline) This symbol means that there are moving parts and if feet/fingers/digits are inserted under any edge of the cutter/grinder/saw cover while the engine/motor on the machine is running that personal injury and loss of foot/fingers/digits may result.
- Page 10 MPS-I-0819 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SAFETY SYMBOLS This symbol means that the Operator’s, owners, instruction and/or manufacturer(s) manuals must be read and understood before operating or attempting to operate this electrical, gasoline, diesel or propane powered equipment, failure to do so can result in personal injury and possible death. (Blue background with white pictogram.) This symbol means that proper eye protection must be worn/used during the operation of this equipment.
-
Page 11: Safety Guidelines
• The SK-14, SB-14, DS-20, KL-18, and the DS-18 are to be operated by a single operator from a position at the rear of the saw. • Avoid deck inserts, pipes, columns, openings, electrical outlets, or any objects protruding from slab surface. -
Page 12: Operating Controls
Diagrams shown with Honda Cyclone Dual-Filter Element Engine as an example. Consult the Engine Manufacturer’sOwner’s Manual for information on specific models. Please Note: Gasoline Powered ( DS-18 SHOWN) Controls shown are for the model indicated. Engine Stop Switch Depth Control... -
Page 13: Operating Instructions
MPS-I-0819 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operating Instructions FOR WET CUTTING: Attach the water supply. A flow rate of approximately 2 gallons per minute (minimum) is • required. Attach the water hose to the coolant valve. Use the valve to control the flow of water. •... - Page 14 WHEN HOISTING A CONCRETE SAW EQUIPPED WITH A LIFTING BAIL: Always inspect frame and Optional Accessories Optional Water Tank Kit for SK-14 (P/N 52075), SB-14 (P/N 51090), DS-18 (P/N 56310). DS-20 (P/N 56310). KL-18 (P/N 56310) **KL-18 Requires optional lifting bail for Water...
-
Page 15: Changing Blades
Never exceed the maximum operating speed of the blade. Be sure to match the blade speed rating with the arbor shaft speed on the machine. The standard models of the SK-14, SB-14, DS-18 have an arbor shaft speed (unloaded) of 3600 RPM and 3000 RPM under load. -
Page 16: Maintenance Instructions/Schedule
Do not use a blade without a drive pinhole. • For safety reasons, EDCO does not recommend the use of any abrasive blades. Abrasive blades can break and cause serious personal injury to operator and/or bystanders. If abrasive blades are used by choice, use only rein- forced abrasive blades. - Page 17 Grease Bearings Every 4 Hours of Use NOTE: Wipe grease fittings clean before servicing. MODEL SK-14 GREASE FITTINGS MODEL SB-14 ASB-14 GREASE FITTINGS MODEL DS-18, DS-20 & KL-18 GREASE FITTINGS Possible Diamond Blade Problems Arbor Hole Out-of-Round: Cracked Segments Blade Will Not Cut:...
- Page 18 MPS-I-0819 EQUIPMENT DEVELOPMENT CO., INC. Repairs are to be done Read and follow instructions by authorized EDCO in the Engine Manufacturer’s Dealers only. Owner’s Manual. Maintenance Schedule This is for a quick reference to the information supplied in the Maintenance portion of this manual.
- Page 19 Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
