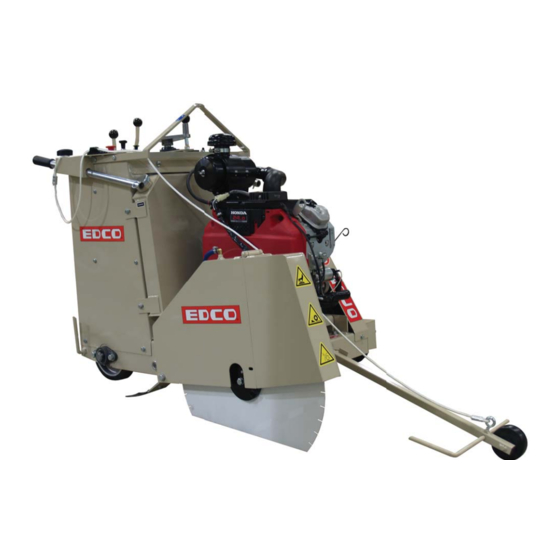

- Page 1 E-SS24-I-1117 Operators Instruction Manual SS-24 Self Propelled Concrete/Asphalt Saw Printed in USA ©2017 Page 1 A Division of Equipment Development Company, Inc.
- Page 2 Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
- Page 3 E-SS24-I-1117 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp MESSAGES the plug, not the cord.
-
Page 4: Table Of Contents
E-SS24-I-1117 Equipment Instruction Manual EDCO Model SS-24 Table of Contents Section Page Number Safety Guidelines......................4 Operating Instructions....................5-8 Maintenance.........................9-14 Maintenance Schedule....................15 Dust and Crystalline Silica Warning.................16 Machine Safety Symbol Label Reference..............17,18 Limited Equipment Warranty....................19 Note: Dimensions are approximate Figure 1 Model# SS-24 69”... -
Page 5: Safety Guidelines
• EDCO SP equipment are now equipped with an EVAP system to trap and dispose of fuel vapors before they can escape into the atmosphere. This EVAP system contains a charcoal canister plumbed into the fuel system that transfers vapors back to the engine to be burned. -
Page 6: Operating Instructions
9 - Speed Control: Controls saw speed in FWD and REV. This EDCO saw is equipped with a Hydrostatic Transmission, 2 - Choke: Use to aid cold weather engine starting. Follow the which permits infinite speed control. (Actual cutting speed is instructions in the Engine Owner’s Manual. - Page 7 E-SS24-I-1117 Before Starting the Engine: • Read Rx for Concrete Saws before operating. • Inspect machine before each use according to the Maintenance Schedule on page 15. • Locate and be familiar with all engine and saw controls (Figure 2). •...
- Page 8 Note: If while cutting, the front wheels start to lift, reduce forward speed. For positioning the saw, the maximun forward speed is 200ft per minute. For safety reasons when in reverse the SS-24 is designed to move at a slow walking pace. Do not force it to go faster.
- Page 9 E-SS24-I-1117 To Stop Cutting: • Move Speed Control lever to the NEUTRAL position. • Turn Depth Control Handwheel clockwise until blade is clear of slab. • Push Clutch Lever forward, away from operator to the FREE WHEEL position; this will stop all forward motion. (Page 7, Figure 8) •...
-
Page 10: Maintenance
E-SS24-I-1117 The following maintenance instructions are brief explanations of some of the items suggested in the Maintenance Schedule chart on page 15. These instructions are not replacements for the Engine Manufacturer’s Maintenance Instructions. Maintenance Should the Engine Stop While Operating: •... - Page 11 For safety reasons, EDCO does not recommend the use of any abrasive blades. Abrasive blades can break and cause serious personal injury to operator and/or bystanders. If abrasive blades are used by choice, only use those which are marked as reinforced abrasive blades.
- Page 12 E-SS24-I-1117 (Left side not shown) Important! Arbor Shaft Bearings MUST be lubricated EVERY FOUR HOURS! Drive Axle Bearings (2) Grease Bearings - (7 Total) Arbor Shaft Bearings (2) must be greased every 4 hours. All other Bearings (5) must be greased every 40 hours. Those include: Rear Wheel Bearings (2), Drive Axle Bearings (2), and the Depth Control Handle...
- Page 13 E-SS24-I-1117 Check Engine Oil Before Each Operation - Check Engine Manufacturer’s Owner’s Manual for specific instructions. Change Oil & Filter Every 50 Hours of Operation (Sooner if Necessary). Check Drive Chains Before Operation Lubricate Weekly Remove the maintenance door at the rear of the machine. Drive chain is just inside in the center of the machine.
- Page 14 E-SS24-I-1117 Changing To Left-Side Cutting: • Disconnect water hose from the blade guard. • Using SAE 9/16” and 3/4” wrenches, remove the bolts on the blade guard. • On the other side of the machine, remove the arbor guard. • You will have to reroute the water hose to the other side of the engine.
- Page 15 E-SS24-I-1117 Inspect and Replace Air Filter Element If Dirty (Shown with Honda Engine) Replace when necessary with factory parts. Refer to the Engine Manufacturer’s Owner’s Manual for specific requirements. Air Filter Transmission Fluid Inspect Transmission Fluid Level Every 50 hours of operation - fill as required. The fill level line is located on the fill spout.
-
Page 16: Maintenance Schedule
E-SS24-I-1117 Maintenance Schedule Repairs are to be Read and follow instructions done by authorized in the Engine Manufacturer’s EDCO DEALERS only. Manual Follow Engine Man- ufacturer’s Mainte- nance Schedule Visual Inspection of Entire Machine Inspect Blade Inspect Arbor Shaft Check Engine Oil... -
Page 17: Dust And Crystalline Silica Warning
E-SS24-I-1117 DUST AND CRYSTALLINE SILICA WARNING Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheets and/or consult your employer, the manufacturers/suppliers, governmental agencies such as OSHA and NIOSH and other sources... -
Page 18: Machine Safety Symbol Label Reference
E-SS24-I-1117 Safety Symbols This symbol means that the guards must remain in place while the engine/motor on the machine is running because death or personal injury may result. (Yellow background with black pictogram and black outline) This symbol means that there are moving parts and if feet/fingers/digits are inserted under any edge of the cutter/grinder/saw cover while the engine/motor on the machine is running that personal injury and loss of foot/fingers/digits may result. - Page 19 E-SS24-I-1117 Safety Symbols This symbol means that the Operator’s, owners, instruction and/or manufacturer(s) manuals must be read and understood before operating or attempting to operate this electrical, gasoline, diesel or propane powered equipment, failure to do so can result in personal injury and possible death. (Blue background with white pictogram.) This symbol means that proper eye protection must be worn/used during the operation of this equipment.
-
Page 20: Limited Equipment Warranty
Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
