System Information; Component Descriptions - Lippert SlimRack Plus Maintenance, Troubleshooting And Service Manual

System Information

The Lippert SlimRack® Plus Slide-Out is a rack-and-pinion design operated by two 12V DC gear motors.
Changes to weight, stroke, weight distribution, rail position, controller, power supply seals, slide toppers,
ramps, rollers, etc. all have an effect on the performance of the system.

Component Descriptions

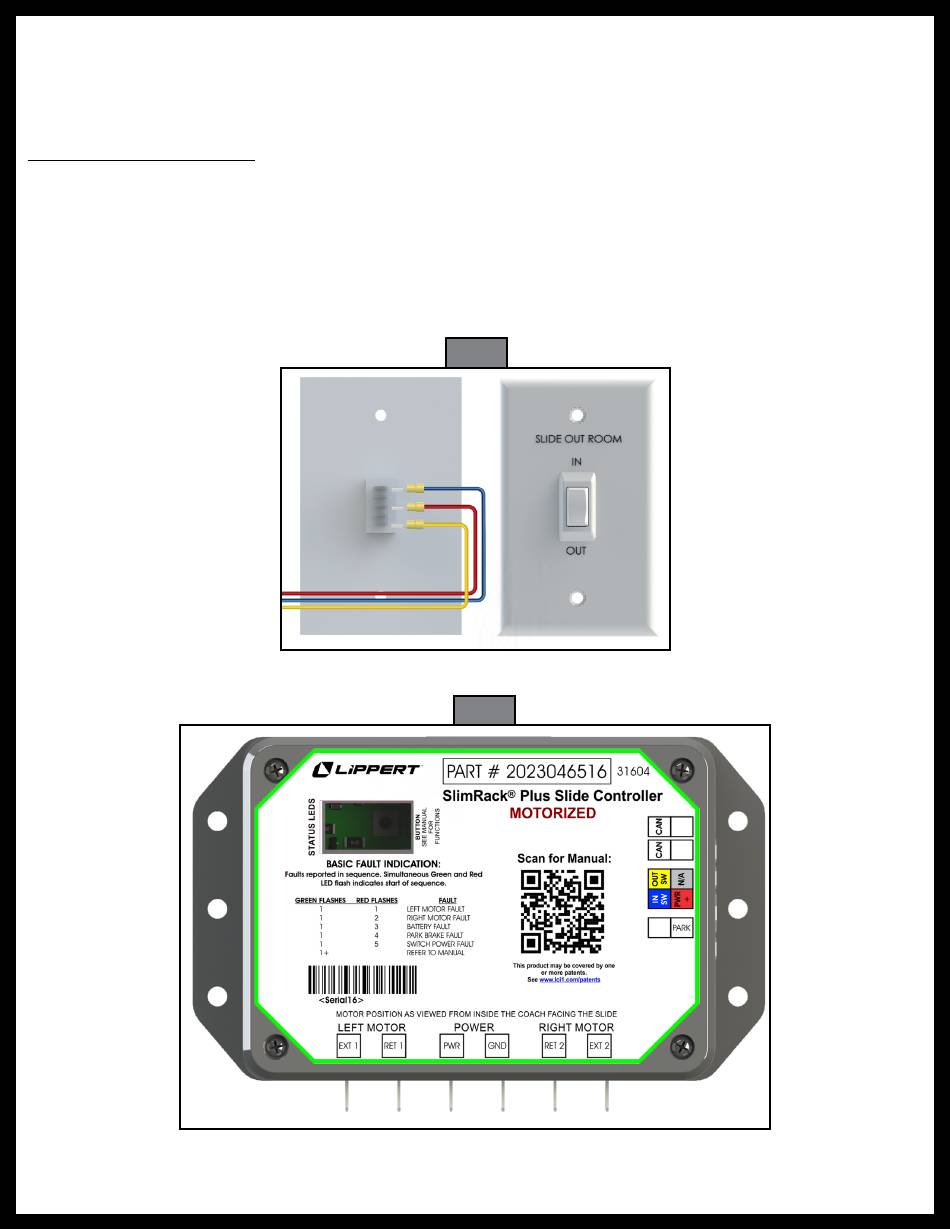

• Rocker switch (Fig. 1) that mounts to the wall.
• The controller (Fig. 2) is sensorless and has no option for programming. The controller constantly learns and
refines the synchronization between the two sides of the slide. To ensure the best end user experience,
perform the steps described in Performing an Initial Synchronization once at the factory.
• Floor rollers (not supplied by Lippert) that support the slide-out's weight while extending and retracting
the slide-out. Only floor rollers approved by Lippert can be used with the system. Contact Lippert for
recommended rollers.
