Purpose
This document outlines the procedure for removing and replacing the theater seating mechanism.
Safety
Read and understand all instructions before installing or operating this product. Adhere to all safety labels.
The "CAUTION" symbol above is a sign that a procedure has a safety risk involved and may cause
personal injury, product and/or property damage if not performed safely and within the parameters
Use appropriate personal protective equipment (PPE) for the procedure being performed.
Resources Required
• 1 to 2 people depending on task
• Cordless or electric drill or screw gun
• Appropriate drive bits
Procedure

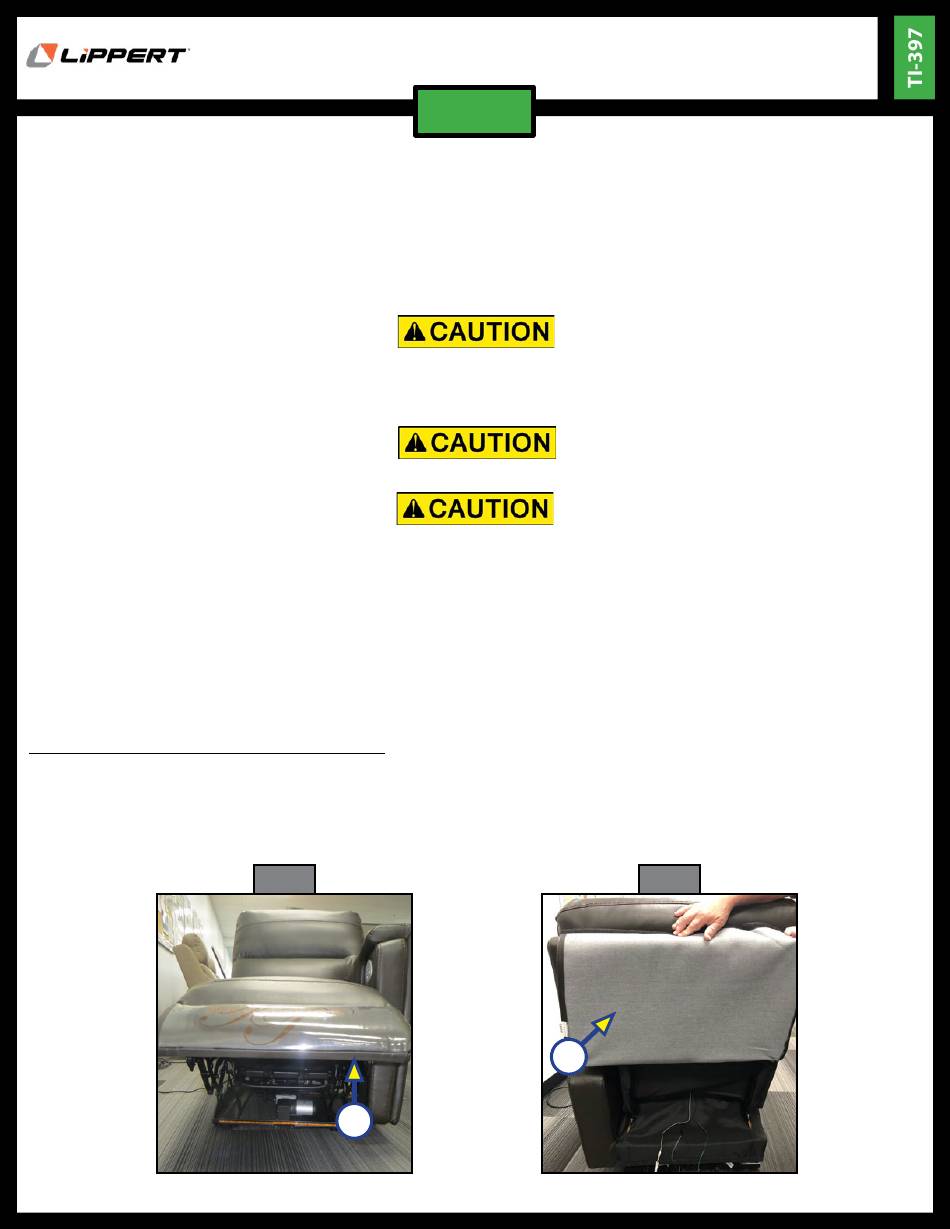

Removing the Seating Mechanism Base
1.
Unplug the theater seat from its power source.
2.
Place the theater seat on a clean soft surface.
3.
Make sure the foot rest (Fig. 1A) is in the extended position.
4.
Raise the back flap (Fig. 2A) of the theater seat to expose the backrest wires and latches.
Rev: 04.30.21
THEATER SEATING
MECHANISM REPLACEMENT
set forth in this document.
Moving parts can pinch, crush or cut. Keep clear and use caution.
Fig. 1
A
FURNITURE
• Drill bit extension
• 10mm Ratchet
A
Page 1
• Cutting tool
• Zip ties
Fig. 2
CCD-0004339
