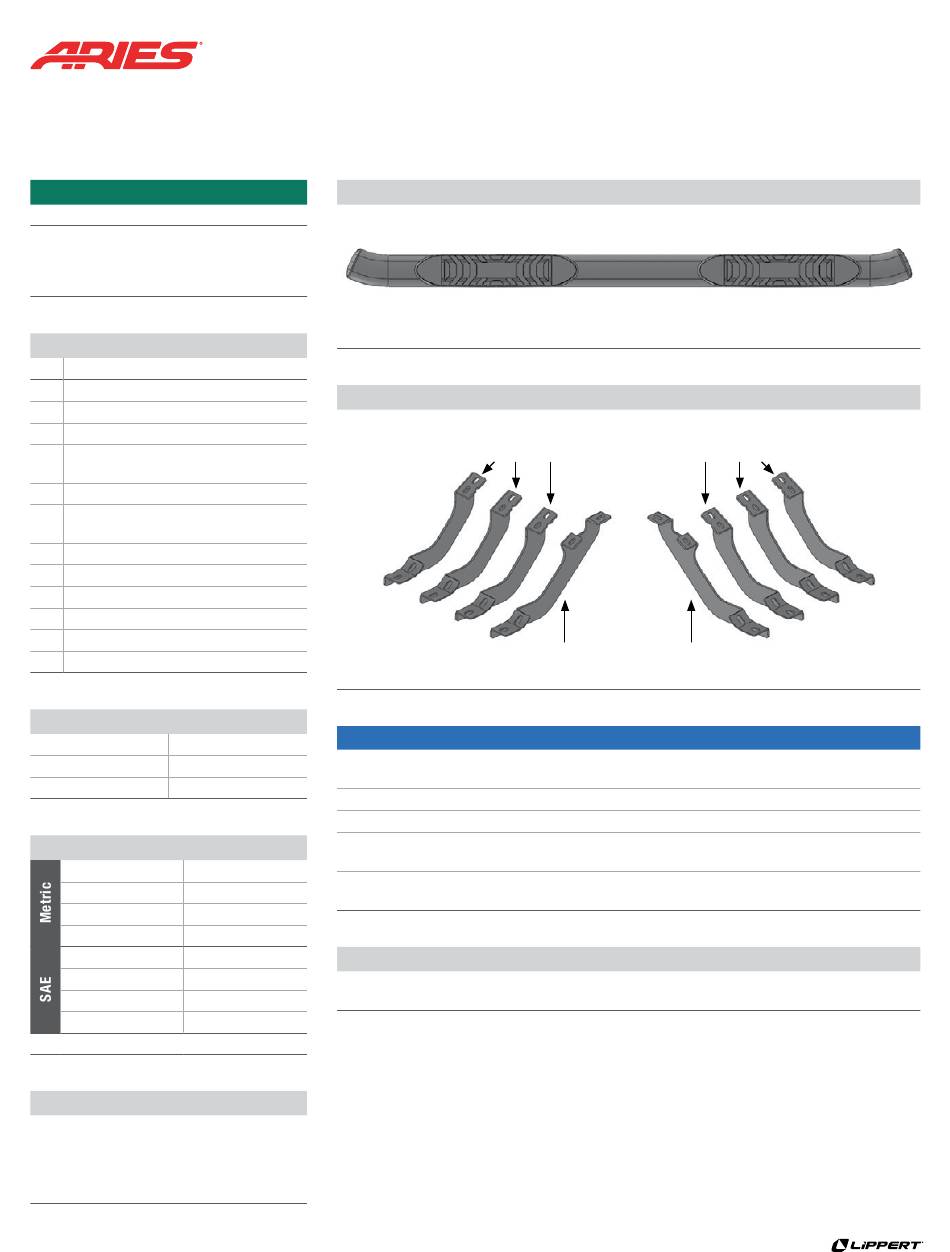

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Qty Description
1
Driver / left running board
1
Passenger / right running board
1
Driver / left front mounting bracket
1
Passenger / right
front mounting bracket
3
Driver / left rear mounting bracket
3
Passenger / right
rear mounting bracket
16
Hex bolt, 8mm x 30mm
16
Lock washer, 8mm
16
Flat washer, 8mm x 24mm OD x 2mm
16
Hex bolt, 10mm x 30mm
16
Lock washer, 10mm
16
Flat washer, 10mm x 20mm OD x 2mm
Tools Required
Ratchet
Socket set
Torque wrench
Socket extension
Level
--
Torque Specifications
M6 bolt
3 ft-lbs.
M8 bolt
7 ft-lbs.
M10 bolt
16 ft-lbs.
M12 bolt
28 ft-lbs.
1/4" bolt
3 ft-lbs.
5/16" bolt
7 ft-lbs.
3/8" bolt
16 ft-lbs.
7/16" bolt
20 ft-lbs.
Use above torque setting unless otherwise noted
Product Registration and Warranty
ARIES stands behind our products with
industry-leading warranties. To get copies
of the product warranties, register your
purchase or provide feedback, visit:
warranty.curtgroup.com/surveys
ARIESAUTOMOTIVE.COM

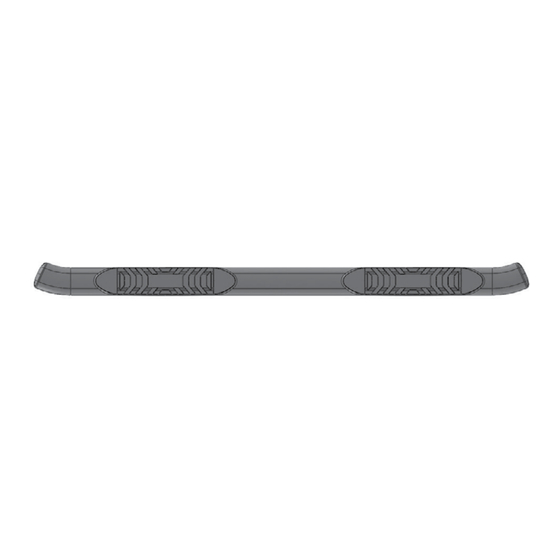

Product Photo
Passenger / right running board
Brackets and Hardware
NOTICE
Visit www.ariesautomotive.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
•
PRODUCT SUPPORT: 877.287.8634
Passenger / right rear
mounting brackets
Passenger / right front
mounting bracket
•
S222023-INS-RA
•
06/04/2024
S222023
Driver / left rear
mounting brackets
Driver / left front
mounting bracket
•
ECN11475
•
PAGE 1
Front
Advertisement
Related Manuals for Lippert Aries S222023
Summary of Contents for Lippert Aries S222023
- Page 1 INSTALLATION MANUAL S222023 Level of Difficulty Product Photo Easy Installation difficulty levels are based on time and effort involved and may vary depending on the installer level of expertise, condition of the vehicle and proper tools and equipment. Passenger / right running board Front Parts List Qty Description...
- Page 2 PROCEDURE: 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY. ASSISTANCE IS HIGHLY RECOMMENDED. 2. Starting on the Passenger/Right side of the vehicle and remove the plastic plugs or hex bolts from the factory mounting location along the bottom of the body, (Figures 1 & 4). 3.
- Page 3 Passenger/Right Side Installation Pictured (2) 8mm Hex Bolts (2) 8mm Lock Washers (2) 8mm Flat Washers Front (Fig 4) Passenger/Right center (2nd) (Fig 5) Attach (1) Passenger/Right Rear Mounting Bracket to the 2nd location (Fig 6) (1) Passenger/Right Rear Mounting Bracket attached to the 2nd location (Fig 7) (1) Passenger/Right Rear Mounting Bracket attached to the 3rd location...
