Control System

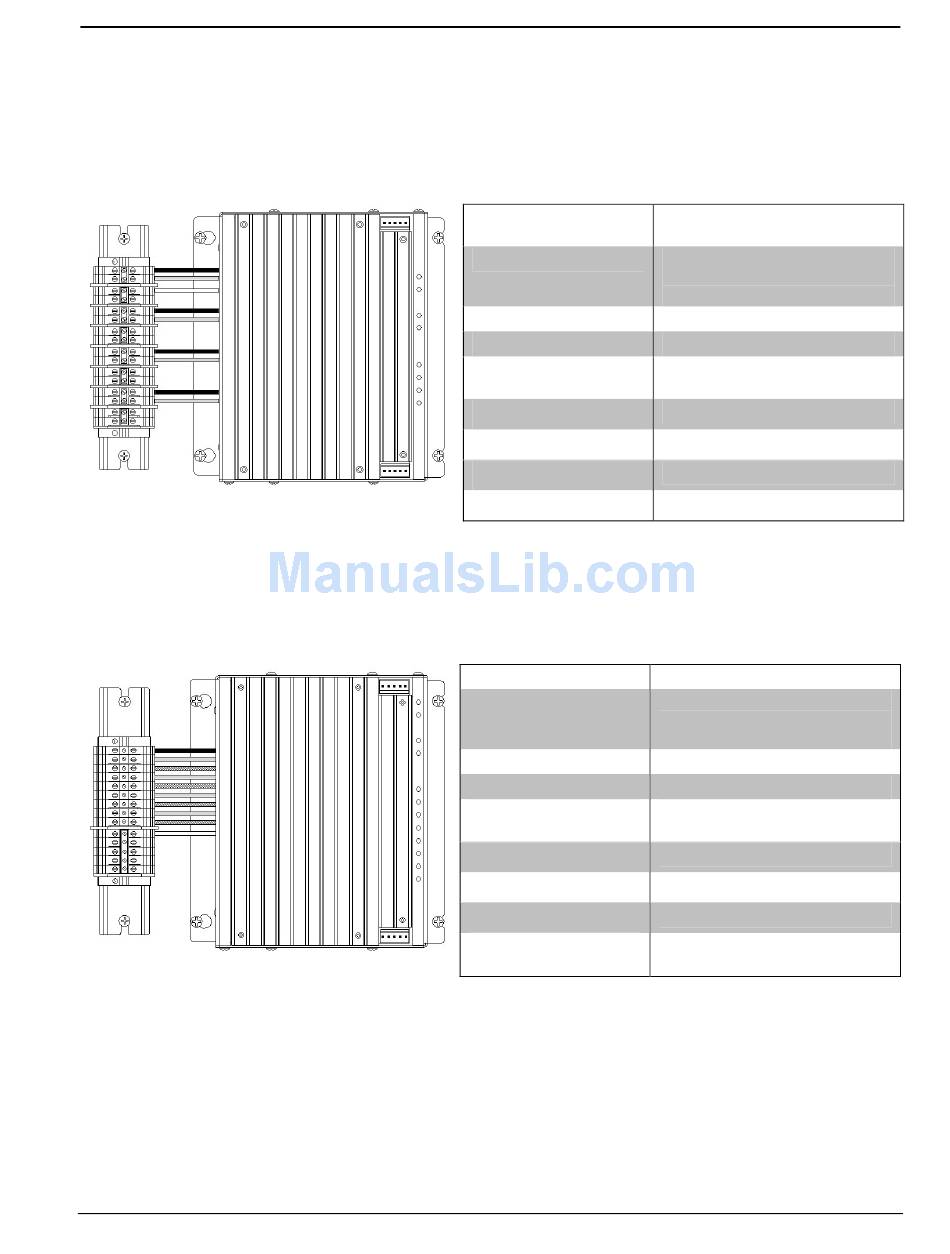

CLX-4HSW4 Module Specifications
CLX-1MC4 Module Specifications
10 • Lighting Control System Design
The CLX-4HSW4 switching module can switch four 16A lighting circuits as well as
½ HP (maximum) motors. Loads are switched on and off, but not dimmed. The
maximum load is four controlled circuits per module and 1920 watts (16A) per
controlled circuit (64A maximum total).
Load Type
Module Output
Heat Dissipation
Terminal Block
Input Voltage
Size (H x W x D)
Temperature Range
Humidity Range
Weight
The CLX-1MC4 controls up to four 10A (½ HP) maximum bi-directional motors.
High-voltage window treatment motor controls are assigned to CLX-1MC4. The
single input feed limits the total output of all eight controlled dimmer circuits to
1920 watts (16A).
Load Type
Module Output
Heat Dissipation
Terminal Block
Input Voltage
Size (H x W x D)
Temperature Range
Humidity Range
Weight
Crestron Lighting
INC, MLV, NCC and non-dim
fluorescent, non-dim H.I.D.
4 controlled circuits, 16A (1/2
HP) per controlled circuit, 64A
total
42 BTU maximum
CLT-4HSW4
Four 120 VAC 60 Hz, single-
phase (same phase)
7 3/8 x 6 7/8 x 3
32 – 104° F
10 – 90% RH (non condensing)
3 lbs.
3-wire bi-directional motors
4 controlled circuits,
10A (1/2 HP) per motor load (5A
each direction), 16A total
22 BTU/Hr
CLT-1MC4
120 VAC 60 Hz,
single-phase
7 3/8 x 6 7/8 x 3
32 – 104° F
10 – 90% RH (non condensing)
3 lbs.
