Crestron Lighting Design Design Manual page 22

Control System
Application
Incandescent and Tungsten
Halogen
Magnetic Low Voltage
18 • Lighting Control System Design
Derating
In a multi-gang installation, several dimmers are grouped in one horizontal wall box.
When this is the case, the inner heat sink section is removed to permit the installation
of a one-piece multi-gang wallplate. Removing the heat sink reduces the current
carrying capability of the dimmers due to reduced heat dissipation. The following
table provides the derating information for this application.
No Heat Sink Removed
– Single Unit
1000 W (800 W)
1000 VA / 750 W
(800 VA / 600 W)
For additional installation information, refer to the CLW-DIM, DIMS & SLVD
Installation Guide (Doc. 5995).

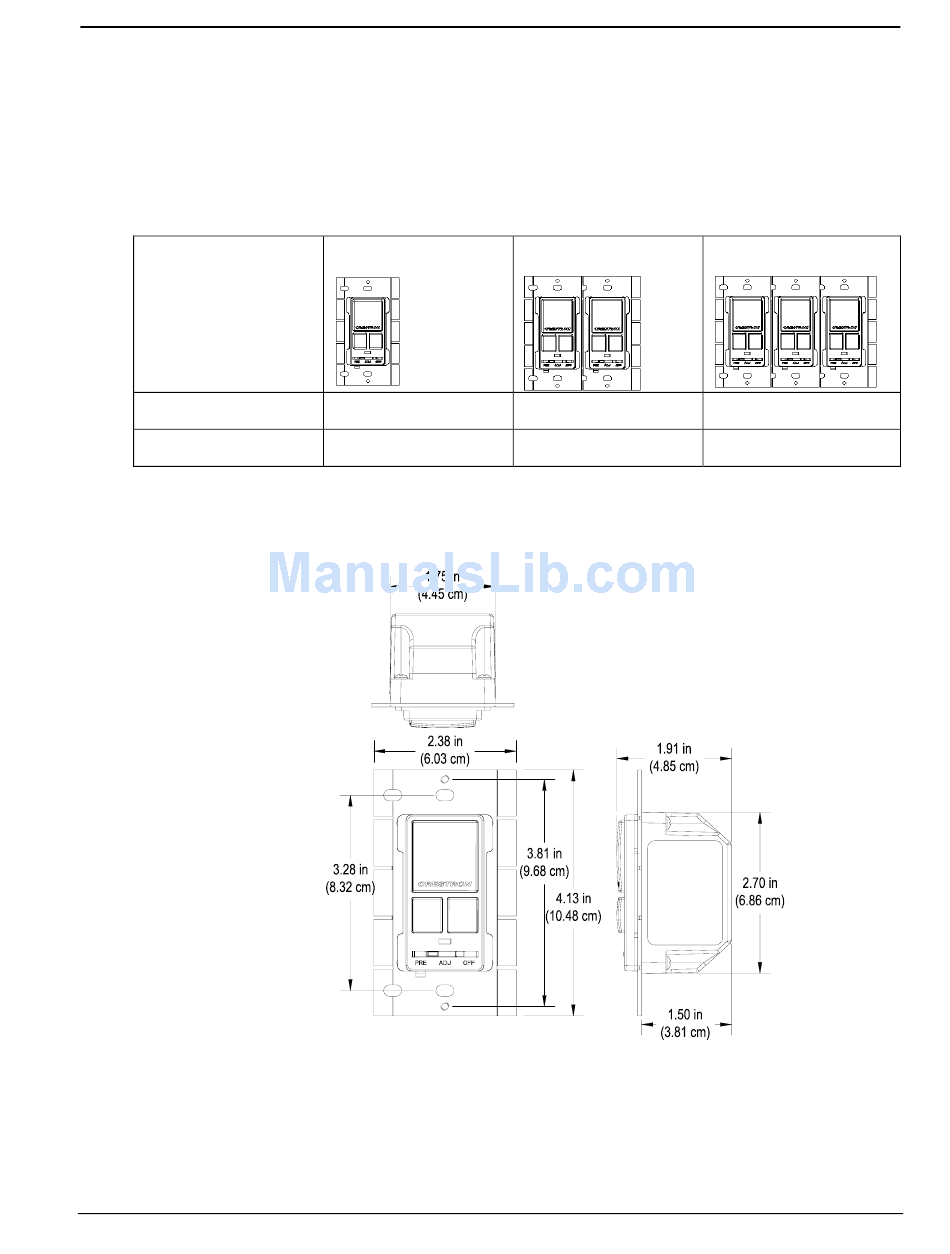

Physical View of CLW-DIM and CLW-DIMS (clockwise from top; Top, Side, and Front)
One Heat Sink Removed
– Two Gang
600 W (450 W)
600 VA / 450 W
(450VA / 300 W)
Design Guide – DOC. 5999A
Crestron Lighting
Both Heat Sinks Removed
– Three or more Gang
400 W (300 W)
400 VA / 300 W
(300 VA / 200 W)
