Control System
24 • Lighting Control System Design

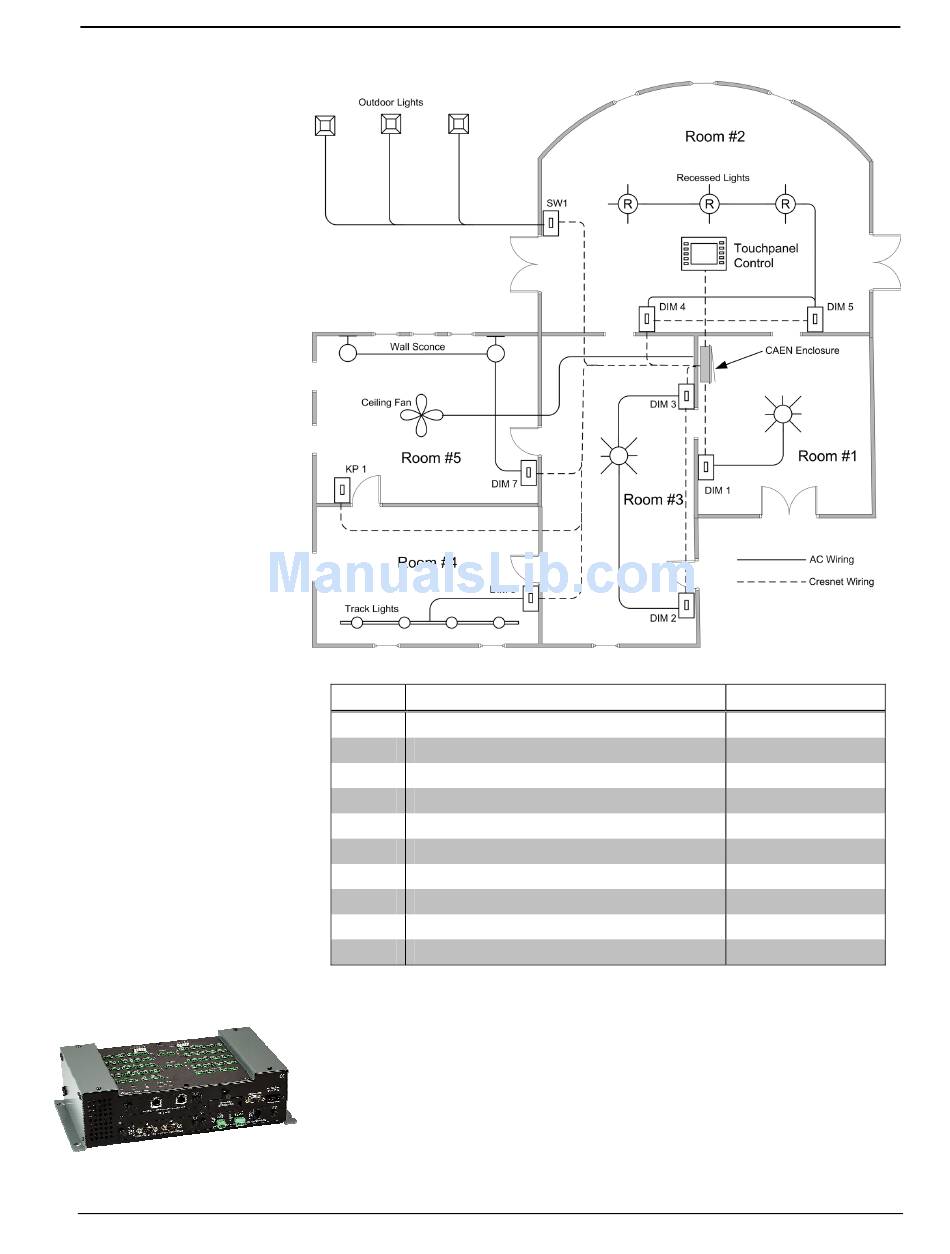

Wiring Plan Details
Location Device Type
Room 1 DIM1 – Wall dimmer – 100 Watts
Room 2 DIM4 – Wall dimmer – 150 Watts
Room 2 DIM5 – Wall dimmer – 150 Watts
Room 2 SW1 – Wall Box switch – Low voltage/outdoor
Room 2 Touchpanel
Room 3 DIM2 – Wall dimmer – 100 Watts
Room 3 DIM3 – Wall Dimmer – 100 Watts
Room 4 DIM6 – Wall dimmer – 200 Watts
Room 5 DIM7 – Wall dimmer – 120 Watts
Room 5 KP1 – Wall Keypad – Fan Motor Speed
Step 6: Control Processor
The PAC2 has been specifically designed for the Crestron automation enclosure and
the Crestron lighting system, although other Crestron processors can also be used.
The PAC2 can be placed in its own enclosure for simplification of low-voltage
wiring. The PAC2 occupies one module space in single-width enclosures and two
module spaces in double-width enclosures.
Crestron Lighting
Crestron Device
CLW-DIM
CLW-DIM
CLW-DIMS
CLW-SW
TPS-1000
CLW-DIM
CLW-DIMS
CLW-DIM
CLW-DIM
CLX-1FAN4
Design Guide – DOC. 5999A
