Crestron Lighting Design Design Manual page 13

Crestron Lighting

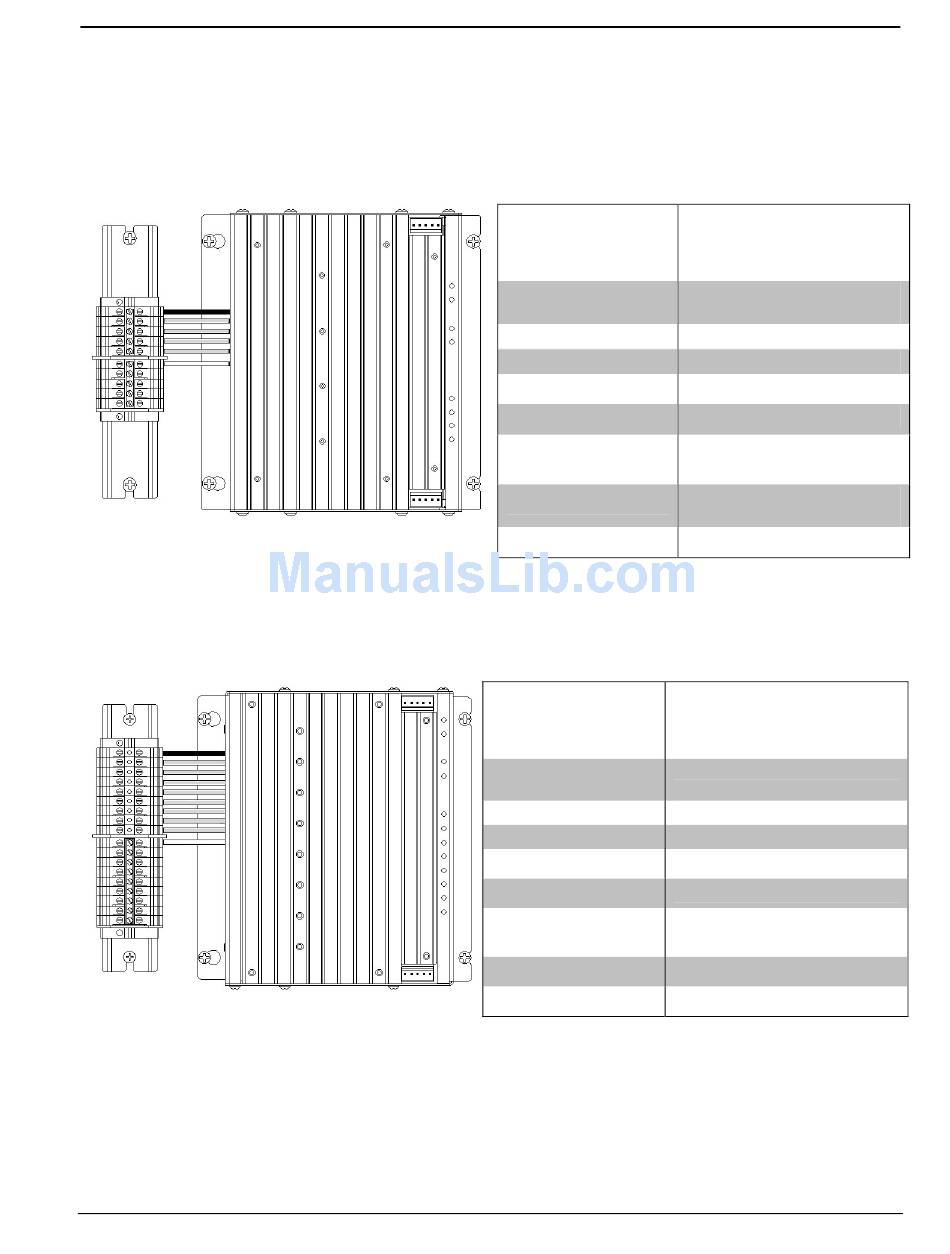

CLX-1DIM4 Module Specifications
CLX-1DIM8 Module Specifications
Design Guide – DOC. 5999A
CLX-1DIM4 is a workhorse module with one input feed and four controlled
dimmers. Ideal for a small mix of loads where some loads are 500W or more. The
single input feed limits the total output of all four controlled dimmer circuits to 1920
watts (16A).
CLX-1DIM8 is best used for multiple small incandescent loads. It is economical to
use only six or seven channels on the module with small loads, while leaving some
channels unconnected. The single input feed limits the total output of all eight
controlled dimmer circuits to 1920 watts (16A).
Load Type
Module Output
Heat Dissipation
Terminal Block
Input Voltage
Size (H x W x D)
Temperature
Range
Humidity Range
Weight
Load Type
Module Output
Heat Dissipation
Terminal Block
Input Voltage
Size (H x W x D)
Temperature
Range
Humidity Range
Weight
Incandescent, magnetic low-
voltage, neon and cold cathode
lighting, and 2-wire fluorescent
ballasts
8 controlled circuits, 16A per
controlled circuit, 16A total
101 BTU/Hr (with full load)
CLT-1DIM8
120 VAC 60 Hz, single-phase
7 3/8 x 6 7/8 x 3
32 – 104° F
10 – 90% RH (non condensing)
3 lbs.
Lighting Control System Design • 9
Control System
Incandescent, magnetic low-
voltage, neon and cold
cathode lighting, and 2-wire
fluorescent ballasts
4 controlled circuits,16A per
controlled circuit, 16A total
98 BTU/Hr (with full load)
CLT-1DIM4
120 VAC 60 Hz, single-phase
7 3/8 x 6 7/8 x 3
32 – 104° F
10 – 90% RH (non
condensing)
3 lbs.
