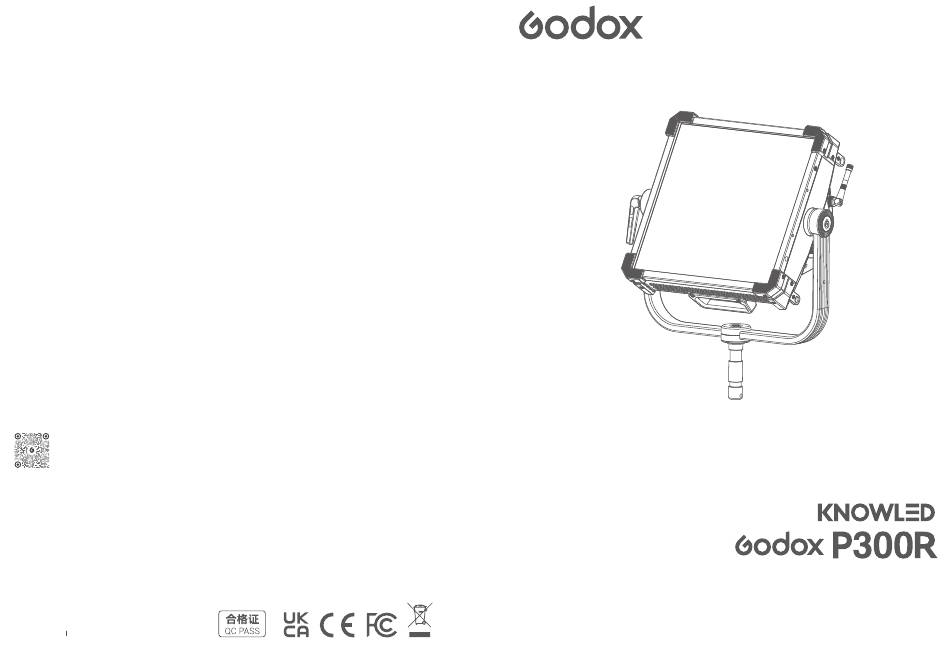

诺力LED影视面板灯

KNOWLED LED Light Panel

使用手册

Instruction Manual

Table of Contents

Need help?

Do you have a question about the KNOWLED P300R and is the answer not in the manual?

Questions and answers

Summary of Contents for Godox KNOWLED P300R

Page 1 Ofﬁcial Account 神牛微信公众号深圳市神牛摄影器材有限公司地址: 深圳市宝安区福海街道塘尾社区耀川工业区厂房2栋电话: 0755-29609320(8062) 传真: 0755-25723423 邮箱: godox@godox.com GODOX Photo Equipment Co.,Ltd. Add.: Building 2, Yaochuan Industrial Zone， Tangwei Community, Fuhai Street, Bao'an District, Shenzhen 518103, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 诺力LED影视面板灯 E-mail: godox@godox.com KNOWLED LED Light Panel 使用手册...
Page 2 长时间处于强光环境，如引起眼睛不适，请及时关闭灯具，暂停使用，请及时就医。前言倘灯珠损坏或因热变形，应停止使用，并及时联系制造商、服务代理商或合格的维修人员更换灯珠，以免发生意外。感谢您购买神牛产品。本产品仅适用于-20℃~50℃工作环境温度及正常湿度环境下使用。神牛全新推出一款诺力LED影视面板灯Godox P300R，输出高达300W，支持AC 100V-240V电压范请勿使用损坏的设备或设备配件，待专业维修人员检查维修，确认设备正常方可使用。围，适用于全球范围内的拍摄场景；拥有灯控一体、超高亮度、千分级亮度调节、 4 种调光曲线、在使用过程中，如果本产品由于跌落、受到挤压或遭受强烈冲击而造成外壳破裂的，请勿继续 1800K-10000K色温、 4种调色模式、 16类场景光效、多种无线控制等诸多特性；适用于大型摄影使用，以免因接触到内部电子元件而受到电击伤害。...
Page 3 部件名称 12 13 1. 吊环1 11. 显示屏 21. 挂绳装置 2. 吊环2 12. PRESET按键 22. U架 3. 吊环3 13. LOCK按键 23. 提手2 4. 吊环4 14. MENU按键 24. 支架柄 5. 散热孔 15. MODE按键 25. USB-A接口 6. 提手1 16. 调节旋钮 26. 天线 7. DMX IN接口 17.
Page 4 Godox P300R物料清单可另购附件离机遥控器 RC11、杆控U架P300RY02、四角柔光箱P300RS33、蜂巢P300RH30 八角柔光箱P300RO4、 4叶遮菲P300RB4 U架安装说明绑线绳 × 1 安全绳 × 1 交流电源线 × 1 灯体 × 1 天线 × 1 说明书 × 1 DMX实用表 × 1 P300R K1物料清单 1.先装一侧：灯具竖着摆放，将金属垫块和 2.另外一侧：将塑料垫块垫在灯具安装孔与塑料垫块分开放置在U架安装孔两侧，方向...
Page 5 安装柔光片连接以太网 CRMX CRMX CRMX 往前推动面板灯顶部两边的附件解锁推制，拿下灯具边框后顺着滑道将柔光片插入灯具，放好灯具边框后按下顶部两侧解锁推制保险按钮即可完成安装。以太网 CRMX 连接DMX控制台无线DMX连接 CRMX DMX连接 DMX连接 CRMX TX CRMX 以太网 DMX512 DMX连接 CRMX 注： DMX连接线需另购有线DMX连接 DMX连接 DMX连接注： DMX连接线需另购 DMX连接...
Page 6 开关机亮度： 0％~100％（以0.1％为增量）红光： 0％~100％ (以0.1％为增量) 25.0% 接通电源，拨动开关按键，实现开机（ON）或关机(OFF)。绿光： 0％~100％ (以0.1％为增量) 蓝光： 0％~100％ (以0.1％为增量) 25.0% 白光： 0％~100％ (以0.1％为增量) CCT模式 25.0% 短按MODE按键进入模式选择界面，旋转调节 25.0% 旋钮可选CC T模式,短按调节旋钮进入CC T模式。 10000 旋转调节旋钮可选亮度调节/色温调节/品红-绿调节，短按调节旋钮进入某项设置，左旋调节旋钮减少参数值，右旋调节旋钮增加参数值。 GEL模式...
Page 7 亮度： 0％~100％（以0.1％为增量） 2. 雷闪电 X坐标： 0.0000~0.8500 此光效模拟雷电的闪电，常用于营造一种紧张、亮度： 0％~100％（以0.1％为增量） Y坐标： 0.0000~0.9500 恐怖或神秘的氛围。开关：开启/关闭颜色温度或颜色空间： Gamut、 Rec.2020、通过旋转调节旋钮选择某项设置，短按调节旋色温： 1800K-10000K DCI-P3、 Rec.709、 Black Body 钮进入选项，根据需求旋转调节旋钮进行调触发：...
Page 8 7. 火 12. SOS 此光效模拟火焰的光线效果，常用于营造出一此光效模拟SOS求救信号的闪烁效果，常用于亮度： 0％~100％（以0.1％为增量）亮度： 0％~100％（以0.1％为增量）种明亮、热烈、闪烁氛围。营造危险、求救或紧急情况氛围。开关：开启/关闭开关：开启/关闭通过旋转调节旋钮选择某项设置，短按调节旋通过旋转调节旋钮选择某项设置，短按调节旋速度： 1-100 类型： CCT/HSI 钮进入选项，根据需求旋转调节旋钮进行调钮...
Page 9 1.DMX 16. 像素火短按调节旋钮进入DMX设置界面。旋转调节旋此光效模拟火焰的颜色和燃烧效果，与普通火亮度： 0％~100％（以0.1％为增量）钮选择地址/DMX模式/RDM状态/DMX丢失状光效相比,，具有呼吸感，常用于营造紧张、危开关：开启/关闭态/终止开关/增强通道。短按调节旋钮进入选险、热烈的氛围。色调：偏暖/中性/偏冷项设置，通过旋转调节旋钮完成选项设置。 DM模式 01：CCT 8 Bit 通过旋转调节旋钮选择某项设置，短按调节旋速度： 1-100 钮进入选项，根据需求旋转调节旋钮进行调节。...
Page 10 扫描下面二维码即可下载“Godox Light”手直接关闭灯具直接熄灭机app （安卓和苹果系统都可以使用）。保持最后状态2分钟熄灭失去DMX控制信号后，持续使用最后一次接收的DMX控制信号2 注：分钟， 2分钟后灯具熄灭。注：如2分钟内接收到有效DMX控制信 1.首个移动设备（手机或平板电脑）可直接使用app操控灯号，则使用新的DMX控制信号。体。更换其他移动设备时，灯体需进行蓝牙重置方可正常使用app。终止开关开启开启DMX终端 2. App需升级至V3.0以上版本。关闭关闭DMX终端 DMX增强通道开启开启增强通道信号关闭关闭增强通道信号注：使用DMX/RDM控制台控制灯具，可登录官网 https://www.godox.com.cn/ 下载DMX实用表。...
Page 11 4.以太网 5.Art-Net & sACN 短按调节旋钮进入以太网设置。进入界面后短按调节旋钮进入Art-Net&sACN协议设置。设置短按调节旋钮可设置网络模式，旋转调节旋旋转调节旋钮可选Art-Net&sACN/Art-Net sACN 钮可选DHCP/Art-Net 2.x/Art-Net 10.x/手 Net/Art-Net Sub-Net/Art-Net Port/Art-Net 动。设置完毕，短按MENU按键返回上一级。 Universe/sACN Universe，短按调节旋钮进入某项设置。设置完毕，短按MENU按键返回上一级。 6.调光曲线短按调节旋钮进入调光曲线设置。旋转调节旋钮选择线性、 S曲线、指数、对数。设置完毕，短按调节旋钮/短按MENU按键返回上一级。指数对数...
Page 12 界面可查看灯具固件版本及升级固件提短按调节旋钮进入风扇设置。旋转调节旋示。查看完毕，短按MEN U按键返回上一钮可选静音/自动/中速/高速。选择完毕，短级。按调节旋钮/MENU按键返回上一级。不同状态下灯体最大亮度值（％）升级详情风扇状态线性 S曲线指数对数 1.在官网（https://www.godox.com.cn/firmware-continuous-light）下载新固件到U盘上。静音 (关闭) 8.7％ 20％ 36.5％ 52.4％ 2.在关机状态下，将存有新固件的U盘插入USB-A接口。自动 100％ 100％ 100％ 100％...
Page 13 13.恢复出厂设置预存设置短按调节旋钮进入恢复出厂设置。旋转调短按PRESET按键进入预存灯具光效界面。旋节旋钮选择确定/取消，短按调节旋钮完成转调节旋钮选择1-20组预设，短按调节旋钮设置。恢复出厂设置，亮度值自动变为进入预设组设置，通过旋转调节旋钮可选应 100％。用/保存/取消，最后短按调节旋钮完成设置。恢复出厂设置完毕，短按PRESET按键退出预存设置。应用：应用该组预设光效。确定取消保存：保存当前灯具光效。取消：返回上一级。注：...
Page 14 First of all, as the most basic principle: This product is a professional lighting set equipment and should be used by professional lighting engineers or under the guidance of professionals. 型号 Godox P300R Basic safety attentions must always be followed during use, as follows: 供电...
Page 15: Main Features
Do not place equipment near flammable and volatile solvents such as alcohol and gasoline. Godox is proud to introduce our latest product, the KNOWLED LED Light Panel Godox P300R, Do not use accessories that are not recommended by our factory to avoid ﬁre, electric shock which outputs up to 300W and supports a voltage range of AC 100V-240V, making it suitable for or personal injury.
Page 16: Name Of Parts
Name of Parts 12 13 1. Ring 1 11. Display 21. Lanyard End 2. Ring 2 12. PRESET Button 22. Yoke 13. LOCK Button 23. Handle 2 3. Ring 3 4. Ring 4 14. MENU Button 24. Bracket Handle 5. Thermovent 15.
Page 17: Optional Accessories
What is Inside Godox P300R Optional Accessories Remove Controller RC11, P.O. Yoke P300RY02, KNOWLED Softbox 3'*3' P300RS33 Honeycomb P300RH30, KNOWLED Softbox Octa 4' P300RO4, Barndoor P300RB4 Installation Instructions for Yoke Light Body × 1 Antenna × 1 Tying Rope × 1 Safety Wire ×...
Page 18: Installing The Diffuser
Installing the Diffuser Connect to Ethernet CRMX CRMX CRMX Push the attachment locking pusher on both sides of the top of the panel light forward, and after removing the light frame, insert the diffuser into the ﬁxture along the track. Finally, press the safety Ethernet lock button on both sides of the top to complete the installation.
Page 19: Power Switch
RGBW Mode Power Switch Press the MODE button briefly to enter the To turn on or off the device, connect the power supply and toggle the power switch button to the mode selection interface. Rotate the select ‘ON’ position to turn it on or ‘OFF’ position to turn it off. 25.0% dial to select RGBW, and press the select dial briefly to enter the RGBW Mode.
Page 20 X-Y Mode 2. Lightning Press the MODE button briefly to enter the This light effect simulates the lightning of thunder, Brightness: 0%~100% (in increments of 0.1%) mode selection interface. Rotate the select dial often used to create a tense, terrifying, or On/Off: Turn the light on or off to select the X-Y Mode, and press the select mysterious atmosphere.
Page 21 5. TV 8. Firework This light effect simulates the lighting effect of a TV This light effect simulates the lighting effect of Brightness: 0%~100% (in increments of 0.1%) Brightness: 0%~100% (in increments of 0.1%) or screen and is often used to create a cold, ﬁrework and is often used to create a colorful, On/Off: Turn the light on or off On/Off: Turn the light on or off...
Page 22 11. Police Car 14. Party This lighting effect simulates the flashing lights of a This lighting effect simulates the effects of colorful Brightness: 0% to 100% (in increments of 0.1%) Brightness: 0% to 100% (in increments of 0.1%) police car and is commonly used to create a tense, lights, flash lights, and lasers, and is commonly On/Off: Turn the light on or off On/Off: Turn the light on or off...
Page 23: Menu Settings
Menu Settings 1. DMX Press the MENU button briefly to enter the Press the select dial briefly to enter the DMX menu settings. Rotate the select dial to choose settings interface. Rotate the dial to choose from from DMX, CRMX, Bluetooth, Network Settings, Address/DMX Mode/RDM Status/DMX Loss Art-Net &...
Page 24 DMX control signal. Download“GODOX Light”App Termination Turn on DMX terminal Scan the QR code to download the "Godox Turn off DMX terminal Light" smartphone app (can be used in Extended DMX Turn on extend DMX channels Android and iOS).
Page 25: Network Settings
4. Network Settings 5. Art-Net & sACN Press the select dial briefly to enter network Press the select dial briefly to enter Art-Net & Settings settings interface. Press the select dial briefly to sACN setting interface. Rotate the select dial to select network mode, then rotate to select select options among Art-Net&sACN, Art-Net sACN...
Page 26 Maximum brightness value of lamp body in the same state (%) Software Upgrade Fan State Linear S-curve Logarithmic Exponential 1. Download the new ﬁrmware to the U disk from ofﬁcial website (https://www.godox.com.cn/- Mute(off) 20％ 36.5％ 52.4％ 8.7％ ﬁrmware-continuous-light). Auto 100％...
Page 27: Maintenance
Fixture Info setting interface to check model, UID NO., Unauthorized service will void the warranty. Model： Godox P300R ﬁrmware version, light head temp., etc. Then, Maintenance of the light must be performed by our authorized maintenance department which can press the MENU button briefly to return to the UID: 085500004c58 provide original accessories.
Page 28: Technical Data
Maximum EIRP Power: 5dBm(BT)/5dBm(CRMX) Declaration of Conformity GODOX Photo Equipment Co.,Ltd. hereby declares that this equipment are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.For more information of DoC, Please click this web link: https://www.godox.com/eu-declaration-of-conformity/...
Page 29 产品保修不适用保修的情况尊敬的用户，本保修卡是申请保修服务的重要凭证，请您配合销售商填写并妥善保管，谢谢！如产品存在下列情况，本文件项下的保证和服务将不适用: ①产品或部件超过相应保修期； ②错误或不适当使用、维护或保管导致的故障或损坏，如：不当搬运；非按产品合理预期用途使用；不当插拨外接设备；跌落或外力挤压；接触或暴露于不适当温度、溶剂、酸碱、水浸或潮湿环境； ③由非产品信息型号产品条码神牛授权机构或人员安装、修理、更改、添加或拆卸造成的故障或损坏； ④产品或部件原有识别信姓名联系电话息被修改变更或除去； ⑤无有效保修卡； ⑥使用非合法授权、非标准或非公开发行的软件造成的故用户信息通信地址障或损坏；...
Page 30: Warranty
How to Get the Maintenance Service If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you Note: This form shall be sealed by the seller.
Page 31 Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and Godox After-sale Service Call +86-755-29609320(8062) software that beyond the warranty period or scope is not included in our maintenance scope.
